R75UI156050H3J KEMET
Hersteller: KEMET
Description: KEMET - R75UI156050H3J - Leistungs-Folienkondensator, Metallisiertes PP, Radiales Gehäuse, 2 Pins, 5600 pF, ± 5%
tariffCode: 85322500
Betriebstemperatur, max.: 125°C
Anschlussabstand: 15mm
Ausgang (kvar): -
productTraceability: Yes-Date/Lot Code
Betriebstemperatur, min.: -55°C
Produktlänge: 18mm
Produkthöhe: 12mm
Spannung (AC): 700V
Kapazitätstoleranz: ± 5%
hazardous: false
Kapazität: 5600pF
Typische Anwendungen: Hochfrequenz
Feuchtigkeitsklasse: GRADE II (Testbedingung A)
Produktpalette: R75H Series
usEccn: EAR99
Bauform / Gehäuse des Kondensators: Radiales Gehäuse, 2 Pins
Dielektrikum: Metallisiertes PP
Kondensatormontage: Durchsteckmontage
rohsCompliant: YES
SVHC: No SVHC (04-Feb-2026)
Kondensatoranschlüsse: Radial bedrahtet
dv/dt: 9.5kV/µs
Produktdurchmesser: -
Qualifikation: AEC-Q200
Spannung (DC): 2kV
Produktbreite: 6mm
Äquivalenter Serienwiderstand (ESR): 0.1421ohm
RMS-Strom Irms: 1.59A
Rippelstrom: -
Spitzenstrom: 53A
rohsPhthalatesCompliant: YES
isCanonical: Y
euEccn: NLR
Produktrezensionen
Produktbewertung abgeben
Technische Details R75UI156050H3J KEMET
Description: KEMET - R75UI156050H3J - Leistungs-Folienkondensator, Metallisiertes PP, Radiales Gehäuse, 2 Pins, 5600 pF, ± 5%, tariffCode: 85322500, Betriebstemperatur, max.: 125°C, Anschlussabstand: 15mm, Ausgang (kvar): -, productTraceability: Yes-Date/Lot Code, Betriebstemperatur, min.: -55°C, Produktlänge: 18mm, Produkthöhe: 12mm, Spannung (AC): 700V, Kapazitätstoleranz: ± 5%, hazardous: false, Kapazität: 5600pF, Typische Anwendungen: Hochfrequenz, Feuchtigkeitsklasse: GRADE II (Testbedingung A), Produktpalette: R75H Series, usEccn: EAR99, Bauform / Gehäuse des Kondensators: Radiales Gehäuse, 2 Pins, Dielektrikum: Metallisiertes PP, Kondensatormontage: Durchsteckmontage, rohsCompliant: YES, SVHC: No SVHC (04-Feb-2026), Kondensatoranschlüsse: Radial bedrahtet, dv/dt: 9.5kV/µs, Produktdurchmesser: -, Qualifikation: AEC-Q200, Spannung (DC): 2kV, Produktbreite: 6mm, Äquivalenter Serienwiderstand (ESR): 0.1421ohm, RMS-Strom Irms: 1.59A, Rippelstrom: -, Spitzenstrom: 53A, rohsPhthalatesCompliant: YES, isCanonical: Y, euEccn: NLR.
Weitere Produktangebote R75UI156050H3J nach Preis ab 0.36 EUR bis 28.37 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R75UI156050H3J | KEMET |
Film Capacitors 2k V 0.0056 uF 125C 5% 2 Pin LS=15 mm AEC-Q200 |
auf Bestellung 969 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
R75UI156050H3J | KEMET |
Description: CAP FILM 5600PF 5% 2KVDC RADIAL Size / Dimension: 0.709" L x 0.236" W (18.00mm x 6.00mm) ESR (Equivalent Series Resistance): 142 mOhms Capacitance: 5600 pF Height - Seated (Max): 0.476" (12.10mm) Voltage Rating - DC: 2000V (2kV) Voltage Rating - AC: 700V Dielectric Material: Polypropylene (PP), Metallized Ratings: AEC-Q200 Termination: PC Pins Lead Spacing: 0.591" (15.00mm) Applications: Automotive; High Frequency, Switching; High Pulse, DV/DT Operating Temperature: -55°C ~ 125°C Mounting Type: Through Hole Package / Case: Radial Tolerance: ±5% Packaging: Bulk |
auf Bestellung 1813 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
R75UI156050H3J | KEMET |
Category: THT Film Capacitors Description: Capacitor: polypropylene; R75; 5.6nF; 2kVDC; 700VAC; 18x6x12mm; THT Type of capacitor: polypropylene Capacitance: 5.6nF Operating voltage: 700V AC; 2kV DC Tolerance: ±5% Mounting: THT Operating temperature: -55...105°C Body dimensions: 18x6x12mm Conform to the norm: AEC-Q200 Lead length: 25mm Terminal pitch: 15mm Manufacturer series: R75 Pulse resistance: 9.5kV/μs Climate class: 55/105/56; IEC 60068-1 |
auf Bestellung 3 Stücke: Lieferzeit 14-21 Tag (e) |
|
| R75UI156050H3J |
|
Hersteller: KEMET
Film Capacitors 2k V 0.0056 uF 125C 5% 2 Pin LS=15 mm AEC-Q200
Film Capacitors 2k V 0.0056 uF 125C 5% 2 Pin LS=15 mm AEC-Q200
auf Bestellung 969 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 3+ | 1.23 EUR |
| 10+ | 0.58 EUR |
| 100+ | 0.52 EUR |
| 500+ | 0.49 EUR |
| 900+ | 0.38 EUR |
| 2700+ | 0.37 EUR |
| 5400+ | 0.36 EUR |
| R75UI156050H3J |
|
Hersteller: KEMET
Description: CAP FILM 5600PF 5% 2KVDC RADIAL
Size / Dimension: 0.709" L x 0.236" W (18.00mm x 6.00mm)
ESR (Equivalent Series Resistance): 142 mOhms
Capacitance: 5600 pF
Height - Seated (Max): 0.476" (12.10mm)
Voltage Rating - DC: 2000V (2kV)
Voltage Rating - AC: 700V
Dielectric Material: Polypropylene (PP), Metallized
Ratings: AEC-Q200
Termination: PC Pins
Lead Spacing: 0.591" (15.00mm)
Applications: Automotive; High Frequency, Switching; High Pulse, DV/DT
Operating Temperature: -55°C ~ 125°C
Mounting Type: Through Hole
Package / Case: Radial
Tolerance: ±5%
Packaging: Bulk
Description: CAP FILM 5600PF 5% 2KVDC RADIAL
Size / Dimension: 0.709" L x 0.236" W (18.00mm x 6.00mm)
ESR (Equivalent Series Resistance): 142 mOhms
Capacitance: 5600 pF
Height - Seated (Max): 0.476" (12.10mm)
Voltage Rating - DC: 2000V (2kV)
Voltage Rating - AC: 700V
Dielectric Material: Polypropylene (PP), Metallized
Ratings: AEC-Q200
Termination: PC Pins
Lead Spacing: 0.591" (15.00mm)
Applications: Automotive; High Frequency, Switching; High Pulse, DV/DT
Operating Temperature: -55°C ~ 125°C
Mounting Type: Through Hole
Package / Case: Radial
Tolerance: ±5%
Packaging: Bulk
auf Bestellung 1813 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 16+ | 1.32 EUR |
| 24+ | 0.88 EUR |
| 50+ | 0.7 EUR |
| 100+ | 0.63 EUR |
| 900+ | 0.49 EUR |
| 1800+ | 0.45 EUR |

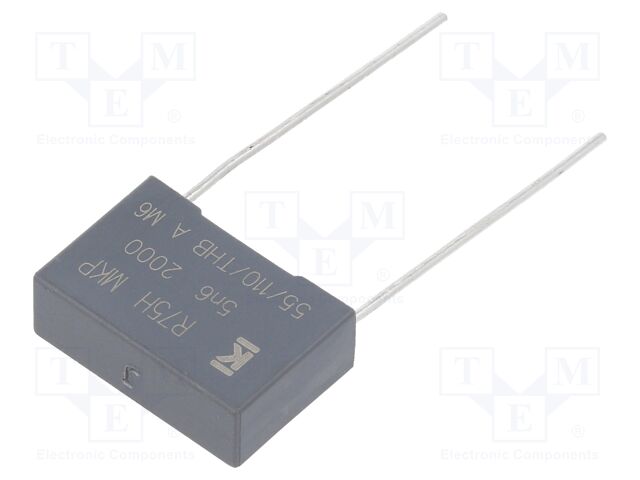

| R75UI156050H3J |
|
Hersteller: KEMET
Category: THT Film Capacitors
Description: Capacitor: polypropylene; R75; 5.6nF; 2kVDC; 700VAC; 18x6x12mm; THT
Type of capacitor: polypropylene
Capacitance: 5.6nF
Operating voltage: 700V AC; 2kV DC
Tolerance: ±5%
Mounting: THT
Operating temperature: -55...105°C
Body dimensions: 18x6x12mm
Conform to the norm: AEC-Q200
Lead length: 25mm
Terminal pitch: 15mm
Manufacturer series: R75
Pulse resistance: 9.5kV/μs
Climate class: 55/105/56; IEC 60068-1
Category: THT Film Capacitors
Description: Capacitor: polypropylene; R75; 5.6nF; 2kVDC; 700VAC; 18x6x12mm; THT
Type of capacitor: polypropylene
Capacitance: 5.6nF
Operating voltage: 700V AC; 2kV DC
Tolerance: ±5%
Mounting: THT
Operating temperature: -55...105°C
Body dimensions: 18x6x12mm
Conform to the norm: AEC-Q200
Lead length: 25mm
Terminal pitch: 15mm
Manufacturer series: R75
Pulse resistance: 9.5kV/μs
Climate class: 55/105/56; IEC 60068-1
auf Bestellung 3 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 3+ | 28.37 EUR |
