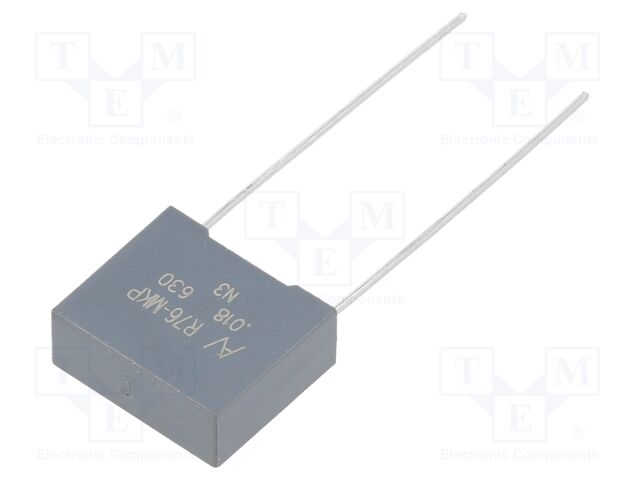

R76PF21805050J KEMET
Hersteller: KEMET
Category: THT Film Capacitors
Description: Capacitor: polypropylene; 0.018uF; ESR: 42.44mΩ; THT; ±5%; 2.612A
Type of capacitor: polypropylene
Capacitance: 18nF
Tolerance: ±5%
Mounting: THT
Terminal pitch: 10mm
Operating temperature: -55...110°C
Manufacturer series: R76
Body dimensions: 13x11x5mm
Lead length: 25mm
Max. operating voltage: 400V AC; 630V DC
Kind of material: flame retardant
Pulse resistance: 4kV/μs
Climate class: 55/105/56; IEC 60068-1
Flammability rating: UL94V-0
Max. operating current: 2.612A
ESR value: 42.44mΩ
Anzahl je Verpackung: 1 Stücke
Category: THT Film Capacitors
Description: Capacitor: polypropylene; 0.018uF; ESR: 42.44mΩ; THT; ±5%; 2.612A
Type of capacitor: polypropylene
Capacitance: 18nF
Tolerance: ±5%
Mounting: THT
Terminal pitch: 10mm
Operating temperature: -55...110°C
Manufacturer series: R76
Body dimensions: 13x11x5mm
Lead length: 25mm
Max. operating voltage: 400V AC; 630V DC
Kind of material: flame retardant
Pulse resistance: 4kV/μs
Climate class: 55/105/56; IEC 60068-1
Flammability rating: UL94V-0
Max. operating current: 2.612A
ESR value: 42.44mΩ
Anzahl je Verpackung: 1 Stücke
auf Bestellung 103 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
103+ | 0.7 EUR |
250+ | 0.29 EUR |
1500+ | 0.17 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details R76PF21805050J KEMET
Description: KEMET - R76PF21805050J - Leistungs-Folienkondensator, Doppelt metallisiertes PP, Radiales Gehäuse, 2 Pins, 18000 pF, ± 5%, tariffCode: 85322500, Produkthöhe: 11mm, Bauform / Gehäuse des Kondensators: Radiales Gehäuse, 2 Pins, dv/dt: 4kV/µs, rohsCompliant: YES, Typische Anwendungen: Hochfrequenz, Anschlussabstand: 10mm, hazardous: false, rohsPhthalatesCompliant: YES, Kapazitätstoleranz: ± 5%, Kondensatormontage: Durchsteckmontage, Qualifikation: AEC-Q200, usEccn: EAR99, Betriebstemperatur, min.: -55°C, Ausgang (kvar): -, RMS-Strom Irms: 2.9A, Äquivalenter Serienwiderstand (ESR): 0.035ohm, Produktlänge: 13mm, euEccn: NLR, Spitzenstrom: 72A, Dielektrikum: Doppelt metallisiertes PP, Spannung (AC): 400V, Kapazität: 18000pF, Spannung (DC): 630V, Rippelstrom: -, Produktpalette: R76 Series, productTraceability: No, Produktdurchmesser: -, Betriebstemperatur, max.: 110°C, Feuchtigkeitsklasse: GRADE II (Testbedingung A), Produktbreite: 5mm, SVHC: No SVHC (14-Jun-2023).
Weitere Produktangebote R76PF21805050J nach Preis ab 0.23 EUR bis 1.02 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
R76PF21805050J | Hersteller : KEMET |
Category: THT Film Capacitors Description: Capacitor: polypropylene; 0.018uF; ESR: 42.44mΩ; THT; ±5%; 2.612A Type of capacitor: polypropylene Capacitance: 18nF Tolerance: ±5% Mounting: THT Terminal pitch: 10mm Operating temperature: -55...110°C Manufacturer series: R76 Body dimensions: 13x11x5mm Lead length: 25mm Max. operating voltage: 400V AC; 630V DC Kind of material: flame retardant Pulse resistance: 4kV/μs Climate class: 55/105/56; IEC 60068-1 Flammability rating: UL94V-0 Max. operating current: 2.612A ESR value: 42.44mΩ |
auf Bestellung 103 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
R76PF21805050J | Hersteller : KEMET | Film Capacitors 0.018 uF 5% 400 VAC 630 VDC |
auf Bestellung 4320 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||||
R76PF21805050J | Hersteller : KEMET |
Description: FILM, RADIAL, PULSE, DOUBLE META Packaging: Bulk Tolerance: ±5% Package / Case: Radial Mounting Type: Through Hole Operating Temperature: -55°C ~ 110°C Applications: Automotive; High Frequency, Switching; High Pulse, DV/DT Lead Spacing: 0.394" (10.00mm) Termination: PC Pins Ratings: AEC-Q200 Dielectric Material: Polypropylene (PP), Metallized Voltage Rating - AC: 400V Voltage Rating - DC: 630V Height - Seated (Max): 0.437" (11.10mm) Part Status: Active Capacitance: 0.018 µF ESR (Equivalent Series Resistance): 35 mOhms Size / Dimension: 0.512" L x 0.197" W (13.00mm x 5.00mm) |
auf Bestellung 1003 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||||
R76PF21805050J | Hersteller : KEMET |
Description: KEMET - R76PF21805050J - Leistungs-Folienkondensator, Doppelt metallisiertes PP, Radiales Gehäuse, 2 Pins, 18000 pF, ± 5% tariffCode: 85322500 Produkthöhe: 11mm Bauform / Gehäuse des Kondensators: Radiales Gehäuse, 2 Pins dv/dt: 4kV/µs rohsCompliant: YES Typische Anwendungen: Hochfrequenz Anschlussabstand: 10mm hazardous: false rohsPhthalatesCompliant: YES Kapazitätstoleranz: ± 5% Kondensatormontage: Durchsteckmontage Qualifikation: AEC-Q200 usEccn: EAR99 Betriebstemperatur, min.: -55°C Ausgang (kvar): - RMS-Strom Irms: 2.9A Äquivalenter Serienwiderstand (ESR): 0.035ohm Produktlänge: 13mm euEccn: NLR Spitzenstrom: 72A Dielektrikum: Doppelt metallisiertes PP Spannung (AC): 400V Kapazität: 18000pF Spannung (DC): 630V Rippelstrom: - Produktpalette: R76 Series productTraceability: No Produktdurchmesser: - Betriebstemperatur, max.: 110°C Feuchtigkeitsklasse: GRADE II (Testbedingung A) Produktbreite: 5mm SVHC: No SVHC (14-Jun-2023) |
auf Bestellung 1332 Stücke: Lieferzeit 14-21 Tag (e) |
