R76TN222050H3J

R76TN222050H3J KEMET


KEM_F3118_R76_125C.pdf Hersteller: KEMET
Category: THT Film Capacitors

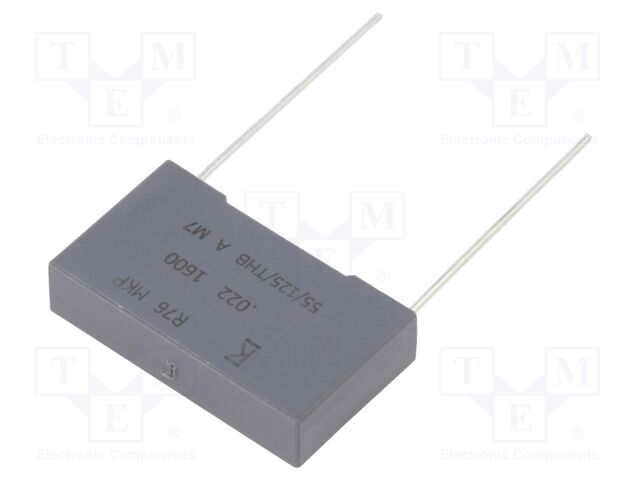

Description: Capacitor: polypropylene; R76; 22nF; 1600VDC; 650VAC; 26.5x6x15mm
Type of capacitor: polypropylene
Manufacturer series: R76
Capacitance: 22nF
Max. operating voltage: 650V AC; 1.6kV DC
Body dimensions: 26.5x6x15mm
Mounting: THT
Tolerance: ±5%
Terminal pitch: 22.5mm
Climate class: 55/105/56; IEC 60068-1
Pulse resistance: 3kV/μs
Lead length: 25mm
Conform to the norm: AEC-Q200
Flammability rating: UL94V-0
Kind of material: flame retardant
Operating temperature: -55...125°C
Anzahl je Verpackung: 1 Stücke
auf Bestellung 488 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
65+1.12 EUR
101+0.71 EUR
157+0.46 EUR
166+0.43 EUR
1000+0.42 EUR
2500+0.41 EUR
Mindestbestellmenge: 65
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details R76TN222050H3J KEMET

Description: KEMET - R76TN222050H3J - Leistungs-Folienkondensator, Doppelt metallisiertes PP, Radiales Gehäuse, 2 Pins, 0.022 µF, ± 5%, tariffCode: 85322500, Produkthöhe: 15mm, Bauform / Gehäuse des Kondensators: Radiales Gehäuse, 2 Pins, dv/dt: 3kV/µs, rohsCompliant: YES, Typische Anwendungen: Hochfrequenz, Anschlussabstand: 22.5mm, hazardous: false, rohsPhthalatesCompliant: YES, Kapazitätstoleranz: 5%, Kondensatormontage: Durchsteckmontage, Qualifikation: AEC-Q200, usEccn: EAR99, Betriebstemperatur, min.: -55°C, Ausgang (kvar): -, RMS-Strom Irms: 4A, Äquivalenter Serienwiderstand (ESR): 0.029ohm, Produktlänge: 26.5mm, euEccn: NLR, Spitzenstrom: 66A, Dielektrikum: Doppelt metallisiertes PP, Spannung (AC): 650V, Kapazität: 22000pF, Spannung (DC): 1.6kV, Rippelstrom: -, Produktpalette: R76H Series, productTraceability: No, Produktdurchmesser: -, Kondensatoranschlüsse: Radial bedrahtet, Betriebstemperatur, max.: 125°C, Feuchtigkeitsklasse: GRADE II (Testbedingung A), Produktbreite: 6mm, SVHC: No SVHC (07-Nov-2024).

Weitere Produktangebote R76TN222050H3J nach Preis ab 0.43 EUR bis 1.72 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
R76TN222050H3J R76TN222050H3J Hersteller : KEMET KEM_F3118_R76_125C.pdf Category: THT Film Capacitors
Description: Capacitor: polypropylene; R76; 22nF; 1600VDC; 650VAC; 26.5x6x15mm
Type of capacitor: polypropylene
Manufacturer series: R76
Capacitance: 22nF
Max. operating voltage: 650V AC; 1.6kV DC
Body dimensions: 26.5x6x15mm
Mounting: THT
Tolerance: ±5%
Terminal pitch: 22.5mm
Climate class: 55/105/56; IEC 60068-1
Pulse resistance: 3kV/μs
Lead length: 25mm
Conform to the norm: AEC-Q200
Flammability rating: UL94V-0
Kind of material: flame retardant
Operating temperature: -55...125°C
auf Bestellung 488 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
65+1.12 EUR
101+0.71 EUR
157+0.46 EUR
166+0.43 EUR
Mindestbestellmenge: 65
Im Einkaufswagen  Stück im Wert von  UAH
R76TN222050H3J R76TN222050H3J Hersteller : KEMET R76TN222050H3J Description: CAP FILM 0.022UF 5% 1.6KVDC RAD
Tolerance: ±5%
Packaging: Bulk
Package / Case: Radial
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 125°C
Applications: Automotive; High Frequency, Switching; High Pulse, DV/DT
Termination: PC Pins
Ratings: AEC-Q200
Dielectric Material: Polypropylene (PP), Metallized
Voltage Rating - AC: 650V
Voltage Rating - DC: 1600V (1.6kV)
Height - Seated (Max): 0.594" (15.10mm)
Part Status: Active
Capacitance: 0.022 µF
ESR (Equivalent Series Resistance): 29 mOhms
Size / Dimension: 1.043" L x 0.236" W (26.50mm x 6.00mm)
auf Bestellung 1019 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
12+1.51 EUR
16+1.10 EUR
50+0.96 EUR
100+0.78 EUR
500+0.64 EUR
1000+0.55 EUR
Mindestbestellmenge: 12
Im Einkaufswagen  Stück im Wert von  UAH
R76TN222050H3J R76TN222050H3J Hersteller : KEMET KEM_F3118_R76H-3316876.pdf Film Capacitors 1600V 0.022uF 5% LS=22.5mm
auf Bestellung 421 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
2+1.72 EUR
10+0.94 EUR
100+0.85 EUR
500+0.71 EUR
1000+0.64 EUR
2500+0.61 EUR
5000+0.58 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
R76TN222050H3J R76TN222050H3J Hersteller : KEMET R76TN222050H3J Description: KEMET - R76TN222050H3J - Leistungs-Folienkondensator, Doppelt metallisiertes PP, Radiales Gehäuse, 2 Pins, 0.022 µF, ± 5%
tariffCode: 85322500
Produkthöhe: 15mm
Bauform / Gehäuse des Kondensators: Radiales Gehäuse, 2 Pins
dv/dt: 3kV/µs
rohsCompliant: YES
Typische Anwendungen: Hochfrequenz
Anschlussabstand: 22.5mm
hazardous: false
rohsPhthalatesCompliant: YES
Kapazitätstoleranz: 5%
Kondensatormontage: Durchsteckmontage
Qualifikation: AEC-Q200
usEccn: EAR99
Betriebstemperatur, min.: -55°C
Ausgang (kvar): -
RMS-Strom Irms: 4A
Äquivalenter Serienwiderstand (ESR): 0.029ohm
Produktlänge: 26.5mm
euEccn: NLR
Spitzenstrom: 66A
Dielektrikum: Doppelt metallisiertes PP
Spannung (AC): 650V
Kapazität: 22000pF
Spannung (DC): 1.6kV
Rippelstrom: -
Produktpalette: R76H Series
productTraceability: No
Produktdurchmesser: -
Kondensatoranschlüsse: Radial bedrahtet
Betriebstemperatur, max.: 125°C
Feuchtigkeitsklasse: GRADE II (Testbedingung A)
Produktbreite: 6mm
SVHC: No SVHC (07-Nov-2024)
auf Bestellung 159 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
R76TN222050H3J R76TN222050H3J Hersteller : KEMET kem_f3118_r76h.pdf Cap Film 0.022uF 1600V PP 5%( 26.5 X 6 X 15mm) Radial Plastic Rectangular Can 22.5mm 0.029 Ohm 110C Bag Automotive AEC-Q200
