Produkte > E-SWITCH > RD11131121
RD11131121

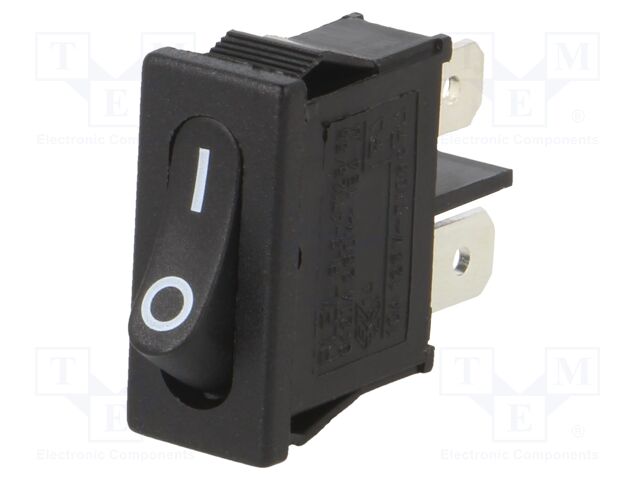

RD11131121 E-SWITCH


pVersion=0046&contRep=ZT&docId=005056AB281E1EDD948CA4BAD26480D3&compId=RD11131121.pdf?ci_sign=73f6f37def3a361b1bef4cc5a1380781f340ff25 Hersteller: E-SWITCH
Category: Rocker Switches
Description: ROCKER; SPST; Pos: 2; OFF-ON; 6A/250VAC; black; RD1; Rcont max: 35mΩ
Type of switch: ROCKER
Contacts configuration: SPST
Number of positions: 2
Stable positions number: 2
Switching method: OFF-ON
AC contacts rating @R: 6A / 250V AC
Manufacturer series: RD1
Max. contact resistance:: 35mΩ
Operating temperature: -20...125°C
Leads: connectors
Mounting hole diameter: 19.2x6.8mm
Button marking: O-I
Min. insulation resistance: 0.1GΩ
Actuator colour: black
Mounting: on panel
Body dimensions: 21x9.6x17.5mm
Electrical life: 10000 cycles
Anzahl je Verpackung: 1 Stücke
auf Bestellung 75 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
72+1 EUR
75+0.96 EUR
3000+0.64 EUR
Mindestbestellmenge: 72
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details RD11131121 E-SWITCH

Category: Rocker Switches, Description: ROCKER; SPST; Pos: 2; OFF-ON; 6A/250VAC; black; RD1; Rcont max: 35mΩ, Type of switch: ROCKER, Contacts configuration: SPST, Number of positions: 2, Stable positions number: 2, Switching method: OFF-ON, AC contacts rating @R: 6A / 250V AC, Manufacturer series: RD1, Max. contact resistance:: 35mΩ, Operating temperature: -20...125°C, Leads: connectors, Mounting hole diameter: 19.2x6.8mm, Button marking: O-I, Min. insulation resistance: 0.1GΩ, Actuator colour: black, Mounting: on panel, Body dimensions: 21x9.6x17.5mm, Electrical life: 10000 cycles, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote RD11131121 nach Preis ab 0.73 EUR bis 1.39 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
RD11131121 RD11131121 Hersteller : E-SWITCH pVersion=0046&contRep=ZT&docId=005056AB281E1EDD948CA4BAD26480D3&compId=RD11131121.pdf?ci_sign=73f6f37def3a361b1bef4cc5a1380781f340ff25 Category: Rocker Switches
Description: ROCKER; SPST; Pos: 2; OFF-ON; 6A/250VAC; black; RD1; Rcont max: 35mΩ
Type of switch: ROCKER
Contacts configuration: SPST
Number of positions: 2
Stable positions number: 2
Switching method: OFF-ON
AC contacts rating @R: 6A / 250V AC
Manufacturer series: RD1
Max. contact resistance:: 35mΩ
Operating temperature: -20...125°C
Leads: connectors
Mounting hole diameter: 19.2x6.8mm
Button marking: O-I
Min. insulation resistance: 0.1GΩ
Actuator colour: black
Mounting: on panel
Body dimensions: 21x9.6x17.5mm
Electrical life: 10000 cycles
auf Bestellung 75 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
72+1 EUR
75+0.96 EUR
Mindestbestellmenge: 72
Im Einkaufswagen  Stück im Wert von  UAH
RD11131121 RD11131121 Hersteller : E-Switch RD11131121-3457877.pdf Rocker Switches 10A 125VAC 4.8mm Tab Off-On Black/Black
auf Bestellung 4500 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
3+1.32 EUR
10+1.06 EUR
100+0.88 EUR
600+0.87 EUR
1000+0.84 EUR
2600+0.81 EUR
5000+0.8 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
RD11131121 RD11131121 Hersteller : E-Switch RD1.pdf Description: SWITCH ROCKER SPST 10A 125V
Packaging: Bulk
Current Rating (Amps): 10A (AC)
Mounting Type: Panel Mount, Snap-In
Circuit: SPST
Switch Function: On-Off
Operating Temperature: -20°C ~ 105°C
Termination Style: Quick Connect - 0.187" (4.7mm)
Actuator Type: Concave (Curved)
Approval Agency: cULus, UL
Panel Cutout Dimensions: Rectangular - 19.20mm x 6.80mm
Color - Actuator/Cap: Black
Actuator Marking: O -
Voltage Rating - AC: 125 V
auf Bestellung 6332 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
13+1.39 EUR
15+1.21 EUR
25+1.14 EUR
50+1.09 EUR
200+1 EUR
400+0.95 EUR
600+0.93 EUR
1000+0.9 EUR
Mindestbestellmenge: 13
Im Einkaufswagen  Stück im Wert von  UAH
RD11131121 Hersteller : E-Switch RD1.pdf Switch Rocker OFF ON SPST Quick Connect Curved Rocker 10A 250VAC
auf Bestellung 4000 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
200+0.93 EUR
600+0.87 EUR
1000+0.81 EUR
2600+0.73 EUR
Mindestbestellmenge: 200
Im Einkaufswagen  Stück im Wert von  UAH
