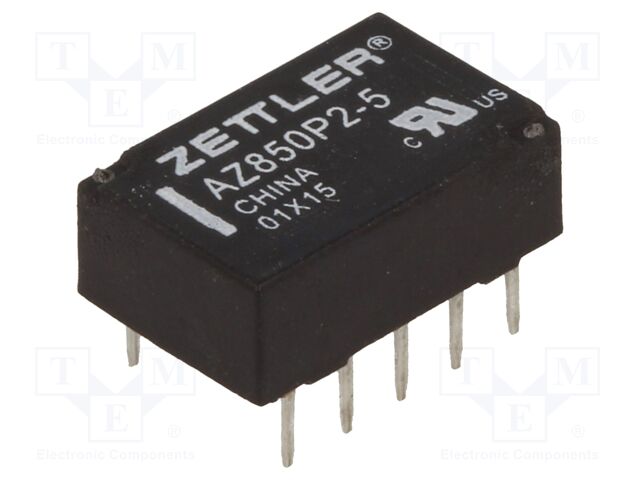

AZ850P2-5 ZETTLER
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; PCB
Mounting: PCB
Case: DIP10
Operating temperature: -55...90°C
Terminal pitch: 2.54mm
Soldering temperature: 250°C
Body dimensions: 14x9x5mm
Coil resistance: 125Ω
Contacts configuration: DPDT
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Type of relay: electromagnetic
Relay variant: bistable; subminiature
Relay series: AZ850
Rated coil voltage: 5V DC
Coil voltage min.: 3.75V DC
Coil voltage max.: 10V DC
Coil power consumption: 169mW
Operate time: 2ms
Release time: 2ms
Switched voltage: max. 220V DC; max. 250V AC
Contact current max.: 1A
Switching capacity: 30W; 50VA
Contact resistance: 70mΩ
Design: two coils
Mechanical durability: 100000000 cycles
Test voltage: 1.5kV
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; PCB
Mounting: PCB
Case: DIP10
Operating temperature: -55...90°C
Terminal pitch: 2.54mm
Soldering temperature: 250°C
Body dimensions: 14x9x5mm
Coil resistance: 125Ω
Contacts configuration: DPDT
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Type of relay: electromagnetic
Relay variant: bistable; subminiature
Relay series: AZ850
Rated coil voltage: 5V DC
Coil voltage min.: 3.75V DC
Coil voltage max.: 10V DC
Coil power consumption: 169mW
Operate time: 2ms
Release time: 2ms
Switched voltage: max. 220V DC; max. 250V AC
Contact current max.: 1A
Switching capacity: 30W; 50VA
Contact resistance: 70mΩ
Design: two coils
Mechanical durability: 100000000 cycles
Test voltage: 1.5kV
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1900 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
25+ | 2.89 EUR |
29+ | 2.5 EUR |
42+ | 1.73 EUR |
44+ | 1.64 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details AZ850P2-5 ZETTLER
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; PCB, Mounting: PCB, Case: DIP10, Operating temperature: -55...90°C, Terminal pitch: 2.54mm, Soldering temperature: 250°C, Body dimensions: 14x9x5mm, Coil resistance: 125Ω, Contacts configuration: DPDT, AC contacts rating @R: 0.5A / 125V AC, DC contacts rating @R: 1A / 30V DC, Type of relay: electromagnetic, Relay variant: bistable; subminiature, Relay series: AZ850, Rated coil voltage: 5V DC, Coil voltage min.: 3.75V DC, Coil voltage max.: 10V DC, Coil power consumption: 169mW, Operate time: 2ms, Release time: 2ms, Switched voltage: max. 220V DC; max. 250V AC, Contact current max.: 1A, Switching capacity: 30W; 50VA, Contact resistance: 70mΩ, Design: two coils, Mechanical durability: 100000000 cycles, Test voltage: 1.5kV, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote AZ850P2-5 nach Preis ab 1.64 EUR bis 3.89 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AZ850P2-5 | Hersteller : ZETTLER |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; PCB Mounting: PCB Case: DIP10 Operating temperature: -55...90°C Terminal pitch: 2.54mm Soldering temperature: 250°C Body dimensions: 14x9x5mm Coil resistance: 125Ω Contacts configuration: DPDT AC contacts rating @R: 0.5A / 125V AC DC contacts rating @R: 1A / 30V DC Type of relay: electromagnetic Relay variant: bistable; subminiature Relay series: AZ850 Rated coil voltage: 5V DC Coil voltage min.: 3.75V DC Coil voltage max.: 10V DC Coil power consumption: 169mW Operate time: 2ms Release time: 2ms Switched voltage: max. 220V DC; max. 250V AC Contact current max.: 1A Switching capacity: 30W; 50VA Contact resistance: 70mΩ Design: two coils Mechanical durability: 100000000 cycles Test voltage: 1.5kV |
auf Bestellung 1900 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||
AZ850P2-5 | Hersteller : Zettler Components Company | Signal Relay 5VDC 1A DPDT(14x9x5)mm THT |
auf Bestellung 1902 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||
Relais AZ850P2-5 Produktcode: 33661 |
Relais Relaistyp: Relais |
Produkt ist nicht verfügbar
|
|||||||||||||||||
AZ850P2-5 | Hersteller : American Zettler |
Description: RELAY GENERAL PURPOSE DPDT 1A 5V Packaging: Box Mounting Type: Through Hole Coil Voltage: 5VDC Operating Temperature: -40°C ~ 70°C Termination Style: PC Pin Relay Type: General Purpose Coil Current: 40 mA Coil Type: Latching, Dual Coil Seal Rating: Sealed - Fully Contact Material: Silver Palladium (AgPd), Gold (Au) Contact Form: DPDT (2 Form C) Contact Rating (Current): 1 A Switching Voltage: 250VAC, 220VDC - Max Must Release Voltage: 0.5 VDC Must Operate Voltage: 3.8 VDC Operate Time: 2 ms Release Time: 1 ms Part Status: Active |
Produkt ist nicht verfügbar |
