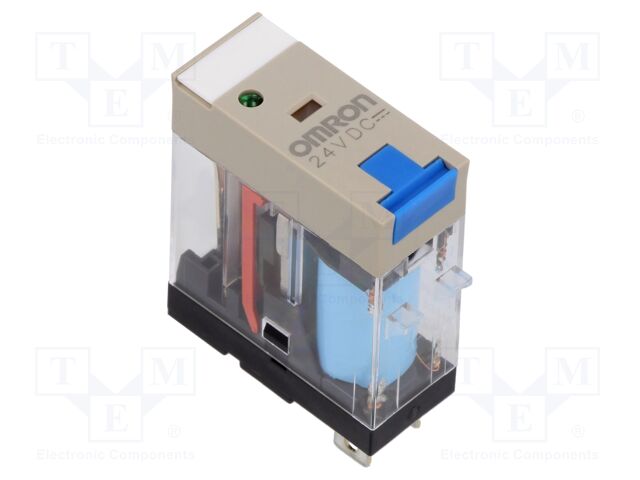

G2R-1-SNI 24VDC (S) OMRON
Hersteller: OMRON
Category: Industrial Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A
Operating temperature: -40...70°C
Body dimensions: 29x13x35.5mm
Related items: P2R-05A; P2R-05P; P2R-057P; P2RF-05; P2RF-05-E
Mounting: socket
Contacts configuration: SPDT
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 10A / 30V DC
Type of relay: electromagnetic
Relay variant: industrial; miniature
Relay series: G2R-1-S
Rated coil voltage: 24V DC
Coil power consumption: 530mW
Operate time: 15ms
Release time: 5ms
Switched voltage: max. 125V DC; max. 380V AC
Contact current max.: 10A
Switching capacity: 300W; 2.5kVA
Contact resistance: 30mΩ
Coil current: 21.8mA
Optional equipment: LED indicator; test button without blocking function
Design: test button
Terminal pitch: 5.2mm
Indication: LED
Coil resistance: 1.1kΩ
Category: Industrial Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A
Operating temperature: -40...70°C
Body dimensions: 29x13x35.5mm
Related items: P2R-05A; P2R-05P; P2R-057P; P2RF-05; P2RF-05-E
Mounting: socket
Contacts configuration: SPDT
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 10A / 30V DC
Type of relay: electromagnetic
Relay variant: industrial; miniature
Relay series: G2R-1-S
Rated coil voltage: 24V DC
Coil power consumption: 530mW
Operate time: 15ms
Release time: 5ms
Switched voltage: max. 125V DC; max. 380V AC
Contact current max.: 10A
Switching capacity: 300W; 2.5kVA
Contact resistance: 30mΩ
Coil current: 21.8mA
Optional equipment: LED indicator; test button without blocking function
Design: test button
Terminal pitch: 5.2mm
Indication: LED
Coil resistance: 1.1kΩ
auf Bestellung 243 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
8+ | 9.15 EUR |
13+ | 5.72 EUR |
14+ | 5.41 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details G2R-1-SNI 24VDC (S) OMRON
Category: Industrial Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A, Operating temperature: -40...70°C, Body dimensions: 29x13x35.5mm, Related items: P2R-05A; P2R-05P; P2R-057P; P2RF-05; P2RF-05-E, Mounting: socket, Contacts configuration: SPDT, AC contacts rating @R: 10A / 250V AC, DC contacts rating @R: 10A / 30V DC, Type of relay: electromagnetic, Relay variant: industrial; miniature, Relay series: G2R-1-S, Rated coil voltage: 24V DC, Coil power consumption: 530mW, Operate time: 15ms, Release time: 5ms, Switched voltage: max. 125V DC; max. 380V AC, Contact current max.: 10A, Switching capacity: 300W; 2.5kVA, Contact resistance: 30mΩ, Coil current: 21.8mA, Optional equipment: LED indicator; test button without blocking function, Design: test button, Terminal pitch: 5.2mm, Indication: LED, Coil resistance: 1.1kΩ, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote G2R-1-SNI 24VDC (S) nach Preis ab 5.41 EUR bis 9.15 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
G2R-1-SNI 24VDC (S) | Hersteller : OMRON |
Category: Industrial Electromagnetic Relays Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A Operating temperature: -40...70°C Body dimensions: 29x13x35.5mm Related items: P2R-05A; P2R-05P; P2R-057P; P2RF-05; P2RF-05-E Mounting: socket Contacts configuration: SPDT AC contacts rating @R: 10A / 250V AC DC contacts rating @R: 10A / 30V DC Type of relay: electromagnetic Relay variant: industrial; miniature Relay series: G2R-1-S Rated coil voltage: 24V DC Coil power consumption: 530mW Operate time: 15ms Release time: 5ms Switched voltage: max. 125V DC; max. 380V AC Contact current max.: 10A Switching capacity: 300W; 2.5kVA Contact resistance: 30mΩ Coil current: 21.8mA Optional equipment: LED indicator; test button without blocking function Design: test button Terminal pitch: 5.2mm Indication: LED Coil resistance: 1.1kΩ Anzahl je Verpackung: 1 Stücke |
auf Bestellung 243 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||
Relais G2R-1-SNI 24DC[S] Produktcode: 49847 |
Relais Relaistyp: Relais |
