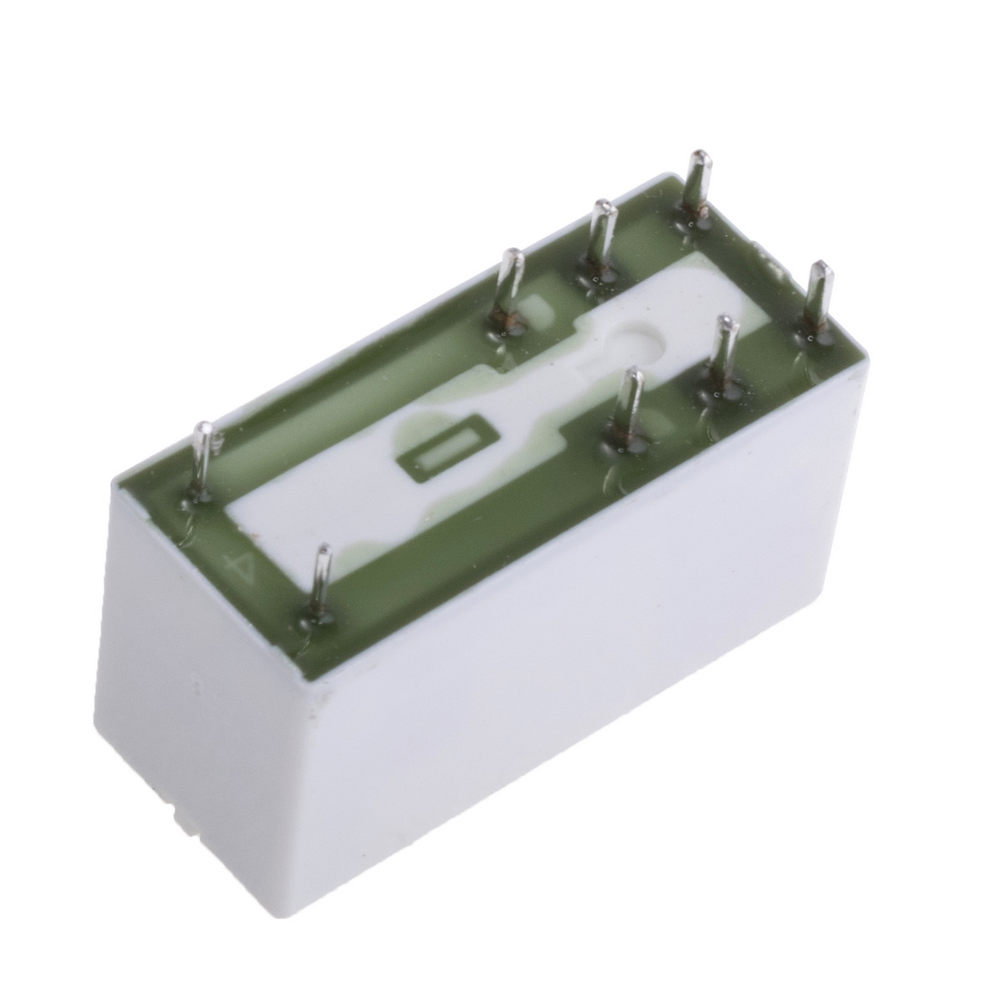

RM84-2012-35-1110 RELPOL
Hersteller: RELPOLCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 110VDC; 8A; 8A/250VAC; RM84
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 110V DC
Contact current max.: 8A
AC contacts rating @R: 8A / 250V AC
DC contacts rating @R: 8A / 24V DC
Manufacturer series: RM84
Switched voltage: max. 250V DC; max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 25.2kΩ
Coil voltage min.: 77V DC
Coil voltage max.: 280V DC
Operate time: 7ms
Body dimensions: 29x12.7x15.7mm
Release time: 3ms
Coil power consumption: 480mW
IP rating: IP67
Mechanical durability: 30000000 cycles
Contact resistance: 100mΩ
Contact material: AgNi
Terminal pitch: 5mm
Related items: GD50; GZ80; GZM80; GZM80-BK; GZT80; PW80
Height: 15.7mm
Number of pins: 8
Body colour: white
Operating temperature: -40...85°C
OEM number: 600339
auf Bestellung 1291 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 9+ | 8.17 EUR |
| 10+ | 7.46 EUR |
| 20+ | 6.89 EUR |
| 100+ | 6.42 EUR |
| 500+ | 5.73 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details RM84-2012-35-1110 RELPOL
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 110VDC; 8A; 8A/250VAC; RM84, Type of relay: electromagnetic, Contacts configuration: DPDT, Rated coil voltage: 110V DC, Contact current max.: 8A, AC contacts rating @R: 8A / 250V AC, DC contacts rating @R: 8A / 24V DC, Manufacturer series: RM84, Switched voltage: max. 250V DC; max. 440V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 25.2kΩ, Coil voltage min.: 77V DC, Coil voltage max.: 280V DC, Operate time: 7ms, Body dimensions: 29x12.7x15.7mm, Release time: 3ms, Coil power consumption: 480mW, IP rating: IP67, Mechanical durability: 30000000 cycles, Contact resistance: 100mΩ, Contact material: AgNi, Terminal pitch: 5mm, Related items: GD50; GZ80; GZM80; GZM80-BK; GZT80; PW80, Height: 15.7mm, Number of pins: 8, Body colour: white, Operating temperature: -40...85°C, OEM number: 600339, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote RM84-2012-35-1110 nach Preis ab 2.8 EUR bis 15.24 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
RM84-2012-35-1110 | Hersteller : RELPOL |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; DPDT; Ucoil: 110VDC; 8A; 8A/250VAC; RM84 Type of relay: electromagnetic Contacts configuration: DPDT Rated coil voltage: 110V DC Contact current max.: 8A AC contacts rating @R: 8A / 250V AC DC contacts rating @R: 8A / 24V DC Manufacturer series: RM84 Switched voltage: max. 250V DC; max. 440V AC Relay variant: miniature Mounting: PCB Coil resistance: 25.2kΩ Coil voltage min.: 77V DC Coil voltage max.: 280V DC Operate time: 7ms Body dimensions: 29x12.7x15.7mm Release time: 3ms Coil power consumption: 480mW IP rating: IP67 Mechanical durability: 30000000 cycles Contact resistance: 100mΩ Contact material: AgNi Terminal pitch: 5mm Related items: GD50; GZ80; GZM80; GZM80-BK; GZT80; PW80 Height: 15.7mm Number of pins: 8 Body colour: white Operating temperature: -40...85°C OEM number: 600339 Anzahl je Verpackung: 1 Stücke |
auf Bestellung 1291 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||
| RM84-2012-35-1110 | Hersteller : Altech Corporation |
Description: RELAY GEN PURPOSE DPDT 8A 110V Packaging: Bulk Mounting Type: Through Hole Coil Voltage: 110VDC Operating Temperature: -40°C ~ 85°C Termination Style: PC Pin Relay Type: General Purpose Coil Current: 4.4 mA Coil Type: Non Latching Seal Rating: Sealed - Flux Protection Contact Material: Silver Nickel (AgNi) Contact Form: DPDT (2 Form C) Contact Rating (Current): 8 A Switching Voltage: 440VAC - Max Must Operate Voltage: 77 VDC Operate Time: 7 ms Release Time: 3 ms Part Status: Active Approval Agency: CCC, CE, CSA, UR, VDE Load - Max Switching: 3520VA |
auf Bestellung 140 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||
| RM84-2012-35-1110 | Hersteller : RELPOL S.A. | Power Relay 110VDC DPDT(29x12.7x15.7)mm THT |
auf Bestellung 1291 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
| RM84-2012-35-1110 | Hersteller : RELPOL |
8A; 110V; DPDT; coil power 480mW; 29,0 x 12,7 x 15,7mm; IP67 SMT, for sockets equivalent: AZ743P, 41.52, JQX-115F/HF115F RM84 2012-35-1110 miniature relay P RM84p110-20w Anzahl je Verpackung: 20 Stücke |
auf Bestellung 34 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||
 +1 |
RM84-2012-35-1110 Relpol Produktcode: 32783
zu Favoriten hinzufügen
Lieblingsprodukt
|
Hersteller : Relpol |
Relais Relaistyp: Relais Beschreibung: DPDT; UWicklungs:110V DC; 8A/250VAC; 8А Abmessungen: 29x12,7x15,7mm Spulenspannung: 110 VDC Strom max: 8 A Kontaktkonfiguration: DPDT(2C) Schaltspannung: 250 VAC; 24 VDC |
Produkt ist nicht verfügbar
|
|
||||||||||||
 |
RM84-2012-35-1110 | Hersteller : Altech |
Industrial Relays Miniature relay, DPDT |
Produkt ist nicht verfügbar |
