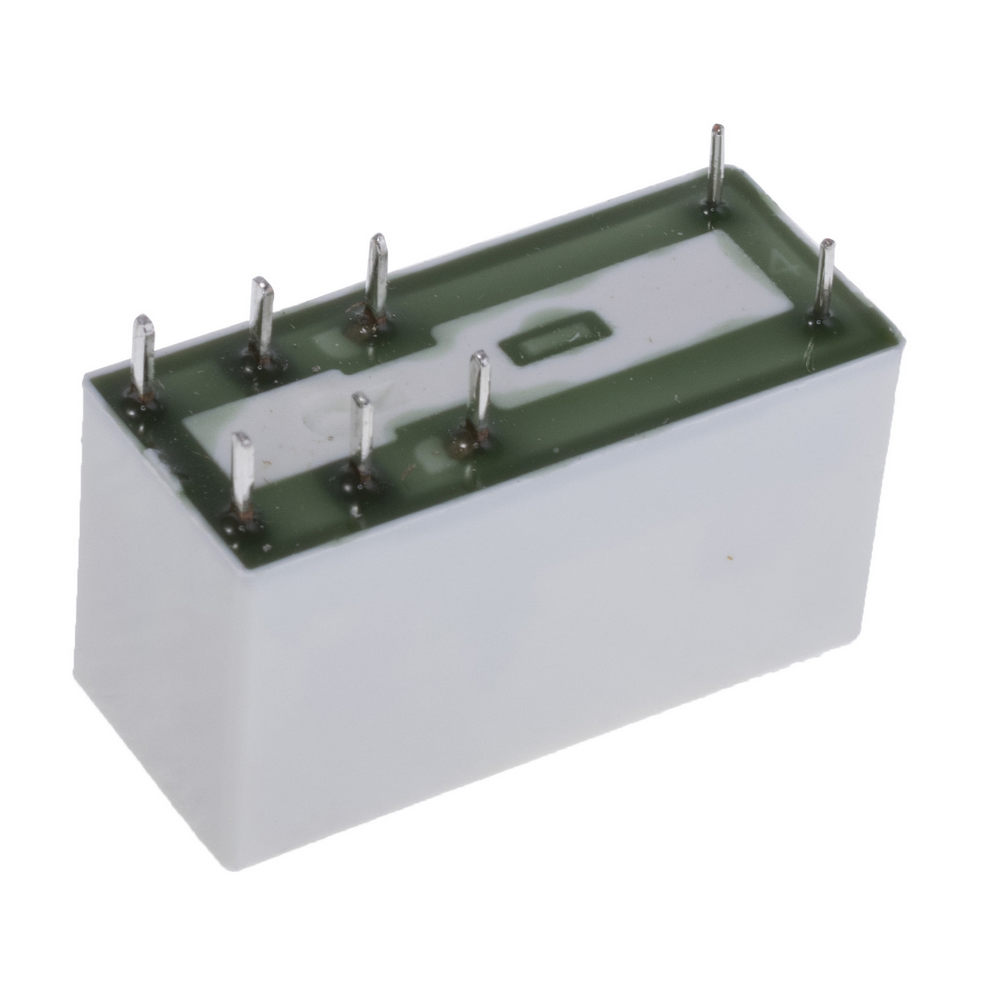

RM84-2012-35-5024 RELPOL
Hersteller: RELPOL
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VAC; 8A; 8A/250VAC; 8A/24VDC
Number of pins: 8
Mounting: PCB
Height: 15.7mm
Contact material: AgNi
Operating temperature: -40...85°C
Related items: GD50; GZ80; GZM80; GZM80-BK; GZT80; PW80
Coil resistance: 400Ω
Contacts configuration: DPDT
AC contacts rating @R: 8A / 250V AC
DC contacts rating @R: 8A / 24V DC
Type of relay: electromagnetic
Relay variant: miniature
Relay series: RM84
Rated coil voltage: 24V AC
Coil voltage min.: 19.2V AC
Coil voltage max.: 28.8V AC
Coil power consumption: 0.75VA
Operate time: 7ms
Release time: 3ms
Switched voltage: max. 250V DC; max. 440V AC
Contact current max.: 8A
Contact resistance: 100mΩ
OEM number: 604615
Mechanical durability: 30000000 cycles
Terminal pitch: 5mm
Body colour: white
IP rating: IP67
Body dimensions: 29x12.7x15.7mm
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VAC; 8A; 8A/250VAC; 8A/24VDC
Number of pins: 8
Mounting: PCB
Height: 15.7mm
Contact material: AgNi
Operating temperature: -40...85°C
Related items: GD50; GZ80; GZM80; GZM80-BK; GZT80; PW80
Coil resistance: 400Ω
Contacts configuration: DPDT
AC contacts rating @R: 8A / 250V AC
DC contacts rating @R: 8A / 24V DC
Type of relay: electromagnetic
Relay variant: miniature
Relay series: RM84
Rated coil voltage: 24V AC
Coil voltage min.: 19.2V AC
Coil voltage max.: 28.8V AC
Coil power consumption: 0.75VA
Operate time: 7ms
Release time: 3ms
Switched voltage: max. 250V DC; max. 440V AC
Contact current max.: 8A
Contact resistance: 100mΩ
OEM number: 604615
Mechanical durability: 30000000 cycles
Terminal pitch: 5mm
Body colour: white
IP rating: IP67
Body dimensions: 29x12.7x15.7mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 233 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
23+ | 3.19 EUR |
24+ | 3.02 EUR |
46+ | 1.57 EUR |
49+ | 1.49 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details RM84-2012-35-5024 RELPOL
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 24VAC; 8A; 8A/250VAC; 8A/24VDC, Number of pins: 8, Mounting: PCB, Height: 15.7mm, Contact material: AgNi, Operating temperature: -40...85°C, Related items: GD50; GZ80; GZM80; GZM80-BK; GZT80; PW80, Coil resistance: 400Ω, Contacts configuration: DPDT, AC contacts rating @R: 8A / 250V AC, DC contacts rating @R: 8A / 24V DC, Type of relay: electromagnetic, Relay variant: miniature, Relay series: RM84, Rated coil voltage: 24V AC, Coil voltage min.: 19.2V AC, Coil voltage max.: 28.8V AC, Coil power consumption: 0.75VA, Operate time: 7ms, Release time: 3ms, Switched voltage: max. 250V DC; max. 440V AC, Contact current max.: 8A, Contact resistance: 100mΩ, OEM number: 604615, Mechanical durability: 30000000 cycles, Terminal pitch: 5mm, Body colour: white, IP rating: IP67, Body dimensions: 29x12.7x15.7mm, Anzahl je Verpackung: 1 Stücke.
Möglichen Substitutionen RM84-2012-35-5024 RELPOL
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||
---|---|---|---|---|---|---|---|---|---|
RM84-P-24V (RM84-2012-35-1024) Produktcode: 53413 |
Hersteller : Relpol |
Relais Relaistyp: Relais Beschreibung: U-nenn=24VDC, R=1440Ohm, 480mV, Kontakte DPDT, 8A/250VAC & 8A/24VDC, -40...+85°C Abmessungen: 29,0x12,7x15,7mm Spulenspannung: 24 VDC Strom max: 8 A Kontaktkonfiguration: DPDT(2C) Schaltspannung: 250 VAC; 24 VDC |
verfügbar: 5 Stück
|
|
Weitere Produktangebote RM84-2012-35-5024 nach Preis ab 1.49 EUR bis 22.57 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RM84-2012-35-5024 | Hersteller : RELPOL |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; DPDT; Ucoil: 24VAC; 8A; 8A/250VAC; 8A/24VDC Number of pins: 8 Mounting: PCB Height: 15.7mm Contact material: AgNi Operating temperature: -40...85°C Related items: GD50; GZ80; GZM80; GZM80-BK; GZT80; PW80 Coil resistance: 400Ω Contacts configuration: DPDT AC contacts rating @R: 8A / 250V AC DC contacts rating @R: 8A / 24V DC Type of relay: electromagnetic Relay variant: miniature Relay series: RM84 Rated coil voltage: 24V AC Coil voltage min.: 19.2V AC Coil voltage max.: 28.8V AC Coil power consumption: 0.75VA Operate time: 7ms Release time: 3ms Switched voltage: max. 250V DC; max. 440V AC Contact current max.: 8A Contact resistance: 100mΩ OEM number: 604615 Mechanical durability: 30000000 cycles Terminal pitch: 5mm Body colour: white IP rating: IP67 Body dimensions: 29x12.7x15.7mm |
auf Bestellung 233 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
RM84-2012-35-5024 | Hersteller : Altech | Industrial Relays miniature relay, DPDT |
auf Bestellung 1 Stücke: Lieferzeit 14-28 Tag (e) |
|
|||||||||||||||||
RM84-2012-35-5024 | Hersteller : RELPOL |
Description: RELPOL - RM84-2012-35-5024 - Leistungsrelais, DPDT-2NC / 2NO, 24 V, 8 A, RM84, Sockel, AC tariffCode: 85364190 rohsCompliant: YES Relaisanschlüsse: Steckanschlüsse hazardous: false rohsPhthalatesCompliant: YES Spulentyp: AC Kontaktmaterial: Silberlegierung Kontaktstrom: 8A usEccn: EAR99 Spulenwiderstand: 400ohm euEccn: NLR Kontaktspannung V DC: - Relaismontage: Sockel Produktpalette: RM84 productTraceability: No Spulenspannung: 24V Kontaktkonfiguration: DPDT-2NC / 2NO Kontaktspannung V AC: 440V SVHC: No SVHC (17-Dec-2014) |
auf Bestellung 36 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||||||
RM84-2012-35-5024 | Hersteller : RELPOL S.A. | Power Relay 24VAC DPDT(29x12.7x15.7)mm THT |
auf Bestellung 253 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
RM84-2012-35-5024 | Hersteller : RELPOL |
8A; 24VAC; DPDT; coil power 480mW; 29,0 x 12,7 x 15,7mm; IP67 SMT, for sockets equivalent: AZ743P, 41.52, JQX-115F/HF115F RM84 2012-35-5024 miniature relay P RM84p024-20wz Anzahl je Verpackung: 5 Stücke |
auf Bestellung 3 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||||||
RM84-2012-35-5024 | Hersteller : RELPOL |
8A; 24VAC; DPDT; coil power 480mW; 29,0 x 12,7 x 15,7mm; IP67 SMT, for sockets equivalent: AZ743P, 41.52, JQX-115F/HF115F RM84 2012-35-5024 miniature relay P RM84p024-20wz Anzahl je Verpackung: 5 Stücke |
auf Bestellung 20 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||||||
RM84-2012-35-5024 | Hersteller : RELPOL |
8A; 24VAC; DPDT; coil power 480mW; 29,0 x 12,7 x 15,7mm; IP67 SMT, for sockets equivalent: AZ743P, 41.52, JQX-115F/HF115F RM84 2012-35-5024 miniature relay P RM84p024-20wz Anzahl je Verpackung: 5 Stücke |
auf Bestellung 15 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||||||
RM84-2012-35-5024 | Hersteller : Altech Corporation |
Description: RELAY GEN PURPOSE DPDT 8A 24V Packaging: Bulk Mounting Type: Through Hole Coil Voltage: 24VAC Operating Temperature: -40°C ~ 70°C Termination Style: PC Pin Relay Type: General Purpose Coil Current: 60 mA Coil Type: Non Latching Seal Rating: Sealed - Flux Protection Contact Material: Silver Nickel (AgNi) Contact Form: DPDT (2 Form C) Contact Rating (Current): 8 A Switching Voltage: 440VAC - Max Must Operate Voltage: 19.2 VAC Operate Time: 7 ms Release Time: 3 ms Part Status: Active |
auf Bestellung 40 Stücke: Lieferzeit 21-28 Tag (e) |
|
|||||||||||||||||
+1 |
RM84-2012-35-5024 Produktcode: 129408 |
Hersteller : Relpol |
Relais Relaistyp: Мініатюрне Beschreibung: Тип контактів: 2C; Uкотушки: 24VDC; Iкомутації: 8A; Rкотушки: 400 Ohm Abmessungen: 29x12,7x15,7 mm Spulenspannung: 24 VDC Strom max: 8 A Kontaktkonfiguration: DPDT(2C) Schaltspannung: 250 VAC; 24 VDC |
Produkt ist nicht verfügbar
|
|||||||||||||||||
RM84-2012-35-5024 Produktcode: 144429 |
Relais |
Produkt ist nicht verfügbar
|
