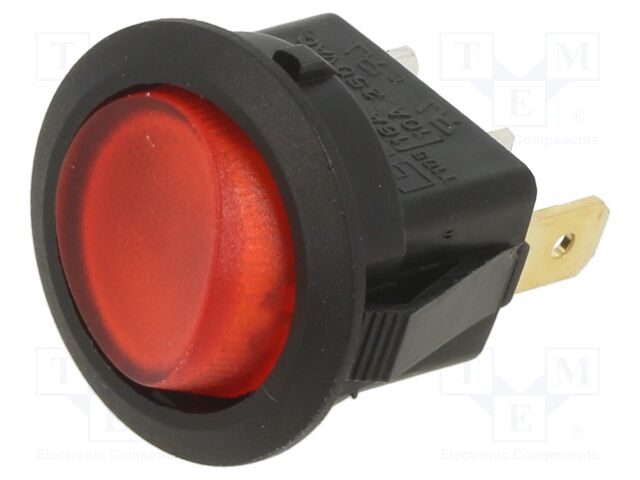

Technische Details RR111C1000-116 E-Switch
Category: Rocker Switches, Description: ROCKER; SPST-NO; Pos: 2; OFF-ON; 16A/125VAC; transparent; RR1, Panel thickness: 0.75...3mm, Contact plating: silver plated, Terminal pitch: 7.1mm, Mounting: on panel, Contact material: copper, Mounting hole dimensions: Ø20.8mm, Manufacturer series: RR1, Flammability rating: UL94V-2, Button shape: round, Type of switch: ROCKER, Button height: 5.5mm, Body colour: black, AC contacts rating @R: 16A / 125V AC, Operating temperature: -20...105°C, Key button colour: transparent, Contacts configuration: SPST-NO, Stable positions number: 2, Leads: connectors, Button marking: blank, Backlight colour: red, Body dimensions: Ø23x14.6mm, Switching method: OFF-ON, Min. insulation resistance: 0.1GΩ, Max. contact resistance:: 35mΩ, Leads dimensions: 4.75x0.8mm, Electrical life: 6000 cycles, Illumination: LED; point, Number of positions: 2.
Weitere Produktangebote RR111C1000-116 nach Preis ab 1.34 EUR bis 2.37 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RR111C1000-116 | E-SWITCH |
 Category: Rocker SwitchesDescription: ROCKER; SPST-NO; Pos: 2; OFF-ON; 16A/125VAC; transparent; RR1 Panel thickness: 0.75...3mm Contact plating: silver plated Terminal pitch: 7.1mm Mounting: on panel Contact material: copper Mounting hole dimensions: Ø20.8mm Manufacturer series: RR1 Flammability rating: UL94V-2 Button shape: round Type of switch: ROCKER Button height: 5.5mm Body colour: black AC contacts rating @R: 16A / 125V AC Operating temperature: -20...105°C Key button colour: transparent Contacts configuration: SPST-NO Stable positions number: 2 Leads: connectors Button marking: blank Backlight colour: red Body dimensions: Ø23x14.6mm Switching method: OFF-ON Min. insulation resistance: 0.1GΩ Max. contact resistance:: 35mΩ Leads dimensions: 4.75x0.8mm Electrical life: 6000 cycles Illumination: LED; point Number of positions: 2 |
auf Bestellung 753 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
RR111C1000-116 | E-Switch |
Description: SWITCH ROCKER SPST 16A 125V Approval Agency: cUL, VDE, UL Voltage Rating - AC: 125 V Actuator Marking: No Marking Color - Actuator/Cap: Red Panel Cutout Dimensions: Circular - 20.00mm Dia Actuator Type: Round - Illuminated Illumination Voltage (Nominal): 125 VAC Illumination Type, Color: Neon, Red Termination Style: Quick Connect - 0.187" (4.7mm) Operating Temperature: -20°C ~ 105°C Switch Function: On-Off Circuit: SPST Mounting Type: Panel Mount, Snap-In Current Rating (Amps): 16A (AC) Packaging: Bulk |
auf Bestellung 8621 Stücke: Lieferzeit 10-14 Tag (e) |
|
| RR111C1000-116 |
|
Hersteller: E-SWITCH
Category: Rocker Switches
Description: ROCKER; SPST-NO; Pos: 2; OFF-ON; 16A/125VAC; transparent; RR1
Panel thickness: 0.75...3mm
Contact plating: silver plated
Terminal pitch: 7.1mm
Mounting: on panel
Contact material: copper
Mounting hole dimensions: Ø20.8mm
Manufacturer series: RR1
Flammability rating: UL94V-2
Button shape: round
Type of switch: ROCKER
Button height: 5.5mm
Body colour: black
AC contacts rating @R: 16A / 125V AC
Operating temperature: -20...105°C
Key button colour: transparent
Contacts configuration: SPST-NO
Stable positions number: 2
Leads: connectors
Button marking: blank
Backlight colour: red
Body dimensions: Ø23x14.6mm
Switching method: OFF-ON
Min. insulation resistance: 0.1GΩ
Max. contact resistance:: 35mΩ
Leads dimensions: 4.75x0.8mm
Electrical life: 6000 cycles
Illumination: LED; point
Number of positions: 2
Category: Rocker Switches
Description: ROCKER; SPST-NO; Pos: 2; OFF-ON; 16A/125VAC; transparent; RR1
Panel thickness: 0.75...3mm
Contact plating: silver plated
Terminal pitch: 7.1mm
Mounting: on panel
Contact material: copper
Mounting hole dimensions: Ø20.8mm
Manufacturer series: RR1
Flammability rating: UL94V-2
Button shape: round
Type of switch: ROCKER
Button height: 5.5mm
Body colour: black
AC contacts rating @R: 16A / 125V AC
Operating temperature: -20...105°C
Key button colour: transparent
Contacts configuration: SPST-NO
Stable positions number: 2
Leads: connectors
Button marking: blank
Backlight colour: red
Body dimensions: Ø23x14.6mm
Switching method: OFF-ON
Min. insulation resistance: 0.1GΩ
Max. contact resistance:: 35mΩ
Leads dimensions: 4.75x0.8mm
Electrical life: 6000 cycles
Illumination: LED; point
Number of positions: 2
auf Bestellung 753 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 51+ | 1.69 EUR |
| 55+ | 1.55 EUR |
| 57+ | 1.5 EUR |
| 59+ | 1.45 EUR |
| 100+ | 1.39 EUR |
| 200+ | 1.34 EUR |
| RR111C1000-116 |
|
Hersteller: E-Switch
Description: SWITCH ROCKER SPST 16A 125V
Approval Agency: cUL, VDE, UL
Voltage Rating - AC: 125 V
Actuator Marking: No Marking
Color - Actuator/Cap: Red
Panel Cutout Dimensions: Circular - 20.00mm Dia
Actuator Type: Round - Illuminated
Illumination Voltage (Nominal): 125 VAC
Illumination Type, Color: Neon, Red
Termination Style: Quick Connect - 0.187" (4.7mm)
Operating Temperature: -20°C ~ 105°C
Switch Function: On-Off
Circuit: SPST
Mounting Type: Panel Mount, Snap-In
Current Rating (Amps): 16A (AC)
Packaging: Bulk
Description: SWITCH ROCKER SPST 16A 125V
Approval Agency: cUL, VDE, UL
Voltage Rating - AC: 125 V
Actuator Marking: No Marking
Color - Actuator/Cap: Red
Panel Cutout Dimensions: Circular - 20.00mm Dia
Actuator Type: Round - Illuminated
Illumination Voltage (Nominal): 125 VAC
Illumination Type, Color: Neon, Red
Termination Style: Quick Connect - 0.187" (4.7mm)
Operating Temperature: -20°C ~ 105°C
Switch Function: On-Off
Circuit: SPST
Mounting Type: Panel Mount, Snap-In
Current Rating (Amps): 16A (AC)
Packaging: Bulk
auf Bestellung 8621 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 9+ | 2.37 EUR |
| 11+ | 2.03 EUR |
| 25+ | 1.93 EUR |
| 50+ | 1.84 EUR |
| 100+ | 1.76 EUR |
| 300+ | 1.64 EUR |
| 500+ | 1.58 EUR |
| 1000+ | 1.52 EUR |
