Produkte > Netzteile und Ladegeräte > Netzgeräte eingebaut (Metallgehäuse, offene, Modultyp) > RS-150-15 MeanWell

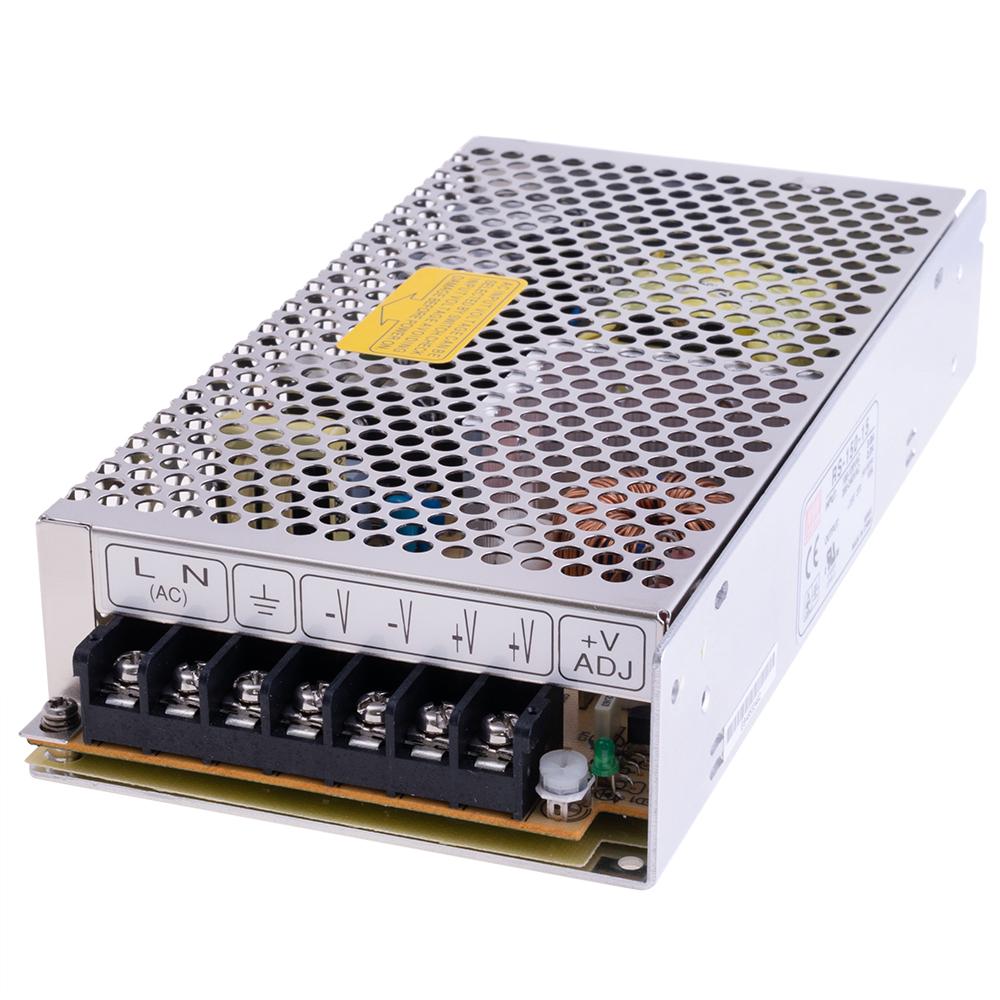

RS-150-15 MeanWell

Produktcode: 48274
Hersteller: MeanWellTyp: Im Metallgehause, einbaubar
Eingangsspannung: 88-264VAC
Ausgangsspannung: 15V
Ausgangsstrom: 0,416666666666667
Leistung, max: 150W
Abmessungen: 199x98x38mm
Wirkungsgrad und Arbeitstemperatur: 84%, -25...70°C
auf Bestellung 1 Stück:
Lieferzeit 21-28 Tag (e)
Anzahl | Preis |
---|---|
1+ | 24 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details RS-150-15 MeanWell
- PSU, ENCLOSED, 150W, 15V
- Output Voltage:15V
- Output Current:10A
- Power Rating:150W
- External Depth:38mm
- External Length / Height:199mm
- External Width:98mm
- Efficiency:84%
- Leakage Current:2mA
- Line Regulation:0.5%
- Load Regulation:0.5%
- Max Frequency:63Hz
- Max Operating Temperature:70`C
- Max Supply Voltage:264V ac
- Min Frequency:47Hz
- Min Supply Voltage:88V ac
- Min Temperature Operating:-25`C
- Output Ripple and Noise Voltage, pk-pk:120mV
- Weight:0.7kg
- Current Rating:2A
- Input Voltage Range:88V AC to 132V AC / 176V AC to 264V AC / 248V DC to 373V DC
- Max Supply Voltage AC:264V ac
- Max Supply Voltage DC:373V dc
- Min Supply Voltage AC:88V ac
- Min Supply Voltage DC:248V dc
Weitere Produktangebote RS-150-15 nach Preis ab 24.65 EUR bis 44.09 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
RS-150-15 | Hersteller : MEAN WELL |
![]() ![]() Description: Power supply: switching; for building in,modular; 150W; 15VDC Body dimensions: 199x98x38mm Kind of case: 902A Number of outputs: 1 Electrical connection: terminal block Supply voltage: 88...264V AC; 248...373V DC Output voltage: 15V DC Output current: 10A Type of power supply: switching Efficiency: 84% Caution!: rated parameters obtained at full load Protection: anti-overload OPP; anti-overvoltage OVP; short circuit protection SCP Manufacturer series: RS-150 Kind of power supply: for building in; modular Operating temperature: -25...70°C Power: 150W Anzahl je Verpackung: 1 Stücke |
auf Bestellung 27 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
![]() |
RS-150-15 | Hersteller : MEAN WELL |
![]() ![]() Description: Power supply: switching; for building in,modular; 150W; 15VDC Body dimensions: 199x98x38mm Kind of case: 902A Number of outputs: 1 Electrical connection: terminal block Supply voltage: 88...264V AC; 248...373V DC Output voltage: 15V DC Output current: 10A Type of power supply: switching Efficiency: 84% Caution!: rated parameters obtained at full load Protection: anti-overload OPP; anti-overvoltage OVP; short circuit protection SCP Manufacturer series: RS-150 Kind of power supply: for building in; modular Operating temperature: -25...70°C Power: 150W |
auf Bestellung 27 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
![]() |
RS-150-15 | Hersteller : Mean-Well USA, Inc. |
![]() |
auf Bestellung 27 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
![]() |
RS-150-15 | Hersteller : MEAN WELL |
![]() |
auf Bestellung 38 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
![]() |
RS-150-15 | Hersteller : MEAN WELL USA Inc. |
![]() Power (Watts): 150W Features: Adjustable Output Packaging: Box Size / Dimension: 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) Mounting Type: Chassis Mount Voltage - Input: 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC Type: Enclosed Operating Temperature: -25°C ~ 70°C (With Derating) Applications: ITE (Commercial) Approval Agency: CB, CE, cURus, TUV Efficiency: 84% Voltage - Output 1: 15V Part Status: Active Number of Outputs: 1 Voltage - Isolation: 3 kV Current - Output 1: 10 A |
auf Bestellung 12 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
![]() |
RS-150-15 | Hersteller : Mean-Well USA, Inc. |
![]() |
auf Bestellung 96 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
![]() |
RS-150-15 | Hersteller : MEAN WELL USA Inc. |
![]() Power (Watts): 150W Features: Adjustable Output Packaging: Bulk Size / Dimension: 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) Mounting Type: Chassis Mount Voltage - Input: 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC Type: Enclosed Operating Temperature: -25°C ~ 70°C (With Derating) Applications: ITE (Commercial) Approval Agency: CB, CE, cURus, TUV Efficiency: 84% Voltage - Output 1: 15V Number of Outputs: 1 Voltage - Isolation: 3 kV Current - Output 1: 10 A |
auf Bestellung 10 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
![]() |
RS-150-15 | Hersteller : MEAN WELL |
![]() Ausgangsstrom - Ausgang 2: - Ausgangsspannung - Ausgang 4: - Eingangsspannung, V AC: 88V AC bis 132V AC, 176V AC bis 264V AC Ausgangsspannung - Ausgang 3: - Ausgangsstrom - Ausgang 3: - Zulassungen des Netzteils: ITE Stromversorgungsausgang: Einstellbar, fest Produktpalette: RS-150 Series Ausgangsspannung - Ausgang 1: 15 Ausgangsspannung - Ausgang 2: - Ausgangsstrom - Ausgang 1: 10 Anzahl der Ausgänge: 1 Ausgangsleistung, max.: 150 Ausgangsstrom - Ausgang 4: - SVHC: No SVHC (10-Jun-2022) |
auf Bestellung 3 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||
![]() |
RS-150-15 | Hersteller : Mean-Well USA, Inc. |
![]() |
Produkt ist nicht verfügbar |
|||||||||||
![]() |
RS-150-15 | Hersteller : Mean-Well USA, Inc. |
![]() |
Produkt ist nicht verfügbar |
|||||||||||
![]() |
RS-150-15 | Hersteller : MEAN WELL |
![]() |
Produkt ist nicht verfügbar |
