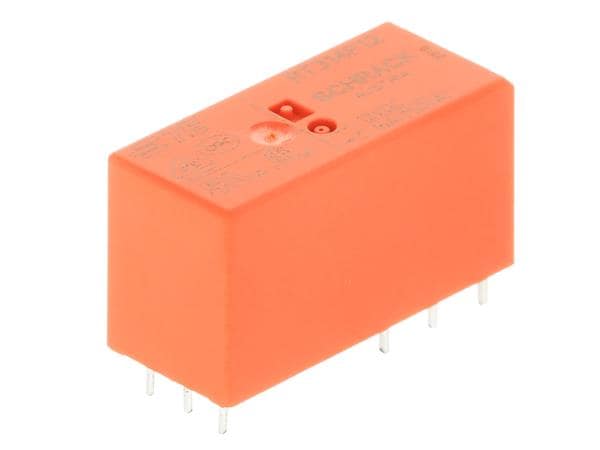

Technische Details RT314F12 TE Connectivity
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A, Type of relay: electromagnetic, Contacts configuration: SPDT, Rated coil voltage: 12V DC, Contact current max.: 16A, AC contacts rating @R: 16A / 250V AC, DC contacts rating @R: 16A / 24V DC, Manufacturer series: RT1, Switched voltage: max. 300V DC; max. 400V AC, Mounting: THT, Coil resistance: 240Ω, Body dimensions: 29x15.7x12.7mm, Coil power consumption: 0.6W, Switching capacity: 4kVA, Contact material: AgNi 90/10, Max surge current: 30A, Operating temperature: -40...85°C, Mechanical durability: 5000000 cycles, Relay variant: bistable; miniature, IP rating: IP40, Design: two coils, Terminal pitch: 5mm, Height: 15.7mm, Number of pins: 9.
Weitere Produktangebote RT314F12 nach Preis ab 5.31 EUR bis 19.67 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RT314F12 | TE Connectivity |
 Power Relay 12VDC 16A SPDT(29mm 12.7mm 15.7mm) THT |
auf Bestellung 1441 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
|
|
RT314F12 | TE Connectivity |
Power Relay 12VDC 16A SPDT(29mm 12.7mm 15.7mm) THT |
auf Bestellung 4810 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
8-1393239-7 | TE Connectivity |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 12V DC Contact current max.: 16A AC contacts rating @R: 16A / 250V AC DC contacts rating @R: 16A / 24V DC Manufacturer series: RT1 Switched voltage: max. 300V DC; max. 400V AC Mounting: THT Coil resistance: 240Ω Body dimensions: 29x15.7x12.7mm Coil power consumption: 0.6W Switching capacity: 4kVA Contact material: AgNi 90/10 Max surge current: 30A Operating temperature: -40...85°C Mechanical durability: 5000000 cycles Relay variant: bistable; miniature IP rating: IP40 Design: two coils Terminal pitch: 5mm Height: 15.7mm Number of pins: 9 |
auf Bestellung 339 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
RT314F12 | TE Connectivity / Schrack |
General Purpose Relays SPDT 12VDC 240Ohm 16A GEN PURPOSE RLY |
auf Bestellung 1396 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
RT314F12 | TE Connectivity Potter & Brumfield Relays |
Description: RELAY GEN PURPOSE SPDT 16A 12V Load - Max Switching: 6400VA Approval Agency: CQC, CSA, cURus, VDE Coil Insulation: Class F Part Status: Active Release Time: 10 ms Operate Time: 10 ms Must Operate Voltage: 8.4 VDC Switching Voltage: 400VAC - Max Contact Rating (Current): 16 A Contact Form: SPDT (1 Form C) Contact Material: Silver Nickel (AgNi) Seal Rating: Sealed - Flux Protection Coil Type: Latching, Dual Coil Coil Current: 50 mA Relay Type: General Purpose Termination Style: PC Pin Operating Temperature: -40°C ~ 85°C Coil Voltage: 12VDC Mounting Type: Through Hole Packaging: Tube |
auf Bestellung 7550 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
RT314F12 | TE CONNECTIVITY - SCHRACK |
Description: TE CONNECTIVITY - SCHRACK - RT314F12 - Universelles Leistungsrelais, Printrelais, Leiterplatte, RT1, bistabil, zwei Spulen, SPDT, 12V DC tariffCode: 85364900 rohsCompliant: YES Zulassungen & Normen: CSA, UL, VDE Relaisanschlüsse: Lötanschlüsse hazardous: false rohsPhthalatesCompliant: YES Spulentyp: Bistabile Doppelspule Kontaktmaterial: Silber-Nickel isCanonical: Y Kontaktstrom: 16A usEccn: EAR99 Spulenwiderstand: 240ohm euEccn: NLR Kontaktspannung V DC: - Relaismontage: Durchsteckmontage Produktpalette: RT1 Series productTraceability: No Spulenspannung: 12VDC Kontaktkonfiguration: SPDT Kontaktspannung V AC: 250V SVHC: No SVHC (21-Jan-2025) |
auf Bestellung 1572 Stücke: Lieferzeit 14-21 Tag (e) |
|
| RT314F12 |
|
Hersteller: TE Connectivity
Power Relay 12VDC 16A SPDT(29mm 12.7mm 15.7mm) THT
Power Relay 12VDC 16A SPDT(29mm 12.7mm 15.7mm) THT
auf Bestellung 1441 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 25+ | 7.26 EUR |
| RT314F12 |
|
Hersteller: TE Connectivity
Power Relay 12VDC 16A SPDT(29mm 12.7mm 15.7mm) THT
Power Relay 12VDC 16A SPDT(29mm 12.7mm 15.7mm) THT
auf Bestellung 4810 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 18+ | 9.83 EUR |
| 100+ | 5.82 EUR |
| 250+ | 5.6 EUR |
| 375+ | 5.43 EUR |
| 750+ | 5.31 EUR |
| 8-1393239-7 |
|
Hersteller: TE Connectivity
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 16A
AC contacts rating @R: 16A / 250V AC
DC contacts rating @R: 16A / 24V DC
Manufacturer series: RT1
Switched voltage: max. 300V DC; max. 400V AC
Mounting: THT
Coil resistance: 240Ω
Body dimensions: 29x15.7x12.7mm
Coil power consumption: 0.6W
Switching capacity: 4kVA
Contact material: AgNi 90/10
Max surge current: 30A
Operating temperature: -40...85°C
Mechanical durability: 5000000 cycles
Relay variant: bistable; miniature
IP rating: IP40
Design: two coils
Terminal pitch: 5mm
Height: 15.7mm
Number of pins: 9
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 16A
AC contacts rating @R: 16A / 250V AC
DC contacts rating @R: 16A / 24V DC
Manufacturer series: RT1
Switched voltage: max. 300V DC; max. 400V AC
Mounting: THT
Coil resistance: 240Ω
Body dimensions: 29x15.7x12.7mm
Coil power consumption: 0.6W
Switching capacity: 4kVA
Contact material: AgNi 90/10
Max surge current: 30A
Operating temperature: -40...85°C
Mechanical durability: 5000000 cycles
Relay variant: bistable; miniature
IP rating: IP40
Design: two coils
Terminal pitch: 5mm
Height: 15.7mm
Number of pins: 9
auf Bestellung 339 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 7+ | 12.35 EUR |
| 20+ | 9.89 EUR |
| 100+ | 9.27 EUR |
| RT314F12 |
|
Hersteller: TE Connectivity / Schrack
General Purpose Relays SPDT 12VDC 240Ohm 16A GEN PURPOSE RLY
General Purpose Relays SPDT 12VDC 240Ohm 16A GEN PURPOSE RLY
auf Bestellung 1396 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 14.72 EUR |
| 10+ | 12.09 EUR |
| 20+ | 11.19 EUR |
| 60+ | 10.75 EUR |
| 100+ | 10.34 EUR |
| RT314F12 |
|
Hersteller: TE Connectivity Potter & Brumfield Relays
Description: RELAY GEN PURPOSE SPDT 16A 12V
Load - Max Switching: 6400VA
Approval Agency: CQC, CSA, cURus, VDE
Coil Insulation: Class F
Part Status: Active
Release Time: 10 ms
Operate Time: 10 ms
Must Operate Voltage: 8.4 VDC
Switching Voltage: 400VAC - Max
Contact Rating (Current): 16 A
Contact Form: SPDT (1 Form C)
Contact Material: Silver Nickel (AgNi)
Seal Rating: Sealed - Flux Protection
Coil Type: Latching, Dual Coil
Coil Current: 50 mA
Relay Type: General Purpose
Termination Style: PC Pin
Operating Temperature: -40°C ~ 85°C
Coil Voltage: 12VDC
Mounting Type: Through Hole
Packaging: Tube
Description: RELAY GEN PURPOSE SPDT 16A 12V
Load - Max Switching: 6400VA
Approval Agency: CQC, CSA, cURus, VDE
Coil Insulation: Class F
Part Status: Active
Release Time: 10 ms
Operate Time: 10 ms
Must Operate Voltage: 8.4 VDC
Switching Voltage: 400VAC - Max
Contact Rating (Current): 16 A
Contact Form: SPDT (1 Form C)
Contact Material: Silver Nickel (AgNi)
Seal Rating: Sealed - Flux Protection
Coil Type: Latching, Dual Coil
Coil Current: 50 mA
Relay Type: General Purpose
Termination Style: PC Pin
Operating Temperature: -40°C ~ 85°C
Coil Voltage: 12VDC
Mounting Type: Through Hole
Packaging: Tube
auf Bestellung 7550 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 17.41 EUR |
| 20+ | 14.97 EUR |
| 40+ | 14.46 EUR |
| 60+ | 14.16 EUR |
| 100+ | 13.8 EUR |
| 260+ | 13.15 EUR |
| 500+ | 12.72 EUR |
| 1000+ | 12.29 EUR |
| RT314F12 |
|
Hersteller: TE CONNECTIVITY - SCHRACK
Description: TE CONNECTIVITY - SCHRACK - RT314F12 - Universelles Leistungsrelais, Printrelais, Leiterplatte, RT1, bistabil, zwei Spulen, SPDT, 12V DC
tariffCode: 85364900
rohsCompliant: YES
Zulassungen & Normen: CSA, UL, VDE
Relaisanschlüsse: Lötanschlüsse
hazardous: false
rohsPhthalatesCompliant: YES
Spulentyp: Bistabile Doppelspule
Kontaktmaterial: Silber-Nickel
isCanonical: Y
Kontaktstrom: 16A
usEccn: EAR99
Spulenwiderstand: 240ohm
euEccn: NLR
Kontaktspannung V DC: -
Relaismontage: Durchsteckmontage
Produktpalette: RT1 Series
productTraceability: No
Spulenspannung: 12VDC
Kontaktkonfiguration: SPDT
Kontaktspannung V AC: 250V
SVHC: No SVHC (21-Jan-2025)
Description: TE CONNECTIVITY - SCHRACK - RT314F12 - Universelles Leistungsrelais, Printrelais, Leiterplatte, RT1, bistabil, zwei Spulen, SPDT, 12V DC
tariffCode: 85364900
rohsCompliant: YES
Zulassungen & Normen: CSA, UL, VDE
Relaisanschlüsse: Lötanschlüsse
hazardous: false
rohsPhthalatesCompliant: YES
Spulentyp: Bistabile Doppelspule
Kontaktmaterial: Silber-Nickel
isCanonical: Y
Kontaktstrom: 16A
usEccn: EAR99
Spulenwiderstand: 240ohm
euEccn: NLR
Kontaktspannung V DC: -
Relaismontage: Durchsteckmontage
Produktpalette: RT1 Series
productTraceability: No
Spulenspannung: 12VDC
Kontaktkonfiguration: SPDT
Kontaktspannung V AC: 250V
SVHC: No SVHC (21-Jan-2025)
auf Bestellung 1572 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 13+ | 19.67 EUR |
| 20+ | 12.76 EUR |
| 40+ | 11.33 EUR |
| 100+ | 10.86 EUR |
| 260+ | 10.65 EUR |
