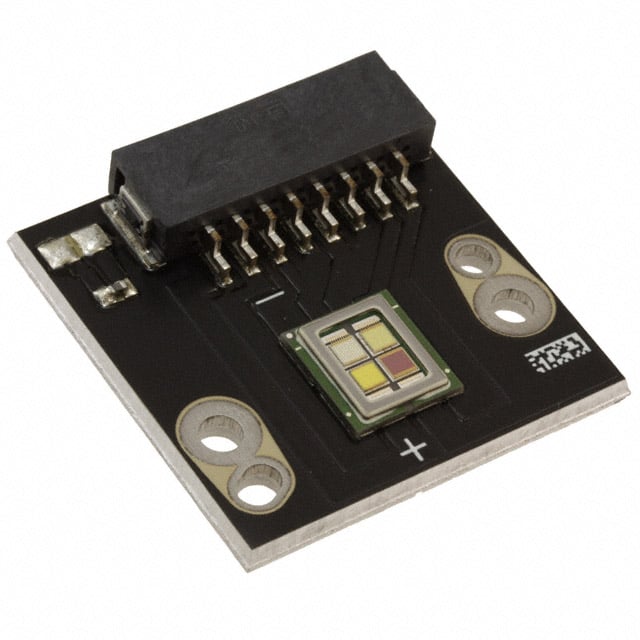

SBR-160-RGBW-R41-RF100

Hersteller: Luminus Devices Inc.
Description: LED MOD SBR-160 RGBW SQU 7100K
CCT (K): 7100K
Lumens/Watt @ Current - Test: 31 lm/W Red, 45 lm/W Green, 10 lm/W Blue, 48 lm/W White
Current - Max: 4A Red, 4A Green, 4A Blue, 4A White
Lens Type: Flat
Viewing Angle: 18° Red, 38° Green, 24° Blue
Current - Test: 4A Red, 4A Green, 4A Blue, 4A White
Height: 8.72mm
Voltage - Forward (Vf) (Typ): 2.6V Red, 4.6V Green, 3.8V Blue, 3.8V White
Configuration: Square
Type: LED Module
Size / Dimension: 36.00mm L x 36.00mm W
Wavelength: 623nm Red, 530nm Green, 458nm Blue
Color: Red, Green, Blue, White - Cool (RGBW)
Packaging: Tray
Part Status: Obsolete
Luminous Flux @ Current/Temperature: 320lm Red, 820lm Green, 150lm Blue, 730lm White
Temperature - Test: 25°C
