SC648ADJ Mallory Sonalert Products Inc.
Hersteller: Mallory Sonalert Products Inc.

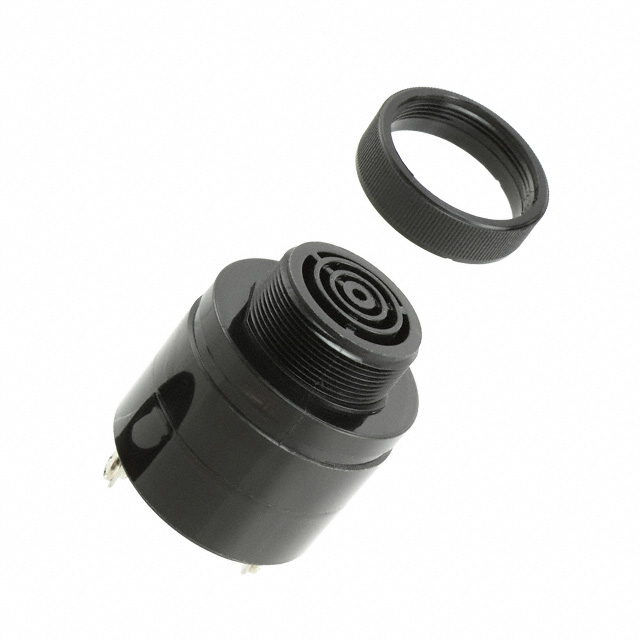

Description: BUZZER PIEZO 42.98MM PNL MNT
Height - Seated (Max): 1.399" (35.54mm)
Driver Circuitry: Indicator, Internally Driven
Port Location: Top
Termination: Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Technology: Piezo
Voltage Range: 10 ~ 40V
Operating Mode: Pulse, Slow
Input Type: AC, DC
Current - Supply: 4 ~ 20mA
Duration: 0.5 ~ 2.5 PPS
Sound Pressure Level (SPL): 60dB @ 10V, 61cm
Operating Temperature: -30°C ~ 65°C
Frequency: 2kHz
Mounting Type: Panel Mount
Size / Dimension: 1.692" Dia (42.98mm)
Packaging: Bulk
Produktrezensionen
Produktbewertung abgeben
Technische Details SC648ADJ Mallory Sonalert Products Inc.
Description: BUZZER PIEZO 42.98MM PNL MNT, Height - Seated (Max): 1.399" (35.54mm), Driver Circuitry: Indicator, Internally Driven, Port Location: Top, Termination: Screw Terminal, Quick Connect Tab - 0.250" (6.35mm), Technology: Piezo, Voltage Range: 10 ~ 40V, Operating Mode: Pulse, Slow, Input Type: AC, DC, Current - Supply: 4 ~ 20mA, Duration: 0.5 ~ 2.5 PPS, Sound Pressure Level (SPL): 60dB @ 10V, 61cm, Operating Temperature: -30°C ~ 65°C, Frequency: 2kHz, Mounting Type: Panel Mount, Size / Dimension: 1.692" Dia (42.98mm), Packaging: Bulk.
