Produkte > Steckverbinder, Reihenklemmen > Steckverbindungen Interface (außer USB, SATA) > SCM-60R (09185606903-Harting)
SCM-60R (09185606903-Harting)
Produktcode: 57375
2
zu Favoriten hinzufügen
Lieblingsprodukt
Hersteller: HARTING

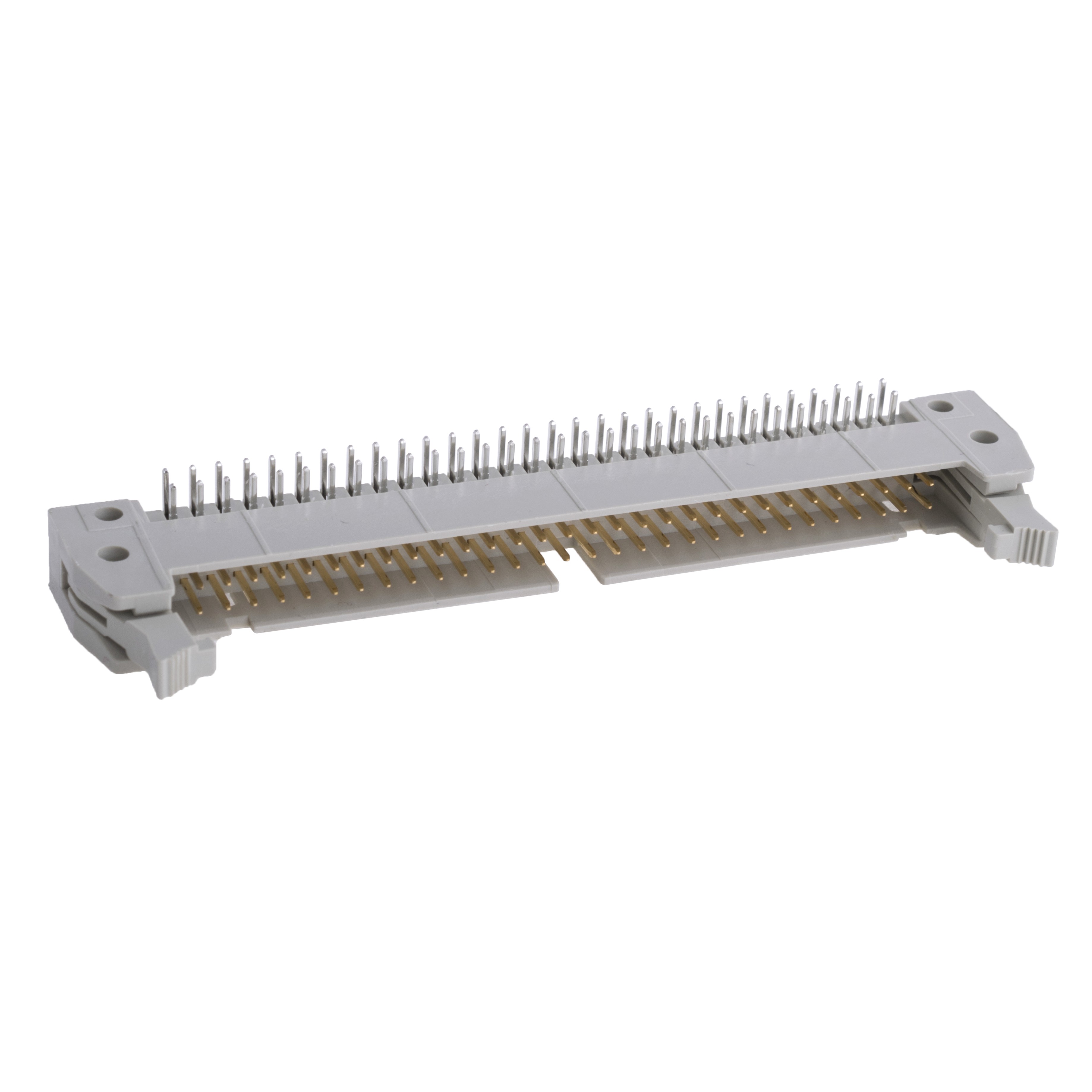

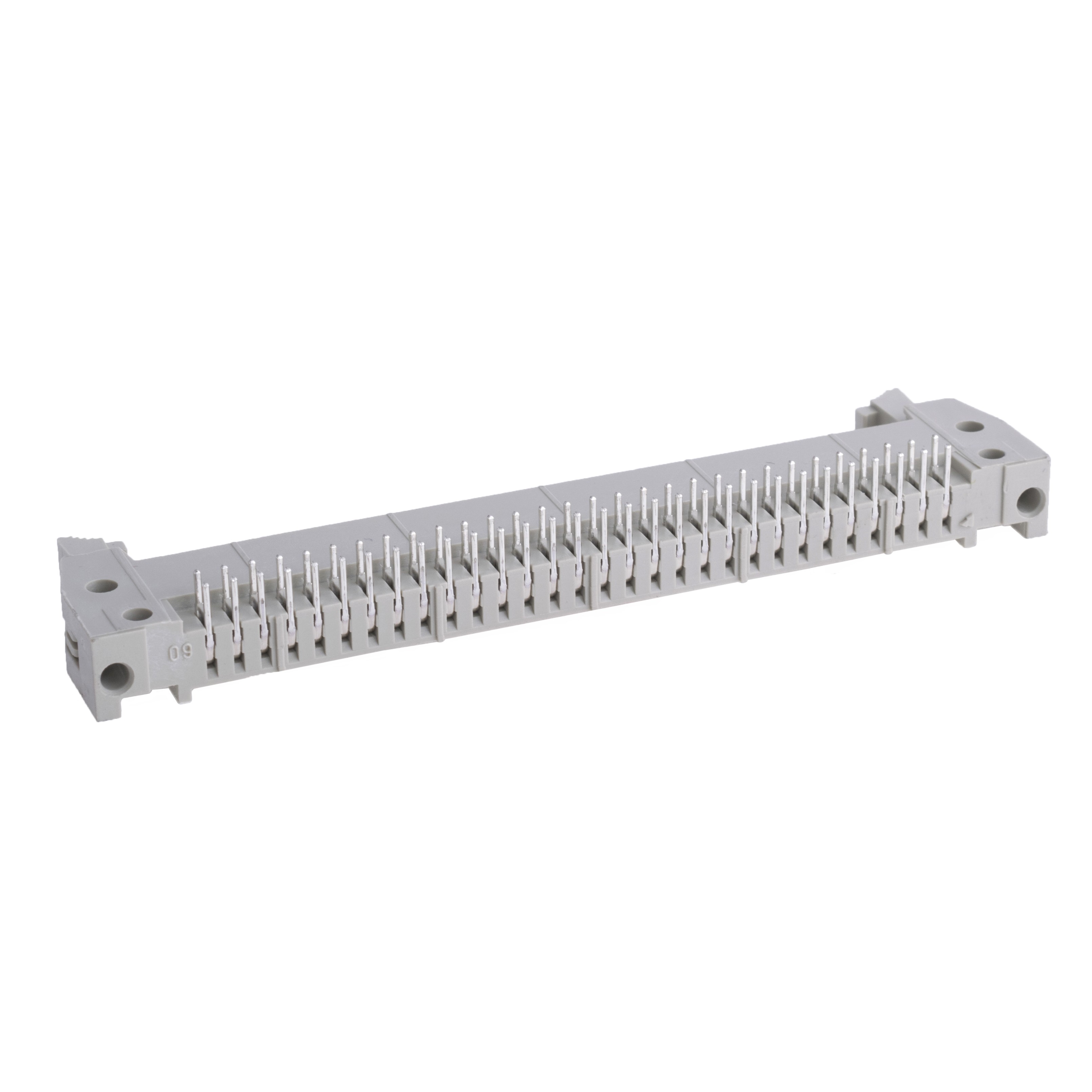

Beschreibung: Gegenstück für IDC, Stecker auf Platte mit Klinke, rechter Winkel, 60 Kontakte 2х30, Schritt 2,54mm
Stecker oder Steckdose: Stecker
Anzahl, Kontakte: 60
Серія: SCM
Механічний монтаж: На плату
Орієнтація в просторі: Кутовий
Produktrezensionen
Produktbewertung abgeben
Weitere Produktangebote SCM-60R (09185606903-Harting) nach Preis ab 6.34 EUR bis 11.11 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
09185606903 | HARTING |
Description: CONN HEADER R/A 60POS 2.54MM Contact Length - Mating: 0.240" (6.10mm) Row Spacing - Mating: 0.100" (2.54mm) Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled Shrouding: Shrouded - 4 Wall Insulation Height: 0.335" (8.51mm) Contact Length - Post: 0.114" (2.90mm) Contact Shape: Square Part Status: Active Contact Finish - Post: Tin Contact Finish - Mating: Gold Pitch - Mating: 0.100" (2.54mm) Insulation Color: Gray Contact Material: Copper Alloy Material Flammability Rating: UL94 V-0 Termination: Solder Number of Positions Loaded: All Fastening Type: Latch Lock/Eject Hooks, Long Contact Type: Male Pin Operating Temperature: -55°C ~ 125°C Style: Board to Cable/Wire Number of Rows: 2 Number of Positions: 60 Mounting Type: Through Hole, Right Angle Connector Type: Header Features: Keying Slot, Mounting Flange Packaging: Bulk |
auf Bestellung 16 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
09185606903 | HARTING |
Headers & Wire Housings SEK-18 SV ML STD ANG29 RLG 60P PL2 |
auf Bestellung 36 Stücke: Lieferzeit 10-14 Tag (e) |
|
| 09185606903 |
|
Hersteller: HARTING
Description: CONN HEADER R/A 60POS 2.54MM
Contact Length - Mating: 0.240" (6.10mm)
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.335" (8.51mm)
Contact Length - Post: 0.114" (2.90mm)
Contact Shape: Square
Part Status: Active
Contact Finish - Post: Tin
Contact Finish - Mating: Gold
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Gray
Contact Material: Copper Alloy
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Latch Lock/Eject Hooks, Long
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Cable/Wire
Number of Rows: 2
Number of Positions: 60
Mounting Type: Through Hole, Right Angle
Connector Type: Header
Features: Keying Slot, Mounting Flange
Packaging: Bulk
Description: CONN HEADER R/A 60POS 2.54MM
Contact Length - Mating: 0.240" (6.10mm)
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.335" (8.51mm)
Contact Length - Post: 0.114" (2.90mm)
Contact Shape: Square
Part Status: Active
Contact Finish - Post: Tin
Contact Finish - Mating: Gold
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Gray
Contact Material: Copper Alloy
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Latch Lock/Eject Hooks, Long
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Cable/Wire
Number of Rows: 2
Number of Positions: 60
Mounting Type: Through Hole, Right Angle
Connector Type: Header
Features: Keying Slot, Mounting Flange
Packaging: Bulk
auf Bestellung 16 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 2+ | 10.21 EUR |
| 09185606903 |
|
Hersteller: HARTING
Headers & Wire Housings SEK-18 SV ML STD ANG29 RLG 60P PL2
Headers & Wire Housings SEK-18 SV ML STD ANG29 RLG 60P PL2
auf Bestellung 36 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 11.11 EUR |
| 10+ | 10.56 EUR |
| 50+ | 7.83 EUR |
| 100+ | 7.46 EUR |
| 500+ | 6.65 EUR |
| 1000+ | 6.34 EUR |
