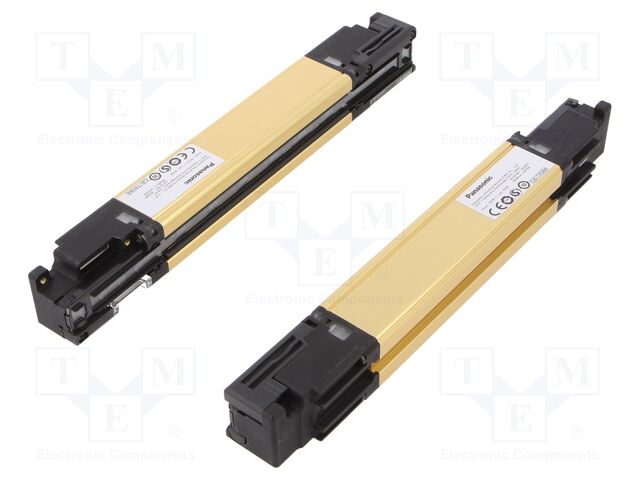

SF4D-H12 PANASONIC
Hersteller: PANASONIC
Category: Light Curtains
Description: Safety light curtain; H: 230mm; 0÷15m; IP67; SF4D; 24VDC; cables
Range: 0...15m
Type of sensor: safety light curtain
Resolution: 20mm
Kind of output 2: NPN; PNP
Supply voltage: 24V DC
Kind of output 1: NPN; PNP
Manufacturer series: SF4D
Switched current, max.: 350mA
Safety category: 4
Related items: MS-SFD-1-5; MS-SFD-3-6; SF4D-TM1; SF-C13; SF-C21; SFD-CCB3; SFD-CCB3-MU; SFD-CCB5-S; SFD-CCB7; SFD-CCB7-MU; SFD-CCB10-S; SFD-WL3
Operation mode: transmitter-receiver
Operating temperature: -10...55°C
Enclosure material: aluminium
Kit contents: receiver; transmitter
Connection: cables
Sensors features: hand protection
Additional functions: fix blanking function; floating blanking function; IO-Link; mutting function; no dead zone; the possibility of optical synchronization
Height: 230mm
Software: download from manufacturers website
IP rating: IP67
Produktrezensionen
Produktbewertung abgeben
Technische Details SF4D-H12 PANASONIC
Category: Light Curtains, Description: Safety light curtain; H: 230mm; 0÷15m; IP67; SF4D; 24VDC; cables, Range: 0...15m, Type of sensor: safety light curtain, Resolution: 20mm, Kind of output 2: NPN; PNP, Supply voltage: 24V DC, Kind of output 1: NPN; PNP, Manufacturer series: SF4D, Switched current, max.: 350mA, Safety category: 4, Related items: MS-SFD-1-5; MS-SFD-3-6; SF4D-TM1; SF-C13; SF-C21; SFD-CCB3; SFD-CCB3-MU; SFD-CCB5-S; SFD-CCB7; SFD-CCB7-MU; SFD-CCB10-S; SFD-WL3, Operation mode: transmitter-receiver, Operating temperature: -10...55°C, Enclosure material: aluminium, Kit contents: receiver; transmitter, Connection: cables, Sensors features: hand protection, Additional functions: fix blanking function; floating blanking function; IO-Link; mutting function; no dead zone; the possibility of optical synchronization, Height: 230mm, Software: download from manufacturers website, IP rating: IP67.
Weitere Produktangebote SF4D-H12 nach Preis ab 924.61 EUR bis 1736.48 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||
|---|---|---|---|---|---|---|---|
 |
SF4D-H12 | Panasonic Industrial Automation Sales |
Description: LIGHT CURTAIN HAND 25MM Features: Blanking, Muting Function Packaging: Box Operating Temperature: -10°C ~ 55°C Voltage - Supply: 24VDC Ingress Protection: IP65/IP67 - Dust Tight, Water Resistant, Waterproof, NEMA 13 Part Status: Active Protection: Hand Detection Capability: 25mm Protective Height: 230mm Beam Pitch: 20mm Operating Range: 0.2m ~ 9.0m, 0.8m ~ 15.0m Number of Beams: 12 |
auf Bestellung 2 Stücke: Lieferzeit 10-14 Tag (e) |
|
||
| SF4D-H12 | Panasonic |
SF4D-H12 |
auf Bestellung 1 Stücke: Lieferzeit 14-21 Tag (e) |
|
| SF4D-H12 |
|
Hersteller: Panasonic Industrial Automation Sales
Description: LIGHT CURTAIN HAND 25MM
Features: Blanking, Muting Function
Packaging: Box
Operating Temperature: -10°C ~ 55°C
Voltage - Supply: 24VDC
Ingress Protection: IP65/IP67 - Dust Tight, Water Resistant, Waterproof, NEMA 13
Part Status: Active
Protection: Hand
Detection Capability: 25mm
Protective Height: 230mm
Beam Pitch: 20mm
Operating Range: 0.2m ~ 9.0m, 0.8m ~ 15.0m
Number of Beams: 12
Description: LIGHT CURTAIN HAND 25MM
Features: Blanking, Muting Function
Packaging: Box
Operating Temperature: -10°C ~ 55°C
Voltage - Supply: 24VDC
Ingress Protection: IP65/IP67 - Dust Tight, Water Resistant, Waterproof, NEMA 13
Part Status: Active
Protection: Hand
Detection Capability: 25mm
Protective Height: 230mm
Beam Pitch: 20mm
Operating Range: 0.2m ~ 9.0m, 0.8m ~ 15.0m
Number of Beams: 12
auf Bestellung 2 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 1736.48 EUR |
| SF4D-H12 |
|
Hersteller: Panasonic
SF4D-H12
SF4D-H12
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 924.61 EUR |
