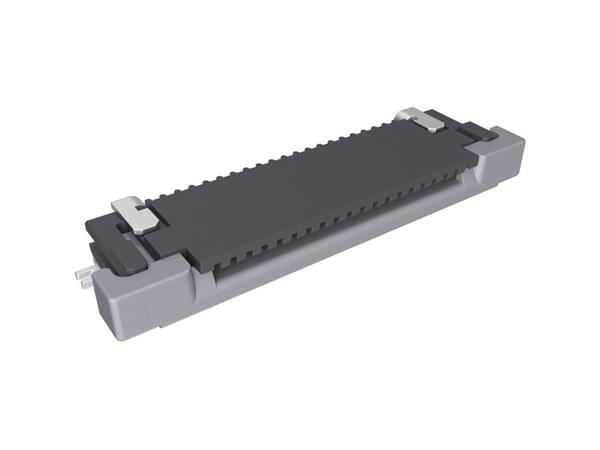

SFV20R-4STE1HLF Amphenol ICC (FCI)
Hersteller: Amphenol ICC (FCI)Description: CONN FPC TOP 20POS 0.5MM R/A
Packaging: Cut Tape (CT)
Features: Zero Insertion Force (ZIF)
Contact Finish: Tin
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 20
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 105°C
Termination: Solder
Height Above Board: 0.071" (1.80mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.33mm
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Cable End Type: Tapered
Flat Flex Type: FPC
Connector/Contact Type: Contacts, Top
Part Status: Active
auf Bestellung 1954 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 21+ | 0.84 EUR |
| 25+ | 0.71 EUR |
| 27+ | 0.67 EUR |
| 50+ | 0.63 EUR |
| 100+ | 0.60 EUR |
| 250+ | 0.57 EUR |
| 500+ | 0.54 EUR |
| 1000+ | 0.51 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details SFV20R-4STE1HLF Amphenol ICC (FCI)
Description: CONN FPC TOP 20POS 0.5MM R/A, Packaging: Tape & Reel (TR), Features: Zero Insertion Force (ZIF), Contact Finish: Tin, Voltage Rating: 50V, Mounting Type: Surface Mount, Right Angle, Number of Positions: 20, Pitch: 0.020" (0.50mm), Operating Temperature: -55°C ~ 105°C, Termination: Solder, Height Above Board: 0.071" (1.80mm), Locking Feature: Slide Lock, Material Flammability Rating: UL94 V-0, Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free, Contact Material: Phosphor Bronze, FFC, FCB Thickness: 0.33mm, Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free, Cable End Type: Tapered, Flat Flex Type: FPC, Connector/Contact Type: Contacts, Top, Part Status: Active.
Weitere Produktangebote SFV20R-4STE1HLF nach Preis ab 0.38 EUR bis 0.93 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SFV20R-4STE1HLF | Hersteller : Amphenol FCI |
FFC & FPC Connectors 0.50mm Flex Connector, SFV-R Series, 20 Position, Top Side Contact, Side Entry Surface Mount ZIF Connector, Halogen Free, Lead Free with Cable-Lock |
auf Bestellung 3486 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
| SFV20R-4STE1HLF | Hersteller : AMPHENOL |
SFV20R4STE1HLF-0 Connectors FFC/FPC 0.5mm |
Produkt ist nicht verfügbar |
||||||||||||||||
|
|
SFV20R-4STE1HLF | Hersteller : Amphenol ICC (FCI) |
Description: CONN FPC TOP 20POS 0.5MM R/A Packaging: Tape & Reel (TR) Features: Zero Insertion Force (ZIF) Contact Finish: Tin Voltage Rating: 50V Mounting Type: Surface Mount, Right Angle Number of Positions: 20 Pitch: 0.020" (0.50mm) Operating Temperature: -55°C ~ 105°C Termination: Solder Height Above Board: 0.071" (1.80mm) Locking Feature: Slide Lock Material Flammability Rating: UL94 V-0 Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free Contact Material: Phosphor Bronze FFC, FCB Thickness: 0.33mm Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free Cable End Type: Tapered Flat Flex Type: FPC Connector/Contact Type: Contacts, Top Part Status: Active |
Produkt ist nicht verfügbar |
