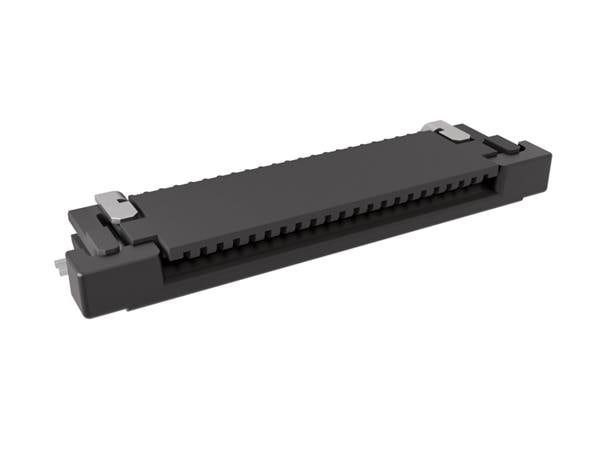

SFV22R-2STBE1HLF Amphenol FCI
Hersteller: Amphenol FCI
FFC & FPC Connectors 0.50mm Flex Connector, SFV-R Series, 22 Position, Top Side Contact, Side Entry Surface Mount ZIF Connector, Halogen Free, Lead Free, Gold Flash
| Anzahl | Privatkunde |
|---|---|
| 3+ | 1.05 EUR |
| 10+ | 0.88 EUR |
| 25+ | 0.79 EUR |
| 100+ | 0.75 EUR |
| 250+ | 0.67 EUR |
| 1000+ | 0.62 EUR |
| 3000+ | 0.57 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
10-14 Tag (e)
Mindestmenge:
3 Stücke
Produktrezensionen
Produktbewertung abgeben
Technische Details SFV22R-2STBE1HLF Amphenol FCI
Description: CONN FFC FPC TOP 22POS 0.5MM R/A, Features: Solder Retention, Zero Insertion Force (ZIF), Packaging: Tape & Reel (TR), Contact Finish: Gold, Voltage Rating: 50V, Mounting Type: Surface Mount, Right Angle, Number of Positions: 22, Pitch: 0.020" (0.50mm), Operating Temperature: -55°C ~ 105°C, Termination: Solder, Height Above Board: 0.071" (1.80mm), Locking Feature: Slide Lock, Material Flammability Rating: UL94 V-0, Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free, Contact Material: Phosphor Bronze, FFC, FCB Thickness: 0.30mm, 0.33mm, Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free, Cable End Type: Tapered, Flat Flex Type: FFC, FPC, Connector/Contact Type: Contacts, Top, Part Status: Active.
Weitere Produktangebote SFV22R-2STBE1HLF nach Preis ab 0.75 EUR bis 1.21 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SFV22R-2STBE1HLF | Amphenol ICC (FCI) |
Description: CONN FFC FPC TOP 22POS 0.5MM R/A Features: Solder Retention, Zero Insertion Force (ZIF) Packaging: Cut Tape (CT) Contact Finish: Gold Voltage Rating: 50V Mounting Type: Surface Mount, Right Angle Number of Positions: 22 Pitch: 0.020" (0.50mm) Operating Temperature: -55°C ~ 105°C Termination: Solder Height Above Board: 0.071" (1.80mm) Locking Feature: Slide Lock Material Flammability Rating: UL94 V-0 Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free Contact Material: Phosphor Bronze FFC, FCB Thickness: 0.30mm, 0.33mm Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free Cable End Type: Tapered Flat Flex Type: FFC, FPC Connector/Contact Type: Contacts, Top Part Status: Active |
auf Bestellung 1943 Stücke: Lieferzeit 10-14 Tag (e) |
|
| SFV22R-2STBE1HLF |
|
Hersteller: Amphenol ICC (FCI)
Description: CONN FFC FPC TOP 22POS 0.5MM R/A
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Cut Tape (CT)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 22
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 105°C
Termination: Solder
Height Above Board: 0.071" (1.80mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm, 0.33mm
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Cable End Type: Tapered
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Top
Part Status: Active
Description: CONN FFC FPC TOP 22POS 0.5MM R/A
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Cut Tape (CT)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 22
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 105°C
Termination: Solder
Height Above Board: 0.071" (1.80mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm, 0.33mm
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Cable End Type: Tapered
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Top
Part Status: Active
auf Bestellung 1943 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 18+ | 1.21 EUR |
| 21+ | 1.04 EUR |
| 25+ | 0.96 EUR |
| 50+ | 0.92 EUR |
| 100+ | 0.88 EUR |
| 250+ | 0.82 EUR |
| 500+ | 0.79 EUR |
| 1000+ | 0.75 EUR |
