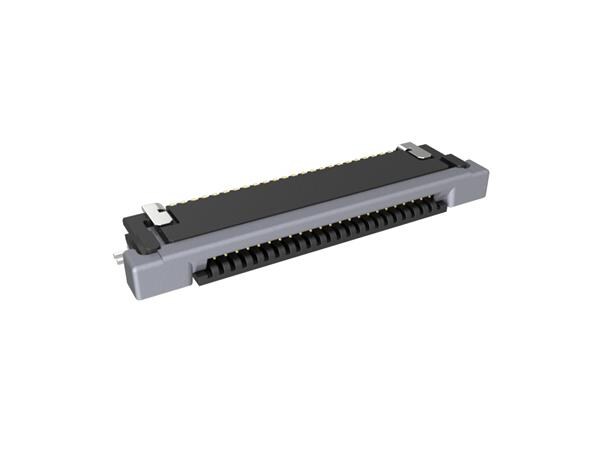

SFV24R-3STBE1HLF Amphenol FCI
Hersteller: Amphenol FCI
FFC & FPC Connectors 0.50mm Flex Connector, SFV-R Series, 24 Position, Bottom Side Contact, Side Entry Surface Mount ZIF Connector, Halogen Free, Lead Free with Cable-Lock, Gold Flash
| Anzahl | Preis |
|---|---|
| 6+ | 0.53 EUR |
| 10+ | 0.49 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details SFV24R-3STBE1HLF Amphenol FCI
Description: CONN FPC BOTTOM 24POS 0.5MM R/A, Mounting Type: Surface Mount, Right Angle, Voltage Rating: 50V, Contact Finish: Gold, Features: Solder Retention, Zero Insertion Force (ZIF), Packaging: Tape & Reel (TR), Part Status: Active, Connector/Contact Type: Contacts, Bottom, Flat Flex Type: FPC, Cable End Type: Notched, Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free, FFC, FCB Thickness: 0.30mm, Contact Material: Phosphor Bronze, Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free, Material Flammability Rating: UL94 V-0, Locking Feature: Slide Lock, Height Above Board: 0.071" (1.80mm), Termination: Solder, Operating Temperature: -55°C ~ 105°C, Pitch: 0.020" (0.50mm), Number of Positions: 24.
Weitere Produktangebote SFV24R-3STBE1HLF nach Preis ab 0.37 EUR bis 0.99 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SFV24R-3STBE1HLF | Amphenol ICC (FCI) |
Description: CONN FPC BOTTOM 24POS 0.5MM R/A Mounting Type: Surface Mount, Right Angle Voltage Rating: 50V Contact Finish: Gold Features: Solder Retention, Zero Insertion Force (ZIF) Packaging: Tape & Reel (TR) Part Status: Active Connector/Contact Type: Contacts, Bottom Flat Flex Type: FPC Cable End Type: Notched Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free FFC, FCB Thickness: 0.30mm Contact Material: Phosphor Bronze Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free Material Flammability Rating: UL94 V-0 Locking Feature: Slide Lock Height Above Board: 0.071" (1.80mm) Termination: Solder Operating Temperature: -55°C ~ 105°C Pitch: 0.020" (0.50mm) Number of Positions: 24 |
auf Bestellung 3000 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
SFV24R-3STBE1HLF | AMPHENOL COMMUNICATIONS SOLUTIONS |
Category: Connectors FFC/FPC 0.5mm Description: Connector: FFC/FPC; gold-plated; SMT; 500mA; 50V; SFV; PIN: 24; 0.5mm Operating temperature: -55...105°C Manufacturer series: SFV Family: FCI Type of connector: FFC/FPC Locking system: FlipLock Contact plating: gold-plated Body material: PPS Electrical mounting: SMT Flammability rating: UL94V-0 Tape pitch: 0.5mm Current rating: 0.5A Number of pins: 24 Rated voltage: 50V Spatial orientation: horizontal Connector variant: bottom contacts; with lock; ZIF Contact material: phosphor bronze Kind of package: cut from reel |
auf Bestellung 1154 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
|
|
SFV24R-3STBE1HLF | Amphenol ICC (FCI) |
Description: CONN FPC BOTTOM 24POS 0.5MM R/A Features: Solder Retention, Zero Insertion Force (ZIF) Packaging: Cut Tape (CT) Contact Finish: Gold Voltage Rating: 50V Mounting Type: Surface Mount, Right Angle Number of Positions: 24 Pitch: 0.020" (0.50mm) Operating Temperature: -55°C ~ 105°C Termination: Solder Height Above Board: 0.071" (1.80mm) Locking Feature: Slide Lock Material Flammability Rating: UL94 V-0 Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free Contact Material: Phosphor Bronze FFC, FCB Thickness: 0.30mm Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free Cable End Type: Notched Flat Flex Type: FPC Connector/Contact Type: Contacts, Bottom Part Status: Active |
auf Bestellung 10190 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
SFV24R-3STBE1HLF | AMPHENOL COMMUNICATIONS SOLUTIONS |
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - SFV24R-3STBE1HLF - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 24 Kontakt(e), Buchse, FCI SFV-R Series tariffCode: 85366930 rohsCompliant: YES FFC/FPC-Dicke: 0.33mm Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze isCanonical: Y Ausführung: Buchse usEccn: EAR99 Anzahl der Kontakte: 24Kontakt(e) euEccn: NLR Kontaktposition: Unten Produktpalette: FCI SFV-R Series productTraceability: No Kontaktanschluss: Oberflächenmontage, gerade Anzahl der Reihen: 1 Reihe Rastermaß: 0.5mm SVHC: No SVHC (12-Jan-2017) |
auf Bestellung 4668 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH | ||||||||||||||||
|
|
SFV24R-3STBE1HLF | AMPHENOL COMMUNICATIONS SOLUTIONS |
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - SFV24R-3STBE1HLF - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 24 Kontakt(e), Buchse, FCI SFV-R Series tariffCode: 85366930 rohsCompliant: YES FFC/FPC-Dicke: 0.33mm Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze isCanonical: N Ausführung: Buchse usEccn: EAR99 Anzahl der Kontakte: 24Kontakt(e) euEccn: NLR Kontaktposition: Unten Produktpalette: FCI SFV-R Series productTraceability: No Kontaktanschluss: Oberflächenmontage, gerade Anzahl der Reihen: 1 Reihe Rastermaß: 0.5mm SVHC: No SVHC (12-Jan-2017) |
auf Bestellung 3000 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| SFV24R-3STBE1HLF |
|
Hersteller: Amphenol ICC (FCI)
Description: CONN FPC BOTTOM 24POS 0.5MM R/A
Mounting Type: Surface Mount, Right Angle
Voltage Rating: 50V
Contact Finish: Gold
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Tape & Reel (TR)
Part Status: Active
Connector/Contact Type: Contacts, Bottom
Flat Flex Type: FPC
Cable End Type: Notched
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
FFC, FCB Thickness: 0.30mm
Contact Material: Phosphor Bronze
Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Material Flammability Rating: UL94 V-0
Locking Feature: Slide Lock
Height Above Board: 0.071" (1.80mm)
Termination: Solder
Operating Temperature: -55°C ~ 105°C
Pitch: 0.020" (0.50mm)
Number of Positions: 24
Description: CONN FPC BOTTOM 24POS 0.5MM R/A
Mounting Type: Surface Mount, Right Angle
Voltage Rating: 50V
Contact Finish: Gold
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Tape & Reel (TR)
Part Status: Active
Connector/Contact Type: Contacts, Bottom
Flat Flex Type: FPC
Cable End Type: Notched
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
FFC, FCB Thickness: 0.30mm
Contact Material: Phosphor Bronze
Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Material Flammability Rating: UL94 V-0
Locking Feature: Slide Lock
Height Above Board: 0.071" (1.80mm)
Termination: Solder
Operating Temperature: -55°C ~ 105°C
Pitch: 0.020" (0.50mm)
Number of Positions: 24
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)| Anzahl | Preis |
|---|---|
| 3000+ | 0.56 EUR |
| SFV24R-3STBE1HLF |
|
Hersteller: AMPHENOL COMMUNICATIONS SOLUTIONS
Category: Connectors FFC/FPC 0.5mm
Description: Connector: FFC/FPC; gold-plated; SMT; 500mA; 50V; SFV; PIN: 24; 0.5mm
Operating temperature: -55...105°C
Manufacturer series: SFV
Family: FCI
Type of connector: FFC/FPC
Locking system: FlipLock
Contact plating: gold-plated
Body material: PPS
Electrical mounting: SMT
Flammability rating: UL94V-0
Tape pitch: 0.5mm
Current rating: 0.5A
Number of pins: 24
Rated voltage: 50V
Spatial orientation: horizontal
Connector variant: bottom contacts; with lock; ZIF
Contact material: phosphor bronze
Kind of package: cut from reel
Category: Connectors FFC/FPC 0.5mm
Description: Connector: FFC/FPC; gold-plated; SMT; 500mA; 50V; SFV; PIN: 24; 0.5mm
Operating temperature: -55...105°C
Manufacturer series: SFV
Family: FCI
Type of connector: FFC/FPC
Locking system: FlipLock
Contact plating: gold-plated
Body material: PPS
Electrical mounting: SMT
Flammability rating: UL94V-0
Tape pitch: 0.5mm
Current rating: 0.5A
Number of pins: 24
Rated voltage: 50V
Spatial orientation: horizontal
Connector variant: bottom contacts; with lock; ZIF
Contact material: phosphor bronze
Kind of package: cut from reel
auf Bestellung 1154 Stücke:
Lieferzeit 14-21 Tag (e)| Anzahl | Preis |
|---|---|
| 107+ | 0.67 EUR |
| 153+ | 0.47 EUR |
| 174+ | 0.41 EUR |
| 177+ | 0.4 EUR |
| 500+ | 0.37 EUR |
| SFV24R-3STBE1HLF |
|
Hersteller: Amphenol ICC (FCI)
Description: CONN FPC BOTTOM 24POS 0.5MM R/A
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Cut Tape (CT)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 24
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 105°C
Termination: Solder
Height Above Board: 0.071" (1.80mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Cable End Type: Notched
Flat Flex Type: FPC
Connector/Contact Type: Contacts, Bottom
Part Status: Active
Description: CONN FPC BOTTOM 24POS 0.5MM R/A
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Cut Tape (CT)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 24
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 105°C
Termination: Solder
Height Above Board: 0.071" (1.80mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Cable End Type: Notched
Flat Flex Type: FPC
Connector/Contact Type: Contacts, Bottom
Part Status: Active
auf Bestellung 10190 Stücke:
Lieferzeit 10-14 Tag (e)| Anzahl | Preis |
|---|---|
| 18+ | 0.99 EUR |
| 22+ | 0.84 EUR |
| 25+ | 0.78 EUR |
| 50+ | 0.75 EUR |
| 100+ | 0.71 EUR |
| 250+ | 0.67 EUR |
| 500+ | 0.63 EUR |
| 1000+ | 0.6 EUR |
| SFV24R-3STBE1HLF |
|
Hersteller: AMPHENOL COMMUNICATIONS SOLUTIONS
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - SFV24R-3STBE1HLF - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 24 Kontakt(e), Buchse, FCI SFV-R Series
tariffCode: 85366930
rohsCompliant: YES
FFC/FPC-Dicke: 0.33mm
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Ausführung: Buchse
usEccn: EAR99
Anzahl der Kontakte: 24Kontakt(e)
euEccn: NLR
Kontaktposition: Unten
Produktpalette: FCI SFV-R Series
productTraceability: No
Kontaktanschluss: Oberflächenmontage, gerade
Anzahl der Reihen: 1 Reihe
Rastermaß: 0.5mm
SVHC: No SVHC (12-Jan-2017)
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - SFV24R-3STBE1HLF - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 24 Kontakt(e), Buchse, FCI SFV-R Series
tariffCode: 85366930
rohsCompliant: YES
FFC/FPC-Dicke: 0.33mm
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Ausführung: Buchse
usEccn: EAR99
Anzahl der Kontakte: 24Kontakt(e)
euEccn: NLR
Kontaktposition: Unten
Produktpalette: FCI SFV-R Series
productTraceability: No
Kontaktanschluss: Oberflächenmontage, gerade
Anzahl der Reihen: 1 Reihe
Rastermaß: 0.5mm
SVHC: No SVHC (12-Jan-2017)
auf Bestellung 4668 Stücke:
Lieferzeit 14-21 Tag (e)Im Einkaufswagen Stück im Wert von UAH
| SFV24R-3STBE1HLF |
|
Hersteller: AMPHENOL COMMUNICATIONS SOLUTIONS
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - SFV24R-3STBE1HLF - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 24 Kontakt(e), Buchse, FCI SFV-R Series
tariffCode: 85366930
rohsCompliant: YES
FFC/FPC-Dicke: 0.33mm
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: N
Ausführung: Buchse
usEccn: EAR99
Anzahl der Kontakte: 24Kontakt(e)
euEccn: NLR
Kontaktposition: Unten
Produktpalette: FCI SFV-R Series
productTraceability: No
Kontaktanschluss: Oberflächenmontage, gerade
Anzahl der Reihen: 1 Reihe
Rastermaß: 0.5mm
SVHC: No SVHC (12-Jan-2017)
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - SFV24R-3STBE1HLF - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 24 Kontakt(e), Buchse, FCI SFV-R Series
tariffCode: 85366930
rohsCompliant: YES
FFC/FPC-Dicke: 0.33mm
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: N
Ausführung: Buchse
usEccn: EAR99
Anzahl der Kontakte: 24Kontakt(e)
euEccn: NLR
Kontaktposition: Unten
Produktpalette: FCI SFV-R Series
productTraceability: No
Kontaktanschluss: Oberflächenmontage, gerade
Anzahl der Reihen: 1 Reihe
Rastermaß: 0.5mm
SVHC: No SVHC (12-Jan-2017)
auf Bestellung 3000 Stücke:
Lieferzeit 14-21 Tag (e)Im Einkaufswagen Stück im Wert von UAH
