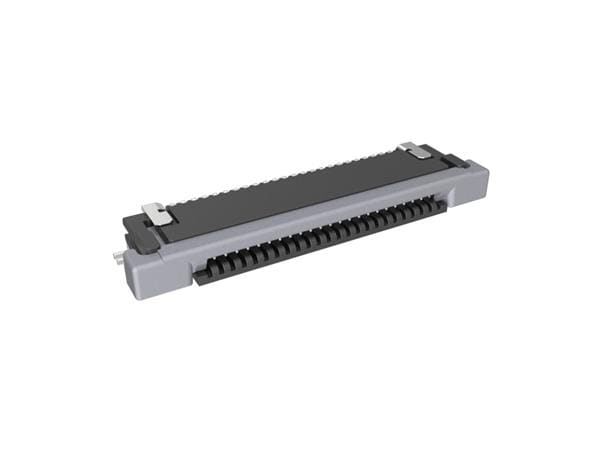

SFV24R-3STE1HLF Amphenol FCI
Hersteller: Amphenol FCI
FFC & FPC Connectors 0.50mm Flex Connector, SFV-R Series, 24 Position, Bottom Side Contact, Side Entry Surface Mount ZIF Connector, Halogen Free, Lead Free with Cable-Lock
| Anzahl | Preis |
|---|---|
| 4+ | 0.74 EUR |
| 10+ | 0.69 EUR |
| 25+ | 0.56 EUR |
| 100+ | 0.51 EUR |
| 250+ | 0.45 EUR |
| 1000+ | 0.4 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details SFV24R-3STE1HLF Amphenol FCI
Description: CONN FPC BOTTOM 24POS 0.5MM R/A, Features: Solder Retention, Zero Insertion Force (ZIF), Packaging: Tape & Reel (TR), Contact Finish: Tin, Voltage Rating: 50V, Mounting Type: Surface Mount, Right Angle, Number of Positions: 24, Pitch: 0.020" (0.50mm), Operating Temperature: -55°C ~ 105°C, Termination: Solder, Height Above Board: 0.071" (1.80mm), Locking Feature: Slide Lock, Material Flammability Rating: UL94 V-0, Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free, Contact Material: Phosphor Bronze, FFC, FCB Thickness: 0.30mm, Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free, Cable End Type: Notched, Flat Flex Type: FPC, Connector/Contact Type: Contacts, Bottom, Part Status: Active.
Weitere Produktangebote SFV24R-3STE1HLF nach Preis ab 0.54 EUR bis 0.88 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SFV24R-3STE1HLF | Amphenol ICC (FCI) |
Description: CONN FPC BOTTOM 24POS 0.5MM R/A Packaging: Cut Tape (CT) Features: Solder Retention, Zero Insertion Force (ZIF) Contact Finish: Tin Voltage Rating: 50V Mounting Type: Surface Mount, Right Angle Number of Positions: 24 Pitch: 0.020" (0.50mm) Operating Temperature: -55°C ~ 105°C Termination: Solder Height Above Board: 0.071" (1.80mm) Locking Feature: Slide Lock Material Flammability Rating: UL94 V-0 Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free Contact Material: Phosphor Bronze FFC, FCB Thickness: 0.30mm Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free Cable End Type: Notched Flat Flex Type: FPC Connector/Contact Type: Contacts, Bottom Part Status: Active |
auf Bestellung 3885 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
SFV24R-3STE1HLF | AMPHENOL COMMUNICATIONS SOLUTIONS |
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - SFV24R-3STE1HLF - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 24 Kontakt(e), Buchse, SFV-R Series tariffCode: 85366930 rohsCompliant: YES FFC/FPC-Dicke: 0.33mm Kontaktüberzug: Verzinnte Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze isCanonical: Y Ausführung: Buchse usEccn: EAR99 Anzahl der Kontakte: 24Kontakt(e) euEccn: NLR Kontaktposition: Unten Produktpalette: SFV-R Series productTraceability: No Kontaktanschluss: Oberflächenmontage, gerade Anzahl der Reihen: 1 Reihe Rastermaß: 0.5mm SVHC: No SVHC (21-Jan-2025) |
auf Bestellung 5789 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH | ||||||||||||||||
| SFV24R-3STE1HLF | AFCI |
|
auf Bestellung 335 Stücke: Lieferzeit 21-28 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| SFV24R-3STE1HLF |
|
Hersteller: Amphenol ICC (FCI)
Description: CONN FPC BOTTOM 24POS 0.5MM R/A
Packaging: Cut Tape (CT)
Features: Solder Retention, Zero Insertion Force (ZIF)
Contact Finish: Tin
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 24
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 105°C
Termination: Solder
Height Above Board: 0.071" (1.80mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Cable End Type: Notched
Flat Flex Type: FPC
Connector/Contact Type: Contacts, Bottom
Part Status: Active
Description: CONN FPC BOTTOM 24POS 0.5MM R/A
Packaging: Cut Tape (CT)
Features: Solder Retention, Zero Insertion Force (ZIF)
Contact Finish: Tin
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 24
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 105°C
Termination: Solder
Height Above Board: 0.071" (1.80mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Cable End Type: Notched
Flat Flex Type: FPC
Connector/Contact Type: Contacts, Bottom
Part Status: Active
auf Bestellung 3885 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 20+ | 0.88 EUR |
| 24+ | 0.74 EUR |
| 26+ | 0.7 EUR |
| 50+ | 0.66 EUR |
| 100+ | 0.63 EUR |
| 250+ | 0.59 EUR |
| 500+ | 0.56 EUR |
| 1000+ | 0.54 EUR |
| SFV24R-3STE1HLF |
|
Hersteller: AMPHENOL COMMUNICATIONS SOLUTIONS
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - SFV24R-3STE1HLF - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 24 Kontakt(e), Buchse, SFV-R Series
tariffCode: 85366930
rohsCompliant: YES
FFC/FPC-Dicke: 0.33mm
Kontaktüberzug: Verzinnte Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Ausführung: Buchse
usEccn: EAR99
Anzahl der Kontakte: 24Kontakt(e)
euEccn: NLR
Kontaktposition: Unten
Produktpalette: SFV-R Series
productTraceability: No
Kontaktanschluss: Oberflächenmontage, gerade
Anzahl der Reihen: 1 Reihe
Rastermaß: 0.5mm
SVHC: No SVHC (21-Jan-2025)
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - SFV24R-3STE1HLF - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 24 Kontakt(e), Buchse, SFV-R Series
tariffCode: 85366930
rohsCompliant: YES
FFC/FPC-Dicke: 0.33mm
Kontaktüberzug: Verzinnte Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Ausführung: Buchse
usEccn: EAR99
Anzahl der Kontakte: 24Kontakt(e)
euEccn: NLR
Kontaktposition: Unten
Produktpalette: SFV-R Series
productTraceability: No
Kontaktanschluss: Oberflächenmontage, gerade
Anzahl der Reihen: 1 Reihe
Rastermaß: 0.5mm
SVHC: No SVHC (21-Jan-2025)
auf Bestellung 5789 Stücke:
Lieferzeit 14-21 Tag (e)
| SFV24R-3STE1HLF |
|
Hersteller: AFCI
auf Bestellung 335 Stücke:
Lieferzeit 21-28 Tag (e)
