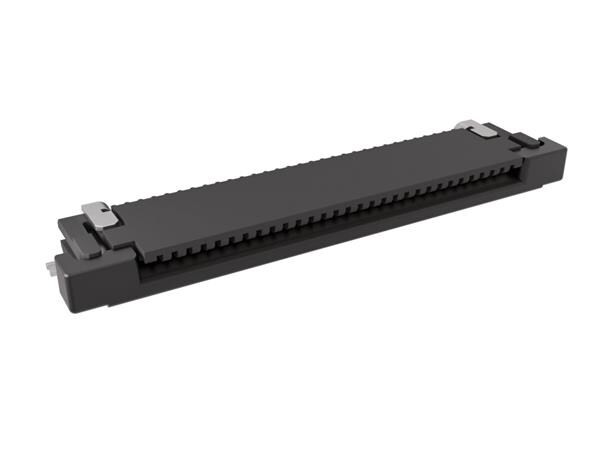

SFV30R-2STE1HLF Amphenol ICC (FCI)
Hersteller: Amphenol ICC (FCI)
Description: CONN FFC FPC TOP 30POS 0.5MM R/A
Packaging: Tape & Reel (TR)
Features: Zero Insertion Force (ZIF)
Contact Finish: Tin
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 30
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 105°C
Termination: Solder
Height Above Board: 0.071" (1.80mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm, 0.33mm
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Cable End Type: Notched
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Top
Part Status: Active
Produktrezensionen
Produktbewertung abgeben
Technische Details SFV30R-2STE1HLF Amphenol ICC (FCI)
Description: CONN FFC FPC TOP 30POS 0.5MM R/A, Packaging: Tape & Reel (TR), Features: Zero Insertion Force (ZIF), Contact Finish: Tin, Voltage Rating: 50V, Mounting Type: Surface Mount, Right Angle, Number of Positions: 30, Pitch: 0.020" (0.50mm), Operating Temperature: -55°C ~ 105°C, Termination: Solder, Height Above Board: 0.071" (1.80mm), Locking Feature: Slide Lock, Material Flammability Rating: UL94 V-0, Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free, Contact Material: Phosphor Bronze, FFC, FCB Thickness: 0.30mm, 0.33mm, Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free, Cable End Type: Notched, Flat Flex Type: FFC, FPC, Connector/Contact Type: Contacts, Top, Part Status: Active.
Weitere Produktangebote SFV30R-2STE1HLF nach Preis ab 0.56 EUR bis 1.13 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SFV30R-2STE1HLF | Amphenol FCI |
FFC & FPC Connectors 0.50mm Flex Connector, SFV-R Series, 30 Position, Top Side Contact, Side Entry Surface Mount ZIF Connector, Halogen Free, Lead Free |
auf Bestellung 8924 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
|
|
SFV30R-2STE1HLF | Amphenol ICC (FCI) |
Description: CONN FFC FPC TOP 30POS 0.5MM R/A Packaging: Cut Tape (CT) Features: Zero Insertion Force (ZIF) Contact Finish: Tin Voltage Rating: 50V Mounting Type: Surface Mount, Right Angle Number of Positions: 30 Pitch: 0.020" (0.50mm) Operating Temperature: -55°C ~ 105°C Termination: Solder Height Above Board: 0.071" (1.80mm) Locking Feature: Slide Lock Material Flammability Rating: UL94 V-0 Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free Contact Material: Phosphor Bronze FFC, FCB Thickness: 0.30mm, 0.33mm Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free Cable End Type: Notched Flat Flex Type: FFC, FPC Connector/Contact Type: Contacts, Top Part Status: Active |
auf Bestellung 5011 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
SFV30R-2STE1HLF | AMPHENOL COMMUNICATIONS SOLUTIONS |
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - SFV30R-2STE1HLF - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 30 Kontakt(e), Buchse, FCI 58EF SFV-R Series tariffCode: 85366930 rohsCompliant: YES FFC/FPC-Dicke: 0.3mm Kontaktüberzug: Verzinnte Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze isCanonical: Y Ausführung: Buchse usEccn: EAR99 Anzahl der Kontakte: 30Kontakt(e) euEccn: NLR Kontaktposition: Oben Produktpalette: FCI 58EF SFV-R Series productTraceability: No Kontaktanschluss: Oberflächenmontage, gerade Anzahl der Reihen: 1 Reihe Rastermaß: 0.5mm SVHC: No SVHC (21-Jan-2025) |
auf Bestellung 2862 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH | ||||||||||||||||
| SFV30R-2STE1HLF | AFCI |
|
auf Bestellung 1462 Stücke: Lieferzeit 21-28 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| SFV30R-2STE1HLF |
|
Hersteller: Amphenol FCI
FFC & FPC Connectors 0.50mm Flex Connector, SFV-R Series, 30 Position, Top Side Contact, Side Entry Surface Mount ZIF Connector, Halogen Free, Lead Free
FFC & FPC Connectors 0.50mm Flex Connector, SFV-R Series, 30 Position, Top Side Contact, Side Entry Surface Mount ZIF Connector, Halogen Free, Lead Free
auf Bestellung 8924 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 5+ | 0.7 EUR |
| 10+ | 0.59 EUR |
| 100+ | 0.56 EUR |
| SFV30R-2STE1HLF |
|
Hersteller: Amphenol ICC (FCI)
Description: CONN FFC FPC TOP 30POS 0.5MM R/A
Packaging: Cut Tape (CT)
Features: Zero Insertion Force (ZIF)
Contact Finish: Tin
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 30
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 105°C
Termination: Solder
Height Above Board: 0.071" (1.80mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm, 0.33mm
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Cable End Type: Notched
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Top
Part Status: Active
Description: CONN FFC FPC TOP 30POS 0.5MM R/A
Packaging: Cut Tape (CT)
Features: Zero Insertion Force (ZIF)
Contact Finish: Tin
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 30
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 105°C
Termination: Solder
Height Above Board: 0.071" (1.80mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm, 0.33mm
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Cable End Type: Notched
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Top
Part Status: Active
auf Bestellung 5011 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 16+ | 1.13 EUR |
| 19+ | 0.96 EUR |
| 25+ | 0.9 EUR |
| 50+ | 0.86 EUR |
| 100+ | 0.81 EUR |
| 250+ | 0.76 EUR |
| 500+ | 0.73 EUR |
| 1000+ | 0.69 EUR |
| SFV30R-2STE1HLF |
|
Hersteller: AMPHENOL COMMUNICATIONS SOLUTIONS
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - SFV30R-2STE1HLF - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 30 Kontakt(e), Buchse, FCI 58EF SFV-R Series
tariffCode: 85366930
rohsCompliant: YES
FFC/FPC-Dicke: 0.3mm
Kontaktüberzug: Verzinnte Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Ausführung: Buchse
usEccn: EAR99
Anzahl der Kontakte: 30Kontakt(e)
euEccn: NLR
Kontaktposition: Oben
Produktpalette: FCI 58EF SFV-R Series
productTraceability: No
Kontaktanschluss: Oberflächenmontage, gerade
Anzahl der Reihen: 1 Reihe
Rastermaß: 0.5mm
SVHC: No SVHC (21-Jan-2025)
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - SFV30R-2STE1HLF - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 30 Kontakt(e), Buchse, FCI 58EF SFV-R Series
tariffCode: 85366930
rohsCompliant: YES
FFC/FPC-Dicke: 0.3mm
Kontaktüberzug: Verzinnte Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Ausführung: Buchse
usEccn: EAR99
Anzahl der Kontakte: 30Kontakt(e)
euEccn: NLR
Kontaktposition: Oben
Produktpalette: FCI 58EF SFV-R Series
productTraceability: No
Kontaktanschluss: Oberflächenmontage, gerade
Anzahl der Reihen: 1 Reihe
Rastermaß: 0.5mm
SVHC: No SVHC (21-Jan-2025)
auf Bestellung 2862 Stücke:
Lieferzeit 14-21 Tag (e)
| SFV30R-2STE1HLF |
|
Hersteller: AFCI
auf Bestellung 1462 Stücke:
Lieferzeit 21-28 Tag (e)
