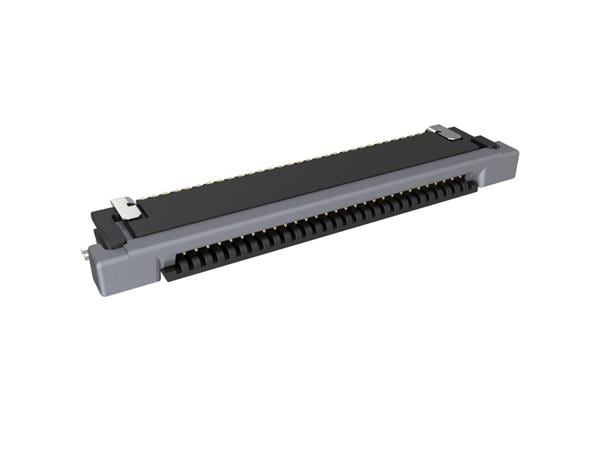

SFV30R-3STBE1HLF Amphenol ICC (FCI)
Hersteller: Amphenol ICC (FCI)
Description: CONN FPC BOTTOM 30POS 0.5MM R/A
Packaging: Tape & Reel (TR)
Features: Zero Insertion Force (ZIF)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 30
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 105°C
Termination: Solder
Height Above Board: 0.071" (1.80mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm, 0.33mm
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Cable End Type: Straight, Tapered
Flat Flex Type: FPC
Connector/Contact Type: Contacts, Bottom
Part Status: Active
| Anzahl | Preis |
|---|---|
| 3000+ | 0.67 EUR |
| 6000+ | 0.63 EUR |
| 9000+ | 0.62 EUR |
| 15000+ | 0.59 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details SFV30R-3STBE1HLF Amphenol ICC (FCI)
Description: CONN FPC BOTTOM 30POS 0.5MM R/A, Packaging: Tape & Reel (TR), Features: Zero Insertion Force (ZIF), Contact Finish: Gold, Voltage Rating: 50V, Mounting Type: Surface Mount, Right Angle, Number of Positions: 30, Pitch: 0.020" (0.50mm), Operating Temperature: -55°C ~ 105°C, Termination: Solder, Height Above Board: 0.071" (1.80mm), Locking Feature: Slide Lock, Material Flammability Rating: UL94 V-0, Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free, Contact Material: Phosphor Bronze, FFC, FCB Thickness: 0.30mm, 0.33mm, Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free, Cable End Type: Straight, Tapered, Flat Flex Type: FPC, Connector/Contact Type: Contacts, Bottom, Part Status: Active.
Weitere Produktangebote SFV30R-3STBE1HLF nach Preis ab 0.48 EUR bis 1.18 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SFV30R-3STBE1HLF | AMPHENOL COMMUNICATIONS SOLUTIONS |
Category: Connectors FFC/FPC 0.5mm Description: Connector: FFC/FPC; gold-plated; SMT; 500mA; 50V; SFV; PIN: 30; 0.5mm Type of connector: FFC/FPC Contact plating: gold-plated Electrical mounting: SMT Current rating: 0.5A Rated voltage: 50V Manufacturer series: SFV Number of pins: 30 Body material: PPS Contact material: phosphor bronze Tape pitch: 0.5mm Spatial orientation: horizontal Connector variant: bottom contacts; with lock; ZIF Flammability rating: UL94V-0 Operating temperature: -55...105°C Locking system: FlipLock Family: FCI Kind of package: cut from reel |
auf Bestellung 4204 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||
 |
SFV30R-3STBE1HLF | Amphenol FCI |
FFC & FPC Connectors 0.50mm Flex Connector, SFV-R Series, 30 Position, Bottom Side Contact, Side Entry Surface Mount ZIF Connector, Halogen Free, Lead Free with Cable-Lock, Gold Flash |
auf Bestellung 5896 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
|
|
SFV30R-3STBE1HLF | Amphenol ICC (FCI) |
Description: CONN FPC BOTTOM 30POS 0.5MM R/A Features: Zero Insertion Force (ZIF) Packaging: Cut Tape (CT) Contact Finish: Gold Voltage Rating: 50V Mounting Type: Surface Mount, Right Angle Number of Positions: 30 Pitch: 0.020" (0.50mm) Operating Temperature: -55°C ~ 105°C Termination: Solder Height Above Board: 0.071" (1.80mm) Locking Feature: Slide Lock Material Flammability Rating: UL94 V-0 Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free Contact Material: Phosphor Bronze FFC, FCB Thickness: 0.30mm, 0.33mm Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free Cable End Type: Straight, Tapered Flat Flex Type: FPC Connector/Contact Type: Contacts, Bottom Part Status: Active |
auf Bestellung 18310 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
 |
SFV30R-3STBE1HLF | AMPHENOL COMMUNICATIONS SOLUTIONS |
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - SFV30R-3STBE1HLF - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 30 Kontakt(e), Buchse, FCI SFV-R Series tariffCode: 85366930 rohsCompliant: YES FFC/FPC-Dicke: 0.33mm Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze isCanonical: Y Ausführung: Buchse usEccn: EAR99 Anzahl der Kontakte: 30Kontakt(e) euEccn: NLR Kontaktposition: Unten Produktpalette: FCI SFV-R Series productTraceability: No Kontaktanschluss: Oberflächenmontage, gerade Anzahl der Reihen: 1 Reihe Rastermaß: 0.5mm SVHC: No SVHC (21-Jan-2025) |
auf Bestellung 1349 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| SFV30R-3STBE1HLF |
|
Hersteller: AMPHENOL COMMUNICATIONS SOLUTIONS
Category: Connectors FFC/FPC 0.5mm
Description: Connector: FFC/FPC; gold-plated; SMT; 500mA; 50V; SFV; PIN: 30; 0.5mm
Type of connector: FFC/FPC
Contact plating: gold-plated
Electrical mounting: SMT
Current rating: 0.5A
Rated voltage: 50V
Manufacturer series: SFV
Number of pins: 30
Body material: PPS
Contact material: phosphor bronze
Tape pitch: 0.5mm
Spatial orientation: horizontal
Connector variant: bottom contacts; with lock; ZIF
Flammability rating: UL94V-0
Operating temperature: -55...105°C
Locking system: FlipLock
Family: FCI
Kind of package: cut from reel
Category: Connectors FFC/FPC 0.5mm
Description: Connector: FFC/FPC; gold-plated; SMT; 500mA; 50V; SFV; PIN: 30; 0.5mm
Type of connector: FFC/FPC
Contact plating: gold-plated
Electrical mounting: SMT
Current rating: 0.5A
Rated voltage: 50V
Manufacturer series: SFV
Number of pins: 30
Body material: PPS
Contact material: phosphor bronze
Tape pitch: 0.5mm
Spatial orientation: horizontal
Connector variant: bottom contacts; with lock; ZIF
Flammability rating: UL94V-0
Operating temperature: -55...105°C
Locking system: FlipLock
Family: FCI
Kind of package: cut from reel
auf Bestellung 4204 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 91+ | 0.79 EUR |
| 107+ | 0.67 EUR |
| 114+ | 0.63 EUR |
| 120+ | 0.6 EUR |
| 127+ | 0.56 EUR |
| 250+ | 0.52 EUR |
| 500+ | 0.5 EUR |
| 600+ | 0.49 EUR |
| 1000+ | 0.48 EUR |
| SFV30R-3STBE1HLF |
|
Hersteller: Amphenol FCI
FFC & FPC Connectors 0.50mm Flex Connector, SFV-R Series, 30 Position, Bottom Side Contact, Side Entry Surface Mount ZIF Connector, Halogen Free, Lead Free with Cable-Lock, Gold Flash
FFC & FPC Connectors 0.50mm Flex Connector, SFV-R Series, 30 Position, Bottom Side Contact, Side Entry Surface Mount ZIF Connector, Halogen Free, Lead Free with Cable-Lock, Gold Flash
auf Bestellung 5896 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 3+ | 1.11 EUR |
| 10+ | 0.94 EUR |
| 25+ | 0.84 EUR |
| 100+ | 0.8 EUR |
| 250+ | 0.75 EUR |
| 500+ | 0.71 EUR |
| 1000+ | 0.62 EUR |
| SFV30R-3STBE1HLF |
|
Hersteller: Amphenol ICC (FCI)
Description: CONN FPC BOTTOM 30POS 0.5MM R/A
Features: Zero Insertion Force (ZIF)
Packaging: Cut Tape (CT)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 30
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 105°C
Termination: Solder
Height Above Board: 0.071" (1.80mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm, 0.33mm
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Cable End Type: Straight, Tapered
Flat Flex Type: FPC
Connector/Contact Type: Contacts, Bottom
Part Status: Active
Description: CONN FPC BOTTOM 30POS 0.5MM R/A
Features: Zero Insertion Force (ZIF)
Packaging: Cut Tape (CT)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 30
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 105°C
Termination: Solder
Height Above Board: 0.071" (1.80mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm, 0.33mm
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Cable End Type: Straight, Tapered
Flat Flex Type: FPC
Connector/Contact Type: Contacts, Bottom
Part Status: Active
auf Bestellung 18310 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 15+ | 1.18 EUR |
| 18+ | 0.99 EUR |
| 25+ | 0.93 EUR |
| 50+ | 0.89 EUR |
| 100+ | 0.85 EUR |
| 250+ | 0.79 EUR |
| 500+ | 0.75 EUR |
| 1000+ | 0.72 EUR |
| SFV30R-3STBE1HLF |
|
Hersteller: AMPHENOL COMMUNICATIONS SOLUTIONS
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - SFV30R-3STBE1HLF - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 30 Kontakt(e), Buchse, FCI SFV-R Series
tariffCode: 85366930
rohsCompliant: YES
FFC/FPC-Dicke: 0.33mm
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Ausführung: Buchse
usEccn: EAR99
Anzahl der Kontakte: 30Kontakt(e)
euEccn: NLR
Kontaktposition: Unten
Produktpalette: FCI SFV-R Series
productTraceability: No
Kontaktanschluss: Oberflächenmontage, gerade
Anzahl der Reihen: 1 Reihe
Rastermaß: 0.5mm
SVHC: No SVHC (21-Jan-2025)
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - SFV30R-3STBE1HLF - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 30 Kontakt(e), Buchse, FCI SFV-R Series
tariffCode: 85366930
rohsCompliant: YES
FFC/FPC-Dicke: 0.33mm
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Ausführung: Buchse
usEccn: EAR99
Anzahl der Kontakte: 30Kontakt(e)
euEccn: NLR
Kontaktposition: Unten
Produktpalette: FCI SFV-R Series
productTraceability: No
Kontaktanschluss: Oberflächenmontage, gerade
Anzahl der Reihen: 1 Reihe
Rastermaß: 0.5mm
SVHC: No SVHC (21-Jan-2025)
auf Bestellung 1349 Stücke:
Lieferzeit 14-21 Tag (e)
