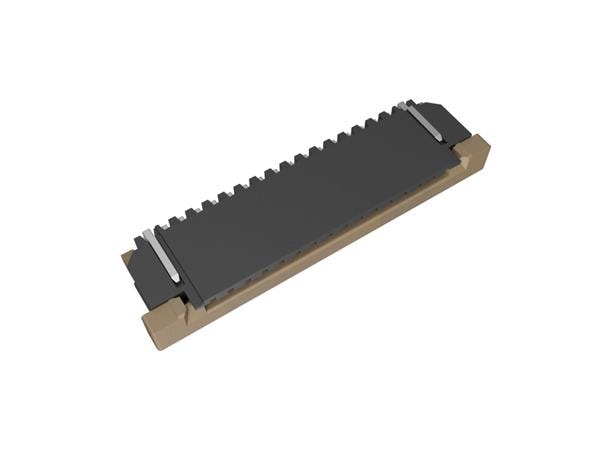

SFW16R-4STE1LF Amphenol ICC (FCI)
Hersteller: Amphenol ICC (FCI)Description: CONN FFC FPC TOP 16POS 1MM R/A
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Tape & Reel (TR)
Contact Finish: Tin
Voltage Rating: 100V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 16
Pitch: 0.039" (1.00mm)
Operating Temperature: -55°C ~ 105°C
Termination: Solder
Height Above Board: 0.106" (2.70mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm, 0.33mm
Housing Material: Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type: Notched, Tapered
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Top
auf Bestellung 2000 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 2000+ | 0.68 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details SFW16R-4STE1LF Amphenol ICC (FCI)
Description: CONN FFC FPC TOP 16POS 1MM R/A, Features: Solder Retention, Zero Insertion Force (ZIF), Packaging: Tape & Reel (TR), Contact Finish: Tin, Voltage Rating: 100V, Mounting Type: Surface Mount, Right Angle, Number of Positions: 16, Pitch: 0.039" (1.00mm), Operating Temperature: -55°C ~ 105°C, Termination: Solder, Height Above Board: 0.106" (2.70mm), Locking Feature: Slide Lock, Material Flammability Rating: UL94 V-0, Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Contact Material: Phosphor Bronze, FFC, FCB Thickness: 0.30mm, 0.33mm, Housing Material: Polyphenylene Sulfide (PPS), Glass Filled, Cable End Type: Notched, Tapered, Flat Flex Type: FFC, FPC, Connector/Contact Type: Contacts, Top.
Weitere Produktangebote SFW16R-4STE1LF nach Preis ab 0.45 EUR bis 1.32 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SFW16R-4STE1LF | Hersteller : Amphenol FCI |
FFC & FPC Connectors 1.00mm Flex Connector, SFW-R series, 16 Position, Top side Contact, Side Entry Surface Mount ZIF Connector, Lead Free, with Cable Lock. |
auf Bestellung 5178 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
|
|
SFW16R-4STE1LF | Hersteller : Amphenol ICC (FCI) |
Description: CONN FFC FPC TOP 16POS 1MM R/A Packaging: Cut Tape (CT) Features: Solder Retention, Zero Insertion Force (ZIF) Contact Finish: Tin Voltage Rating: 100V Mounting Type: Surface Mount, Right Angle Number of Positions: 16 Pitch: 0.039" (1.00mm) Operating Temperature: -55°C ~ 105°C Termination: Solder Height Above Board: 0.106" (2.70mm) Locking Feature: Slide Lock Material Flammability Rating: UL94 V-0 Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled Contact Material: Phosphor Bronze FFC, FCB Thickness: 0.30mm, 0.33mm Housing Material: Polyphenylene Sulfide (PPS), Glass Filled Cable End Type: Notched, Tapered Flat Flex Type: FFC, FPC Connector/Contact Type: Contacts, Top |
auf Bestellung 3876 Stücke: Lieferzeit 10-14 Tag (e) |
|
