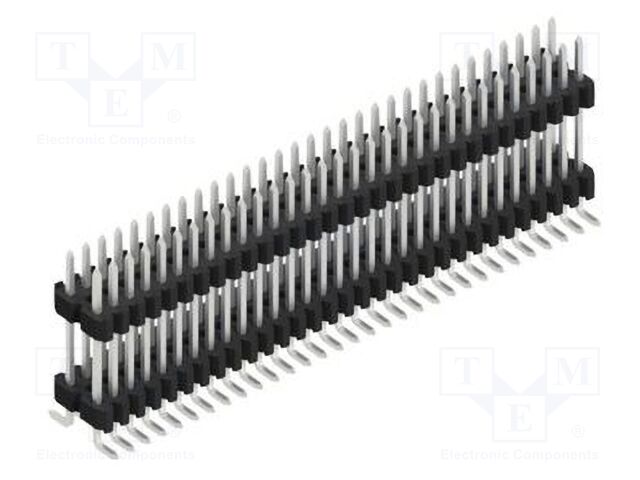

SLV W 11 SMD 102 62 Z Fischer Elektronik
Hersteller: Fischer Elektronik
Description: pitch 1.27 x 2.54 mm; two rows,
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 62
Mounting Type: Surface Mount
Current Rating (Amps): 1.5A
Voltage Rating: 125VAC
Connector Type: Header
Packaging: Bulk
Shrouding: Unshrouded
Insulation Height: 0.067" (1.70mm)
Contact Shape: Square
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 157.5µin (4.00µm)
Contact Finish - Mating: Tin
Pitch - Mating: 0.050" (1.27mm)
Insulation Color: Black
Contact Material: Copper Zinc
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -40°C ~ 163°C
Contact Length - Mating: 0.118" (3.00mm)
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
Produktrezensionen
Produktbewertung abgeben
Technische Details SLV W 11 SMD 102 62 Z Fischer Elektronik
Description: pitch 1.27 x 2.54 mm; two rows,, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 62, Mounting Type: Surface Mount, Current Rating (Amps): 1.5A, Voltage Rating: 125VAC, Connector Type: Header, Packaging: Bulk, Shrouding: Unshrouded, Insulation Height: 0.067" (1.70mm), Contact Shape: Square, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 157.5µin (4.00µm), Contact Finish - Mating: Tin, Pitch - Mating: 0.050" (1.27mm), Insulation Color: Black, Contact Material: Copper Zinc, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -40°C ~ 163°C, Contact Length - Mating: 0.118" (3.00mm), Row Spacing - Mating: 0.100" (2.54mm), Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled.
Weitere Produktangebote SLV W 11 SMD 102 62 Z
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
SLVW11SMD10262Z | FISCHER ELEKTRONIK |
Category: Pin headers Description: Connector: pin strips; pin header; male; PIN: 62; SMT; 1.5A; 125V Type of connector: pin strips Connector: pin header Kind of connector: male Number of pins: 62 Electrical mounting: SMT Current rating: 1.5A Rated voltage: 0.125kV Manufacturer series: SLVW 11 SMD Spatial orientation: angled Contacts pitch: 1.27mm Connector pinout layout: 2x31 Contact plating: tinned Kind of package: bulk Row pitch: 2.54mm Flammability rating: UL94V-0 Contact material: brass Body material: polyamide 46 Overall length: 13.2mm Length of metal part: 3mm Body colour: black Operating temperature: -40...163°C |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| SLVW11SMD10262Z |
Hersteller: FISCHER ELEKTRONIK
Category: Pin headers
Description: Connector: pin strips; pin header; male; PIN: 62; SMT; 1.5A; 125V
Type of connector: pin strips
Connector: pin header
Kind of connector: male
Number of pins: 62
Electrical mounting: SMT
Current rating: 1.5A
Rated voltage: 0.125kV
Manufacturer series: SLVW 11 SMD
Spatial orientation: angled
Contacts pitch: 1.27mm
Connector pinout layout: 2x31
Contact plating: tinned
Kind of package: bulk
Row pitch: 2.54mm
Flammability rating: UL94V-0
Contact material: brass
Body material: polyamide 46
Overall length: 13.2mm
Length of metal part: 3mm
Body colour: black
Operating temperature: -40...163°C
