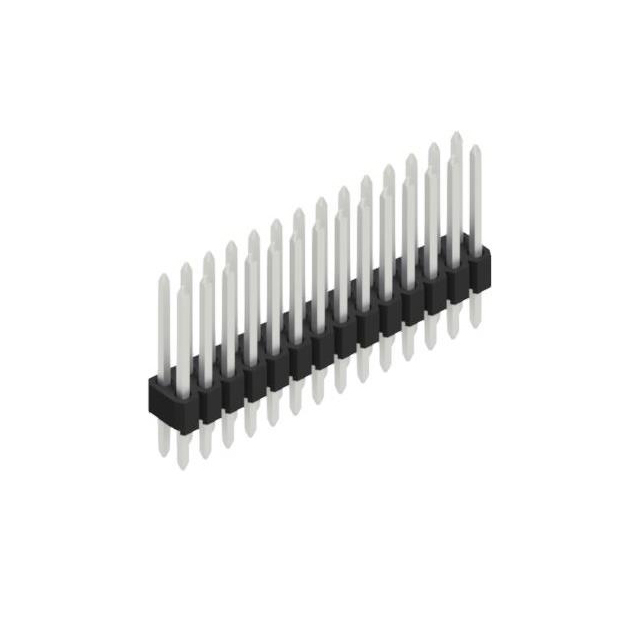

SLV W 4 055 28 Z Fischer Elektronik
Hersteller: Fischer ElektronikDescription: two rows 4-72 contacts
Packaging: Bulk
Connector Type: Header
Voltage Rating: 125VAC
Current Rating (Amps): 1.5A
Mounting Type: Through Hole
Number of Positions: 28
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 163°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Zinc
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 157.5µin (4.00µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.098" (2.50mm)
Insulation Height: 0.067" (1.70mm)
Shrouding: Unshrouded
Overall Contact Length: 0.382" (9.70mm)
Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.217" (5.50mm)
auf Bestellung 1000 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 10+ | 3.22 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details SLV W 4 055 28 Z Fischer Elektronik
Description: two rows 4-72 contacts, Packaging: Bulk, Connector Type: Header, Voltage Rating: 125VAC, Current Rating (Amps): 1.5A, Mounting Type: Through Hole, Number of Positions: 28, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -40°C ~ 163°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Zinc, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 157.5µin (4.00µm), Contact Finish - Post: Tin, Contact Shape: Square, Contact Length - Post: 0.098" (2.50mm), Insulation Height: 0.067" (1.70mm), Shrouding: Unshrouded, Overall Contact Length: 0.382" (9.70mm), Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled, Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.217" (5.50mm).
Weitere Produktangebote SLV W 4 055 28 Z
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
SLVW405528Z | Hersteller : FISCHER ELEKTRONIK |
Category: Pin headers Description: Connector: pin strips; pin header; male; PIN: 28; THT; 1.5A; 125V Current rating: 1.5A Contact material: brass Contact plating: tinned Electrical mounting: THT Flammability rating: UL94V-0 Operating temperature: -40...163°C Contacts pitch: 1.27mm Lead length: 2.5mm Length of metal part: 5.5mm Overall length: 9.7mm Number of pins: 28 Connector pinout layout: 2x14 Rated voltage: 125V Body colour: black Kind of package: bulk Kind of connector: male Connector: pin header Type of connector: pin strips Body material: polyamide 46 Manufacturer series: SLVW 4 Spatial orientation: straight |
Produkt ist nicht verfügbar |
