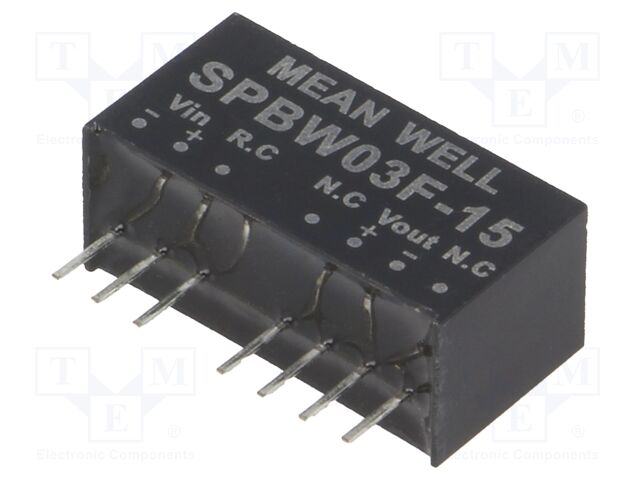

SPBW03F-15 MEAN WELL
Hersteller: MEAN WELL
Category: DC/DC Converters
Description: Converter: DC/DC; 3W; Uin: 9÷36VDC; Uout: 15VDC; Iout: 0÷200mA; SIP8
Mounting: THT
Operating temperature: -40...85°C
Output voltage: 15V DC
Input voltage: 9...36V DC
Efficiency: 84%
Insulation voltage: 1.5kV DC
Protection: anti-overload OPP; short circuit protection SCP; undervoltage UVP
Switching frequency: 100kHz
Type of converter: DC/DC
Manufacturer series: SPBW03
Case: SIP8
Output current: 0...200mA
Body dimensions: 21.8x9.2x11.1mm
Number of outputs: 1
Power: 3W
Produktrezensionen
Produktbewertung abgeben
Technische Details SPBW03F-15 MEAN WELL
Description: DC DC CONVERTER 15V 3W, Features: Remote On/Off, OCP, SCP, UVLO, Packaging: Bulk, Package / Case: 8-SIP Module, 7 Leads, Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm), Mounting Type: Through Hole, Type: Isolated Module, Operating Temperature: -40°C ~ 85°C (With Derating), Applications: ITE (Commercial), Voltage - Input (Max): 36V, Efficiency: 84%, Current - Output (Max): 200mA, Voltage - Input (Min): 9V, Voltage - Output 1: 15V, Control Features: Enable, Active High, Power (Watts): 3 W, Number of Outputs: 1, Voltage - Isolation: 1.5 kV.
Weitere Produktangebote SPBW03F-15 nach Preis ab 13.72 EUR bis 42.01 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||
|---|---|---|---|---|---|---|---|---|---|
 |
SPBW03F-15 | MEAN WELL USA Inc. |
Description: DC DC CONVERTER 15V 3W Features: Remote On/Off, OCP, SCP, UVLO Packaging: Bulk Package / Case: 8-SIP Module, 7 Leads Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 85°C (With Derating) Applications: ITE (Commercial) Voltage - Input (Max): 36V Efficiency: 84% Current - Output (Max): 200mA Voltage - Input (Min): 9V Voltage - Output 1: 15V Control Features: Enable, Active High Power (Watts): 3 W Number of Outputs: 1 Voltage - Isolation: 1.5 kV |
auf Bestellung 1477 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||
 |
SPBW03F-15 | MEAN WELL |
DC/DC Converters - Through Hole 9-36Vin 15Vout 200mA SIP8 Reg Iso |
auf Bestellung 13 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||
 |
SPBW03F-15 | Mean-Well USA, Inc. |
Module DC-DC 24VIN 1-OUT 15V 0.2A 3W 7-Pin SIP Module Tube |
auf Bestellung 9 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||
|
|
SPBW03F-15 | Mean-Well USA, Inc. |
Module DC-DC 24VIN 1-OUT 15V 0.2A 3W 7-Pin SIP Module Tube |
auf Bestellung 12 Stücke: Lieferzeit 14-21 Tag (e) |
|
| SPBW03F-15 |
|
Hersteller: MEAN WELL USA Inc.
Description: DC DC CONVERTER 15V 3W
Features: Remote On/Off, OCP, SCP, UVLO
Packaging: Bulk
Package / Case: 8-SIP Module, 7 Leads
Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C (With Derating)
Applications: ITE (Commercial)
Voltage - Input (Max): 36V
Efficiency: 84%
Current - Output (Max): 200mA
Voltage - Input (Min): 9V
Voltage - Output 1: 15V
Control Features: Enable, Active High
Power (Watts): 3 W
Number of Outputs: 1
Voltage - Isolation: 1.5 kV
Description: DC DC CONVERTER 15V 3W
Features: Remote On/Off, OCP, SCP, UVLO
Packaging: Bulk
Package / Case: 8-SIP Module, 7 Leads
Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C (With Derating)
Applications: ITE (Commercial)
Voltage - Input (Max): 36V
Efficiency: 84%
Current - Output (Max): 200mA
Voltage - Input (Min): 9V
Voltage - Output 1: 15V
Control Features: Enable, Active High
Power (Watts): 3 W
Number of Outputs: 1
Voltage - Isolation: 1.5 kV
auf Bestellung 1477 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 13.84 EUR |
| SPBW03F-15 |
|
Hersteller: MEAN WELL
DC/DC Converters - Through Hole 9-36Vin 15Vout 200mA SIP8 Reg Iso
DC/DC Converters - Through Hole 9-36Vin 15Vout 200mA SIP8 Reg Iso
auf Bestellung 13 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 16.48 EUR |
| 5+ | 13.72 EUR |
| SPBW03F-15 |
|
Hersteller: Mean-Well USA, Inc.
Module DC-DC 24VIN 1-OUT 15V 0.2A 3W 7-Pin SIP Module Tube
Module DC-DC 24VIN 1-OUT 15V 0.2A 3W 7-Pin SIP Module Tube
auf Bestellung 9 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 9+ | 20.04 EUR |
| SPBW03F-15 |
|
Hersteller: Mean-Well USA, Inc.
Module DC-DC 24VIN 1-OUT 15V 0.2A 3W 7-Pin SIP Module Tube
Module DC-DC 24VIN 1-OUT 15V 0.2A 3W 7-Pin SIP Module Tube
auf Bestellung 12 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 5+ | 42.01 EUR |
| 10+ | 32.33 EUR |
