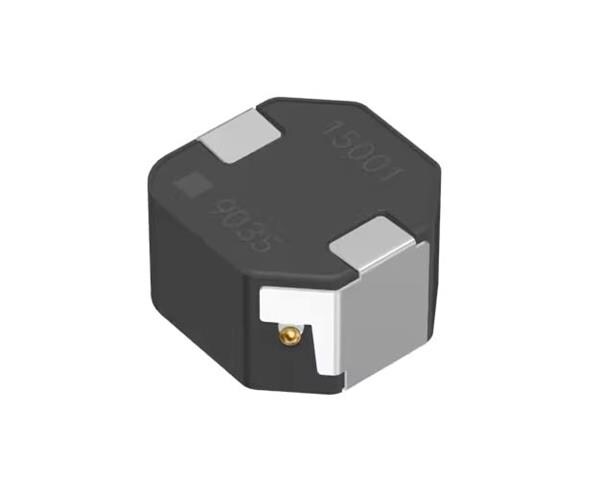

SPM10065VC-680M-D TDK
Hersteller: TDK
Description: FIXED IND 68UH 3.4A 131.1 MOHM
Tolerance: ±20%
Packaging: Tape & Reel (TR)
Package / Case: Nonstandard
Size / Dimension: 0.413" L x 0.394" W (10.50mm x 10.00mm)
Mounting Type: Surface Mount
Shielding: Shielded
Type: Wirewound
Operating Temperature: -55°C ~ 155°C
DC Resistance (DCR): 131.1mOhm Max
Ratings: AEC-Q200
Current - Saturation (Isat): 5.5A
Material - Core: Metal
Inductance Frequency - Test: 100 kHz
Height - Seated (Max): 0.256" (6.50mm)
Inductance: 68 µH
Current Rating (Amps): 3.4 A
| Anzahl | Privatkunde |
|---|---|
| 500+ | 1.36 EUR |
| 1000+ | 1.27 EUR |
| 1500+ | 1.24 EUR |
| 2500+ | 1.18 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
10-14 Tag (e)
Mindestmenge:
500 Stücke
Produktrezensionen
Produktbewertung abgeben
Technische Details SPM10065VC-680M-D TDK
Description: FIXED IND 68UH 3.4A 131.1 MOHM, Tolerance: ±20%, Packaging: Tape & Reel (TR), Package / Case: Nonstandard, Size / Dimension: 0.413" L x 0.394" W (10.50mm x 10.00mm), Mounting Type: Surface Mount, Shielding: Shielded, Type: Wirewound, Operating Temperature: -55°C ~ 155°C, DC Resistance (DCR): 131.1mOhm Max, Ratings: AEC-Q200, Current - Saturation (Isat): 5.5A, Material - Core: Metal, Inductance Frequency - Test: 100 kHz, Height - Seated (Max): 0.256" (6.50mm), Inductance: 68 µH, Current Rating (Amps): 3.4 A.
Weitere Produktangebote SPM10065VC-680M-D nach Preis ab 1.13 EUR bis 2.75 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SPM10065VC-680M-D | TDK |
Description: FIXED IND 68UH 3.4A 131.1 MOHM Tolerance: ±20% Packaging: Cut Tape (CT) Package / Case: Nonstandard Size / Dimension: 0.413" L x 0.394" W (10.50mm x 10.00mm) Mounting Type: Surface Mount Shielding: Shielded Type: Wirewound Operating Temperature: -55°C ~ 155°C DC Resistance (DCR): 131.1mOhm Max Ratings: AEC-Q200 Current - Saturation (Isat): 5.5A Material - Core: Metal Inductance Frequency - Test: 100 kHz Height - Seated (Max): 0.256" (6.50mm) Inductance: 68 µH Current Rating (Amps): 3.4 A |
auf Bestellung 3030 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
SPM10065VC-680M-D | TDK |
Power Inductors - SMD IND,68uH,3.4A,114mohm,-55-155C AEC-Q200 |
auf Bestellung 745 Stücke: Lieferzeit 10-14 Tag (e) |
|
| SPM10065VC-680M-D |
|
Hersteller: TDK
Description: FIXED IND 68UH 3.4A 131.1 MOHM
Tolerance: ±20%
Packaging: Cut Tape (CT)
Package / Case: Nonstandard
Size / Dimension: 0.413" L x 0.394" W (10.50mm x 10.00mm)
Mounting Type: Surface Mount
Shielding: Shielded
Type: Wirewound
Operating Temperature: -55°C ~ 155°C
DC Resistance (DCR): 131.1mOhm Max
Ratings: AEC-Q200
Current - Saturation (Isat): 5.5A
Material - Core: Metal
Inductance Frequency - Test: 100 kHz
Height - Seated (Max): 0.256" (6.50mm)
Inductance: 68 µH
Current Rating (Amps): 3.4 A
Description: FIXED IND 68UH 3.4A 131.1 MOHM
Tolerance: ±20%
Packaging: Cut Tape (CT)
Package / Case: Nonstandard
Size / Dimension: 0.413" L x 0.394" W (10.50mm x 10.00mm)
Mounting Type: Surface Mount
Shielding: Shielded
Type: Wirewound
Operating Temperature: -55°C ~ 155°C
DC Resistance (DCR): 131.1mOhm Max
Ratings: AEC-Q200
Current - Saturation (Isat): 5.5A
Material - Core: Metal
Inductance Frequency - Test: 100 kHz
Height - Seated (Max): 0.256" (6.50mm)
Inductance: 68 µH
Current Rating (Amps): 3.4 A
auf Bestellung 3030 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 9+ | 2.37 EUR |
| 11+ | 1.95 EUR |
| 25+ | 1.8 EUR |
| 50+ | 1.7 EUR |
| 100+ | 1.59 EUR |
| 250+ | 1.48 EUR |
| SPM10065VC-680M-D |
|
Hersteller: TDK
Power Inductors - SMD IND,68uH,3.4A,114mohm,-55-155C AEC-Q200
Power Inductors - SMD IND,68uH,3.4A,114mohm,-55-155C AEC-Q200
auf Bestellung 745 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 2.75 EUR |
| 10+ | 2.14 EUR |
| 25+ | 1.78 EUR |
| 100+ | 1.65 EUR |
| 250+ | 1.5 EUR |
| 500+ | 1.13 EUR |
