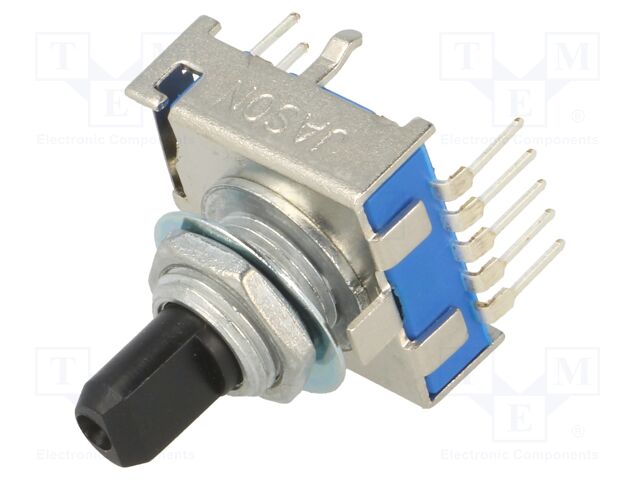

SR17A1415F49N

SR17A1415F49N NINIGI

pVersion=0046&contRep=ZT&docId=005056AB752F1ED682F147A78AD111BF&compId=SR17A1415F49N_DRAWING.pdf?ci_sign=2a74624ab9b35f93be5a0dd7fd90a1b4865d228c pVersion=0046&contRep=ZT&docId=005056AB752F1ED682F14039CEAD51BF&compId=SR17A1415F49N_DTE.pdf?ci_sign=05e725092d6e1bf37f02033fb676da98c7cfc6a3 Hersteller: NINIGI
Category: Rotary Switches
Description: Switch: rotary; Pos: 4; 0.3A/16VDC; Poles number: 1; 30°; -20÷70°C
Type of switch: rotary
Number of positions: 4
Stable positions number: 4
DC contacts rating @R: 0.3A / 16V DC
Poles number: 1
Indexed positions: 30°
Operating temperature: -20...70°C
Leads: for PCB; straight
Switching method: BBM (non-shorting)
Max. contact resistance:: 50mΩ
Min. insulation resistance: 0.1GΩ
Mechanical durability: 10000 cycles
Shaft surface: smooth
Shaft diameter: 6mm
Shaft length: 7mm
Fastening thread: M9x0,75
Switching torque: 2.9Ncm
Body material: steel
Contact material: brass
auf Bestellung 222 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
37+1.96 EUR
39+1.87 EUR
46+1.56 EUR
49+1.47 EUR
Mindestbestellmenge: 37
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details SR17A1415F49N NINIGI

Category: Rotary Switches, Description: Switch: rotary; Pos: 4; 0.3A/16VDC; Poles number: 1; 30°; -20÷70°C, Type of switch: rotary, Number of positions: 4, Stable positions number: 4, DC contacts rating @R: 0.3A / 16V DC, Poles number: 1, Indexed positions: 30°, Operating temperature: -20...70°C, Leads: for PCB; straight, Switching method: BBM (non-shorting), Max. contact resistance:: 50mΩ, Min. insulation resistance: 0.1GΩ, Mechanical durability: 10000 cycles, Shaft surface: smooth, Shaft diameter: 6mm, Shaft length: 7mm, Fastening thread: M9x0,75, Switching torque: 2.9Ncm, Body material: steel, Contact material: brass, Anzahl je Verpackung: 1 Stücke.
