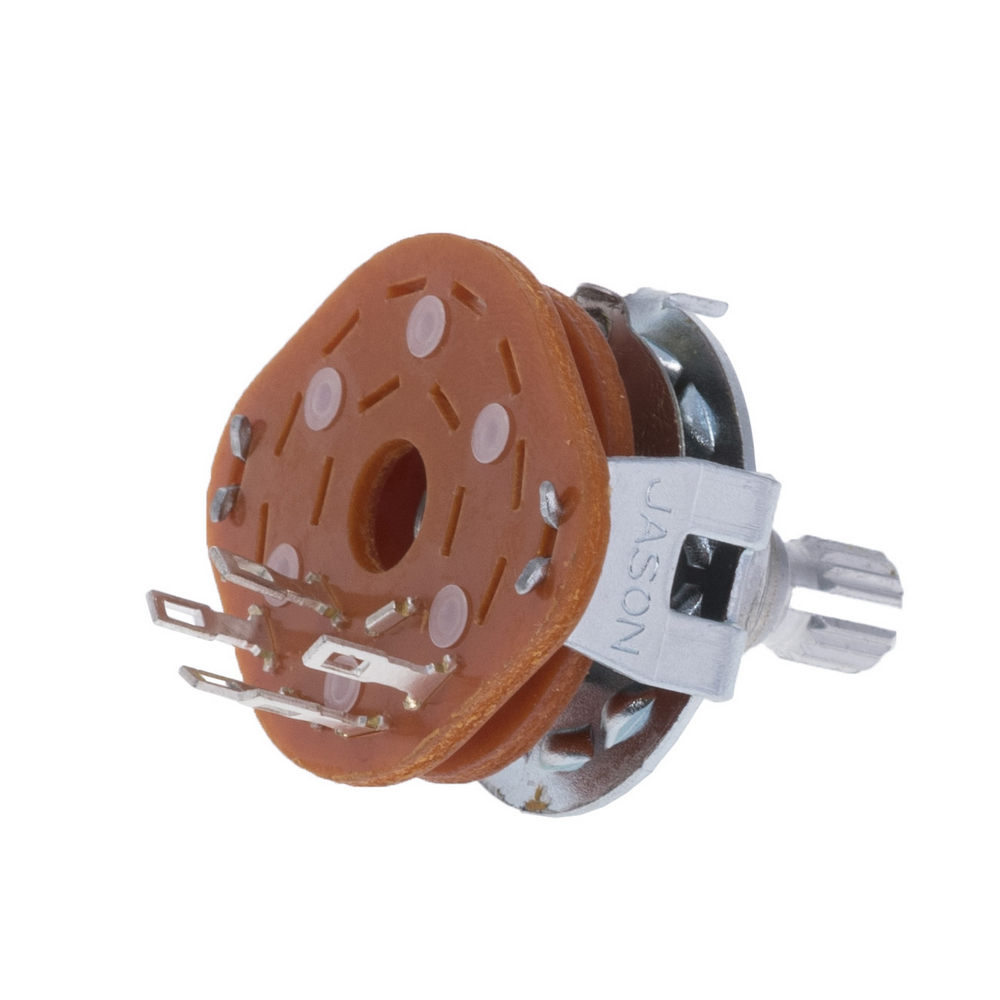

SR2511415K9N NINIGI
Hersteller: NINIGI
Category: Rotary Switches
Description: Switch: rotary; Pos: 4; 0.3A/125VAC; Poles number: 1; 30°; -20÷70°C
Leads: for soldering
Operating temperature: -20...70°C
Poles number: 1
Shaft surface: knurled
Contact material: brass
Type of switch: rotary
AC contacts rating @R: 0.3A / 125V AC
Switching method: BBM (non-shorting)
Stable positions number: 4
Switching torque: 9.8Ncm
Indexed positions: 30°
Number of positions: 4
Mechanical durability: 10000 cycles
Max. contact resistance:: 30mΩ
Min. insulation resistance: 0.1GΩ
Shaft diameter: 6mm
Shaft length: 15mm
Fastening thread: M9x0,75
Category: Rotary Switches
Description: Switch: rotary; Pos: 4; 0.3A/125VAC; Poles number: 1; 30°; -20÷70°C
Leads: for soldering
Operating temperature: -20...70°C
Poles number: 1
Shaft surface: knurled
Contact material: brass
Type of switch: rotary
AC contacts rating @R: 0.3A / 125V AC
Switching method: BBM (non-shorting)
Stable positions number: 4
Switching torque: 9.8Ncm
Indexed positions: 30°
Number of positions: 4
Mechanical durability: 10000 cycles
Max. contact resistance:: 30mΩ
Min. insulation resistance: 0.1GΩ
Shaft diameter: 6mm
Shaft length: 15mm
Fastening thread: M9x0,75
auf Bestellung 449 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
41+ | 1.76 EUR |
44+ | 1.66 EUR |
54+ | 1.33 EUR |
57+ | 1.26 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details SR2511415K9N NINIGI
Category: Rotary Switches, Description: Switch: rotary; Pos: 4; 0.3A/125VAC; Poles number: 1; 30°; -20÷70°C, Leads: for soldering, Operating temperature: -20...70°C, Poles number: 1, Shaft surface: knurled, Contact material: brass, Type of switch: rotary, AC contacts rating @R: 0.3A / 125V AC, Switching method: BBM (non-shorting), Stable positions number: 4, Switching torque: 9.8Ncm, Indexed positions: 30°, Number of positions: 4, Mechanical durability: 10000 cycles, Max. contact resistance:: 30mΩ, Min. insulation resistance: 0.1GΩ, Shaft diameter: 6mm, Shaft length: 15mm, Fastening thread: M9x0,75, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote SR2511415K9N nach Preis ab 1.26 EUR bis 1.76 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SR2511415K9N | Hersteller : NINIGI |
Category: Rotary Switches Description: Switch: rotary; Pos: 4; 0.3A/125VAC; Poles number: 1; 30°; -20÷70°C Leads: for soldering Operating temperature: -20...70°C Poles number: 1 Shaft surface: knurled Contact material: brass Type of switch: rotary AC contacts rating @R: 0.3A / 125V AC Switching method: BBM (non-shorting) Stable positions number: 4 Switching torque: 9.8Ncm Indexed positions: 30° Number of positions: 4 Mechanical durability: 10000 cycles Max. contact resistance:: 30mΩ Min. insulation resistance: 0.1GΩ Shaft diameter: 6mm Shaft length: 15mm Fastening thread: M9x0,75 Anzahl je Verpackung: 1 Stücke |
auf Bestellung 449 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||
+1 |
SR2511415K9N Produktcode: 124328 |
Hersteller : Ninigi |
Passive Bauelemente > Schalter, Schubschalter, Kippschalter (alle außer Knopf/Tasten) Gruppe: Перемикачі поворотні Ausg. oder SMD : THT Länge des Stabs: 15 mm Beschreibung: Поворотний перемикач, кут повороту на позицію: 30 °, матеріал контакту: латунь, довжина осі: 15мм, діаметр осі: 6мм 4 300mA / 125VAC |
Produkt ist nicht verfügbar
|
