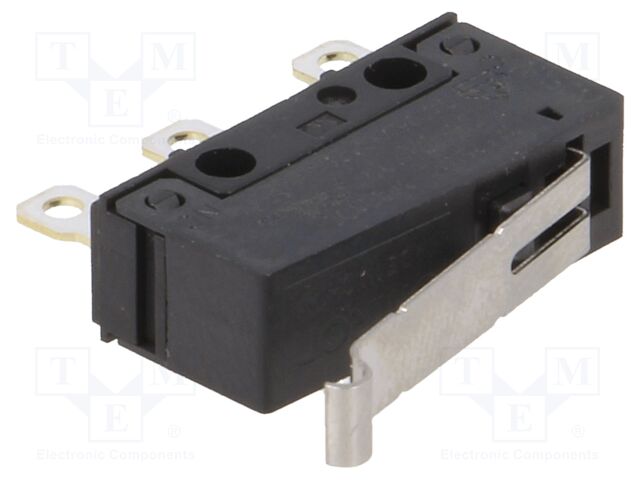

SS-3GL13P

SS-3GL13P OMRON Electronic Components


pVersion=0046&contRep=ZT&docId=E23ABF7DCE4DF8F1A303005056AB0C4F&compId=SS.PDF?ci_sign=f144c55a6f4bf278e18d09e0ee0be5dabbfdddf3 Hersteller: OMRON Electronic Components
Category: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 3A/250VAC; SPDT; Rcont max: 30mΩ; Pos: 2
Contacts configuration: SPDT
IP rating: IP40
Manufacturer series: SS
Operating temperature: -25...85°C
Type of switch: microswitch SNAP ACTION
AC contacts rating @R: 3A / 250V AC
Switching method: ON-(ON)
Stable positions number: 1
Operating Force: 1.47N
Lever length: 15.8mm
Switches features: with lever with roller simulation
Number of positions: 2
Mechanical durability: 30000000 cycles
Max. contact resistance:: 30mΩ
Min. insulation resistance: 0.1GΩ
Terminal pitch: 7.3mm
Body dimensions: 19.8x6.4x10.2mm
Electrical life: 200000 cycles
Anzahl je Verpackung: 1 Stücke
auf Bestellung 500 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
45+1.62 EUR
68+1.06 EUR
70+1.03 EUR
74+0.97 EUR
Mindestbestellmenge: 45
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details SS-3GL13P OMRON Electronic Components

Category: Microswitches SNAP ACTION, Description: Microswitch SNAP ACTION; 3A/250VAC; SPDT; Rcont max: 30mΩ; Pos: 2, Contacts configuration: SPDT, IP rating: IP40, Manufacturer series: SS, Operating temperature: -25...85°C, Type of switch: microswitch SNAP ACTION, AC contacts rating @R: 3A / 250V AC, Switching method: ON-(ON), Stable positions number: 1, Operating Force: 1.47N, Lever length: 15.8mm, Switches features: with lever with roller simulation, Number of positions: 2, Mechanical durability: 30000000 cycles, Max. contact resistance:: 30mΩ, Min. insulation resistance: 0.1GΩ, Terminal pitch: 7.3mm, Body dimensions: 19.8x6.4x10.2mm, Electrical life: 200000 cycles, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote SS-3GL13P nach Preis ab 0.97 EUR bis 3.15 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
SS-3GL13P SS-3GL13P Hersteller : OMRON Electronic Components pVersion=0046&contRep=ZT&docId=E23ABF7DCE4DF8F1A303005056AB0C4F&compId=SS.PDF?ci_sign=f144c55a6f4bf278e18d09e0ee0be5dabbfdddf3 Category: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 3A/250VAC; SPDT; Rcont max: 30mΩ; Pos: 2
Contacts configuration: SPDT
IP rating: IP40
Manufacturer series: SS
Operating temperature: -25...85°C
Type of switch: microswitch SNAP ACTION
AC contacts rating @R: 3A / 250V AC
Switching method: ON-(ON)
Stable positions number: 1
Operating Force: 1.47N
Lever length: 15.8mm
Switches features: with lever with roller simulation
Number of positions: 2
Mechanical durability: 30000000 cycles
Max. contact resistance:: 30mΩ
Min. insulation resistance: 0.1GΩ
Terminal pitch: 7.3mm
Body dimensions: 19.8x6.4x10.2mm
Electrical life: 200000 cycles
auf Bestellung 500 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
45+1.62 EUR
68+1.06 EUR
70+1.03 EUR
74+0.97 EUR
Mindestbestellmenge: 45
Im Einkaufswagen  Stück im Wert von  UAH
SS-3GL13P SS-3GL13P Hersteller : Omron Electronics Inc-EMC Div en-ss_p.pdf Description: SWITCH SNAP ACTION SPDT 3A 125V
Packaging: Tray
Current Rating (Amps): 3A (AC/DC)
Mounting Type: Chassis Mount
Circuit: SPDT
Switch Function: On-Mom
Operating Temperature: -25°C ~ 85°C
Termination Style: Solder Lug
Actuator Type: Lever, Simulated Roller
Operating Force: 51gf
Ingress Protection: IP40
Release Force: 5.099gf
Differential Travel: 0.031" (0.8mm)
Overtravel: 0.039" (1.0mm)
Operating Position: 0.420" (10.7mm)
Voltage Rating - AC: 125 V
Voltage Rating - DC: 30 V
auf Bestellung 2808 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
6+3.15 EUR
10+2.97 EUR
25+2.85 EUR
40+2.73 EUR
80+2.61 EUR
230+2.08 EUR
500+1.90 EUR
1000+1.84 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH
SS-3GL13P SS-3GL13P Hersteller : OMRON ELECTRONIC COMPONENTS 2237654.pdf Description: OMRON ELECTRONIC COMPONENTS - SS-3GL13P - Mikroschalter, Schnappschalter, Rollenhebel, SPDT, Lötanschluss, 3 A, 30 VDC
tariffCode: 85365007
rohsCompliant: YES
Schalteranschlüsse: Lötanschluss
Mikroschalter-Betätiger: Rollenhebel
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktstrom, max.: 3A
usEccn: EAR99
AC-Kontaktspannung, nom.: 125VAC
euEccn: NLR
DC-Kontaktspannung, nom.: 30VDC
Produktpalette: SS-P
productTraceability: No
Betätigungskraft, max.: 0.5N
Kontaktkonfiguration: SPDT
Mikroschaltertyp: Schnappschalter
SVHC: No SVHC (17-Dec-2014)
auf Bestellung 14 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
SS-3GL13P SS-3GL13P Hersteller : Omron Electronics en-ss_p-230833.pdf Basic / Snap Action Switches 3A Sim. Roller Lever Solder terminals
auf Bestellung 136 Stücke:
Lieferzeit 10-14 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
