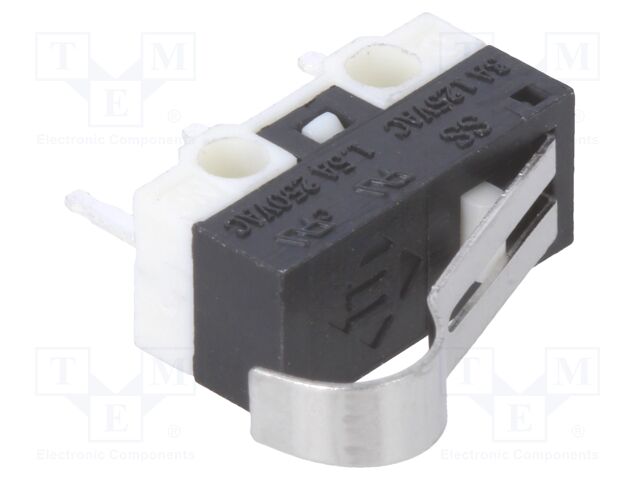

SS0750303F050P1A E-Switch
Hersteller: E-Switch
Description: SWITCH SNAP ACTION SPDT 3A 125V
Packaging: Bulk
Current Rating (Amps): 3A (AC)
Mounting Type: Through Hole
Circuit: SPDT
Switch Function: On-Mom
Operating Temperature: -25°C ~ 75°C
Termination Style: PC Pin
Actuator Type: Lever, Simulated Roller
Operating Force: 50gf
Release Force: 15gf
Pretravel: 0.053" (1.35mm)
Part Status: Active
Voltage Rating - AC: 125 V
Operating Position: 0.380" (9.7mm)
Mechanical Life: 1,000,000 Cycles
Electrical Life: 100,000 Cycles
| Anzahl | Privatkunde |
|---|---|
| 10+ | 2.23 EUR |
| 12+ | 1.84 EUR |
| 25+ | 1.71 EUR |
| 50+ | 1.62 EUR |
| 120+ | 1.5 EUR |
| 360+ | 1.37 EUR |
| 600+ | 1.32 EUR |
| 1080+ | 1.25 EUR |
| 5040+ | 1.13 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details SS0750303F050P1A E-Switch
Category: Microswitches SNAP ACTION, Description: Microswitch SNAP ACTION; 1.5A/250VAC; SPDT; Rcont max: 100mΩ, Manufacturer series: SS, Mounting: PCB, Type of switch: microswitch SNAP ACTION, Illumination: none, Switching method: OFF-(ON), Contacts configuration: SPDT, Switches features: with lever with roller simulation, Operating temperature: -25...75°C, Key stroke: 1.35mm, Terminal pitch: 5.08mm, Body dimensions: 12.8x5.75x6.5mm, Max. contact resistance:: 100mΩ, Operating Force: 0.5N, Stable positions number: 1, AC contacts rating @R: 1.5A / 250V AC, Number of positions: 2, Electrical life: 10000 cycles, Mechanical durability: 1000000 cycles, Min. insulation resistance: 0.1GΩ, Button marking: blank, Leads: for soldering; straight.
Weitere Produktangebote SS0750303F050P1A nach Preis ab 1.24 EUR bis 9.46 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SS0750303F050P1A | E-Switch |
Basic / Snap Action Switches SPDT 3.6 MAX PCB PNS |
auf Bestellung 5 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
SS0750303F050P1A | E-SWITCH |
Category: Microswitches SNAP ACTION Description: Microswitch SNAP ACTION; 1.5A/250VAC; SPDT; Rcont max: 100mΩ Manufacturer series: SS Mounting: PCB Type of switch: microswitch SNAP ACTION Illumination: none Switching method: OFF-(ON) Contacts configuration: SPDT Switches features: with lever with roller simulation Operating temperature: -25...75°C Key stroke: 1.35mm Terminal pitch: 5.08mm Body dimensions: 12.8x5.75x6.5mm Max. contact resistance:: 100mΩ Operating Force: 0.5N Stable positions number: 1 AC contacts rating @R: 1.5A / 250V AC Number of positions: 2 Electrical life: 10000 cycles Mechanical durability: 1000000 cycles Min. insulation resistance: 0.1GΩ Button marking: blank Leads: for soldering; straight |
auf Bestellung 9 Stücke: Lieferzeit 14-21 Tag (e) |
|
| SS0750303F050P1A |
|
Hersteller: E-Switch
Basic / Snap Action Switches SPDT 3.6 MAX PCB PNS
Basic / Snap Action Switches SPDT 3.6 MAX PCB PNS
auf Bestellung 5 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 2.56 EUR |
| 10+ | 1.78 EUR |
| 25+ | 1.65 EUR |
| 50+ | 1.56 EUR |
| 120+ | 1.45 EUR |
| 240+ | 1.36 EUR |
| 5040+ | 1.24 EUR |
| SS0750303F050P1A |
|
Hersteller: E-SWITCH
Category: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 1.5A/250VAC; SPDT; Rcont max: 100mΩ
Manufacturer series: SS
Mounting: PCB
Type of switch: microswitch SNAP ACTION
Illumination: none
Switching method: OFF-(ON)
Contacts configuration: SPDT
Switches features: with lever with roller simulation
Operating temperature: -25...75°C
Key stroke: 1.35mm
Terminal pitch: 5.08mm
Body dimensions: 12.8x5.75x6.5mm
Max. contact resistance:: 100mΩ
Operating Force: 0.5N
Stable positions number: 1
AC contacts rating @R: 1.5A / 250V AC
Number of positions: 2
Electrical life: 10000 cycles
Mechanical durability: 1000000 cycles
Min. insulation resistance: 0.1GΩ
Button marking: blank
Leads: for soldering; straight
Category: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 1.5A/250VAC; SPDT; Rcont max: 100mΩ
Manufacturer series: SS
Mounting: PCB
Type of switch: microswitch SNAP ACTION
Illumination: none
Switching method: OFF-(ON)
Contacts configuration: SPDT
Switches features: with lever with roller simulation
Operating temperature: -25...75°C
Key stroke: 1.35mm
Terminal pitch: 5.08mm
Body dimensions: 12.8x5.75x6.5mm
Max. contact resistance:: 100mΩ
Operating Force: 0.5N
Stable positions number: 1
AC contacts rating @R: 1.5A / 250V AC
Number of positions: 2
Electrical life: 10000 cycles
Mechanical durability: 1000000 cycles
Min. insulation resistance: 0.1GΩ
Button marking: blank
Leads: for soldering; straight
auf Bestellung 9 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 9+ | 9.46 EUR |
