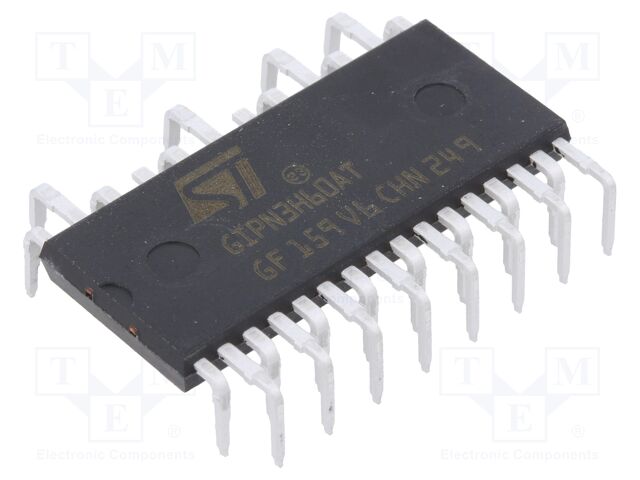

STGIPN3H60AT

Hersteller: STMicroelectronics
Category: Motor and PWM drivers
Description: IC: driver; IGBT three-phase bridge,NTC thermistor; SLLIMM nano
Type of integrated circuit: driver
Kind of integrated circuit: 3-phase motor controller; IPM
Case: NDIP-26L
Output current: 3A
Number of channels: 6
Mounting: THT
Power dissipation: 8W
Operating temperature: -40...125°C
Technology: SLLIMM nano
Frequency: 25kHz
Operating voltage: 12...17/0...500V DC
Topology: IGBT three-phase bridge; NTC thermistor
Collector-emitter voltage: 600V

Hersteller: STMicroelectronics
Description: IGBT IPM 600V 3A 26-PWRDIP MOD
Packaging: Tube
Package / Case: 26-PowerDIP Module (0.846", 21.48mm)
Mounting Type: Through Hole
Type: IGBT
Configuration: 3 Phase Inverter
Voltage - Isolation: 1000Vrms
Part Status: Active
Current: 3 A
Voltage: 600 V

Hersteller: STMicroelectronics
IGBT Modules SLLIMM nano IPM, 3 A, 600 V, 3-phase inverter bridge IGBT

Hersteller: STMICROELECTRONICS
Description: STMICROELECTRONICS - STGIPN3H60AT - Intelligentes Leistungsmodul (IPM), 3-phasig, IGBT, 600 V, 3 A, 1 kV, NDIP, SLLIMM
tariffCode: 85412900
euEccn: NLR
rohsCompliant: YES
hazardous: false
rohsPhthalatesCompliant: YES
isCanonical: Y
Bauform - IPM: NDIP
Nennspannung (Vces / Vdss): 600V
Isolationsspannung: 1kV
SVHC: No SVHC (25-Jun-2025)
Nennstrom (Ic/Id): 3A
Produktpalette: SLLIMM Nano Series
IPM-Leistungsbaustein: IGBT
productTraceability: No
IPM-Baureihe: SLLIMM
usEccn: EAR99
