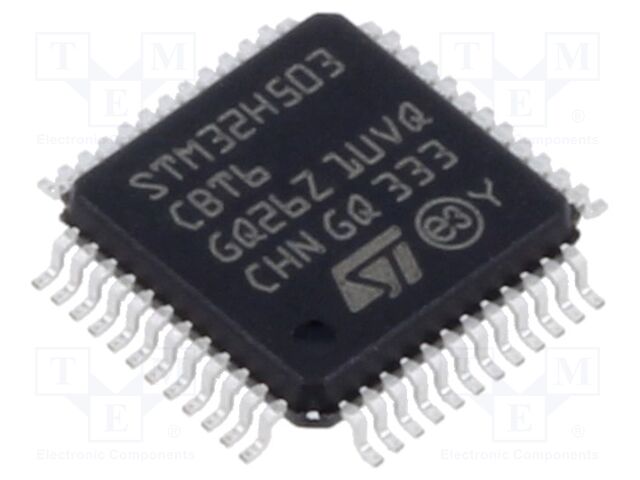

STM32H503CBT6

Hersteller: STM
128 KB Flash 32KB RAM 250MHz Microcontroller IC LQFP-48 Мікропроцесори, мікроконтролери

Hersteller: STMicroelectronics
Description: IC MCU 32BIT 128KB FLASH 48LQFP
Packaging: Tape & Reel (TR)
Package / Case: 48-LQFP
Mounting Type: Surface Mount
Speed: 250MHz
Program Memory Size: 128KB (128K x 8)
RAM Size: 32K x 8
Operating Temperature: -40°C ~ 85°C (TA)
Oscillator Type: External, Internal
Program Memory Type: FLASH
Core Processor: ARM® Cortex®-M33
Data Converters: A/D 10x12b SAR; D/A 2x12b
Core Size: 32-Bit
Voltage - Supply (Vcc/Vdd): 1.71V ~ 3.6V
Connectivity: CANbus, FIFO, I2C, IrDA, LINbus, SCI, SDIO, SMBus, SPI, UART/USART, USB
Peripherals: Brown-out Detect/Reset, DMA, I2S, PDR, POR, PWM, SHA, TRNG, Voltage Detect, WDT
Supplier Device Package: 48-LQFP (7x7)
Number of I/O: 35

Hersteller: STMicroelectronics
ARM Microcontrollers - MCU Arm Cortex-M33 32-bit 250MHz, 128 Kbytes of Flash, 32 Kbytes of RAM, I3C

Hersteller: STMicroelectronics
Category: ST microcontrollers
Description: IC: STM32 ARM microcontroller; 250MHz; LQFP48; 1.71÷3.6VDC; Cmp: 1
Type of integrated circuit: STM32 ARM microcontroller
Clock frequency: 250MHz
Mounting: SMD
Number of inputs/outputs: 35
Case: LQFP48
Supply voltage: 1.71...3.6V DC
Interface: CAN FD; GPIO; I2C; I2S; LPUART; SPI; USART; USB
Kind of architecture: Cortex M33
Integrated circuit features: Brown Out Reset (BOR); operational amplifier; PdR; PoR; PVD; watchdog
Memory: 32kB SRAM; 128kB FLASH
Operating temperature: -40...85°C
Number of 12bit A/D converters: 1
Number of comparators: 1
Number of 12bit D/A converters: 1
Family: STM32H5
Kind of core: 32-bit

Hersteller: STMICROELECTRONICS
Description: STMICROELECTRONICS - STM32H503CBT6 - ARM-MCU, STM32 Family STM32H5 Series Microcontrollers, ARM Cortex-M33F, 32 Bit, 250 MHz, 128 KB
tariffCode: 85423190
euEccn: NLR
rohsCompliant: YES
ADC-Auflösung: 12 Bit
IC-Montage: Oberflächenmontage
Bausteinkern: ARM Cortex-M33F
hazardous: false
rohsPhthalatesCompliant: YES
Qualifikation: -
isCanonical: Y
IC-Gehäuse / Bauform: LQFP
Betriebstemperatur, min.: -40°C
ADC-Kanäle: 10Kanäle
Programmspeichergröße: 128KB
Versorgungsspannung, min.: 1.71V
Betriebsfrequenz, max.: 250MHz
MCU-Familie: STM32
SVHC: No SVHC (04-Feb-2026)
RAM-Speichergröße: 32KB
MCU-Baureihe: STM32H5
Anzahl der Ein-/Ausgänge: 35I/O(s)
Anzahl der Pins: 48Pin(s)
Datenbusbreite: 32 Bit
Produktpalette: STM32 Family STM32H5 Series Microcontrollers
productTraceability: No
usEccn: 3A991.a.2
Versorgungsspannung, max.: 3.6V
Schnittstellen: FDCAN, I2C, I3C, I2S, LPUART, SPI, USART, USB
Betriebstemperatur, max.: 85°C

Hersteller: STMicroelectronics
Secure MCU 32bit STM32 ARM Cortex M33 RISC 128KB Flash 1.8V/2.5V/3.3V 48-Pin LQFP Tray

Hersteller: STMicroelectronics
Secure MCU 32bit STM32 ARM Cortex M33 RISC 128KB Flash 1.8V/2.5V/3.3V 48-Pin LQFP Tray
