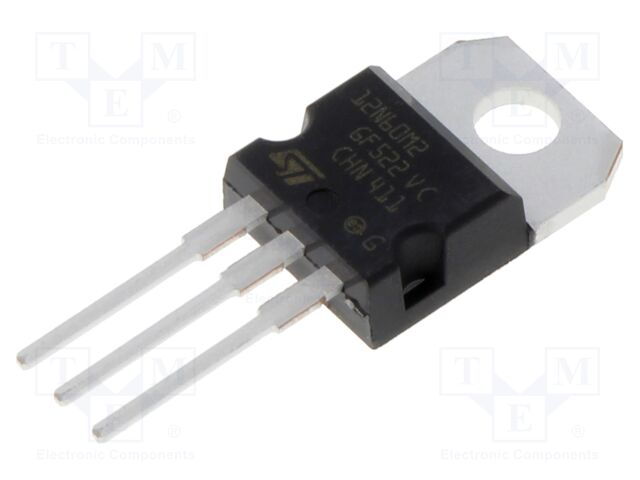

STP12N60M2 STMicroelectronics

Description: MOSFET N-CH 600V 9A TO220, Packaging: Tube, Package / Case: TO-220-3, Mounting Type: Through Hole, Operating Temperature: -55°C ~ 150°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 9A (Tc), Rds On (Max) @ Id, Vgs: 450mOhm @ 4.5A, 10V, Power Dissipation (Max): 85W (Tc), Vgs(th) (Max) @ Id: 4V @ 250µA, Supplier Device Package: TO-220, Part Status: Active, Drive Voltage (Max Rds On, Min Rds On): 10V, Vgs (Max): ±25V, Drain to Source Voltage (Vdss): 600 V, Gate Charge (Qg) (Max) @ Vgs: 16 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 538 pF @ 100 V.
