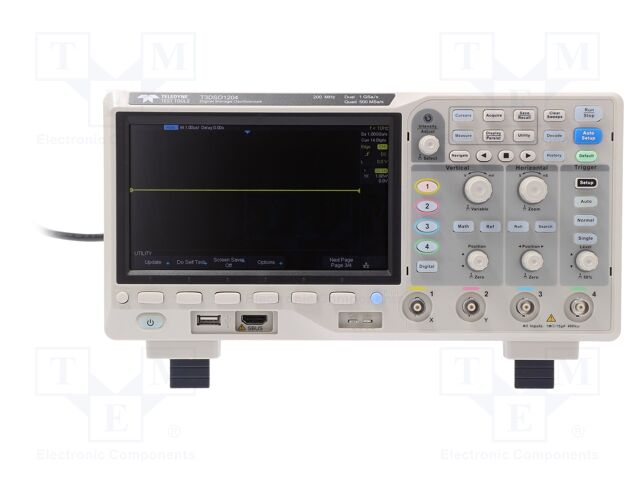

T3DSO1204 TELEDYNE LECROY
Hersteller: TELEDYNE LECROYCategory: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 4; 200MHz; 1Gsps; 14Mpts/ch; 1n÷100s/div
Dimensions: 312x132.6x151mm
Interface: LAN; USB
Manufacturer series: T3DSO1000
Time base: 1n...100s/div
Rise time: 1.8ns
Input sensitivity: 500µV/div...10V/div
Number of channels: 4
Vertical resolution: 8bit
Supply voltage 400Hz: 100...120V AC
Supply voltage: 100...240V AC
Max. input voltage: 400V
Display resolution: 800x480
Input impedance: 1MΩ/15pF
Memory record length: 14Mpts/ch
Sampling: 1Gsps
Band: 200MHz
Measuring instrument features: automatic measurements function; defined part of displayed signal zoom; mathematical functions: addition, subtraction, division, multiplication and FFT
Trigger modes: automatic; normal; single
Kind of display used: colour; LCD TFT 7"
Type of oscilloscope: digital
Trigger: dropout; falling-edge; impulse width; pattern width; rising-edge; runt; video signal; window
auf Bestellung 3 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 1766.38 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details T3DSO1204 TELEDYNE LECROY
Category: Digital Oscilloscopes, Description: Oscilloscope: digital; Ch: 4; 200MHz; 1Gsps; 14Mpts/ch; 1n÷100s/div, Dimensions: 312x132.6x151mm, Interface: LAN; USB, Manufacturer series: T3DSO1000, Time base: 1n...100s/div, Rise time: 1.8ns, Input sensitivity: 500µV/div...10V/div, Number of channels: 4, Vertical resolution: 8bit, Supply voltage 400Hz: 100...120V AC, Supply voltage: 100...240V AC, Max. input voltage: 400V, Display resolution: 800x480, Input impedance: 1MΩ/15pF, Memory record length: 14Mpts/ch, Sampling: 1Gsps, Band: 200MHz, Measuring instrument features: automatic measurements function; defined part of displayed signal zoom; mathematical functions: addition, subtraction, division, multiplication and FFT, Trigger modes: automatic; normal; single, Kind of display used: colour; LCD TFT 7", Type of oscilloscope: digital, Trigger: dropout; falling-edge; impulse width; pattern width; rising-edge; runt; video signal; window, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote T3DSO1204 nach Preis ab 1690.42 EUR bis 2801.99 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||
|---|---|---|---|---|---|---|---|---|---|
|
+3 |
T3DSO1204 | Hersteller : TELEDYNE LECROY |
Category: Digital Oscilloscopes Description: Oscilloscope: digital; Ch: 4; 200MHz; 1Gsps; 14Mpts/ch; 1n÷100s/div Dimensions: 312x132.6x151mm Interface: LAN; USB Manufacturer series: T3DSO1000 Time base: 1n...100s/div Rise time: 1.8ns Input sensitivity: 500µV/div...10V/div Number of channels: 4 Vertical resolution: 8bit Supply voltage 400Hz: 100...120V AC Supply voltage: 100...240V AC Max. input voltage: 400V Display resolution: 800x480 Input impedance: 1MΩ/15pF Memory record length: 14Mpts/ch Sampling: 1Gsps Band: 200MHz Measuring instrument features: automatic measurements function; defined part of displayed signal zoom; mathematical functions: addition, subtraction, division, multiplication and FFT Trigger modes: automatic; normal; single Kind of display used: colour; LCD TFT 7" Type of oscilloscope: digital Trigger: dropout; falling-edge; impulse width; pattern width; rising-edge; runt; video signal; window Anzahl je Verpackung: 1 Stücke |
auf Bestellung 3 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||
 |
T3DSO1204 | Hersteller : Teledyne LeCroy Inc |
200 MHz, 500 MS/s per Ch, 1 GS/s interleaved, 4 CH, 7 Mpts/Ch DSO with 7" Color Display |
auf Bestellung 2 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||
|
|
T3DSO1204 | Hersteller : Teledyne LeCroy Inc |
200 MHz, 500 MS/s per Ch, 1 GS/s interleaved, 4 CH, 7 Mpts/Ch DSO with 7" Color Display |
auf Bestellung 2 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||
 |
T3DSO1204 | Hersteller : Teledyne LeCroy |
Benchtop Oscilloscopes 200MHz 500MS/s 4 CH DSO 7 COLOR DISPLAY |
auf Bestellung 3 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||
 |
T3DSO1204 | Hersteller : Teledyne LeCroy |
Description: DSO 200MHZ 1GS/S INTERLEAVED 4CH Packaging: Box Display Type: LCD - Color Function: Record, Trend Memory Size: 28Mpts Interface: RS232, USB Type: Bench, Digital Voltage - Supply: 100 ~ 240VAC Sampling Rate (Per Second): 1G Voltage - Input (Max): CAT II 240V Channels: 4 Analog Input Impedance: 1M Part Status: Active Bandwidth: 200 MHz Rise Time (Typ): 1.8 ns |
auf Bestellung 29 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||
 |
T3DSO1204 | Hersteller : TELEDYNE LECROY |

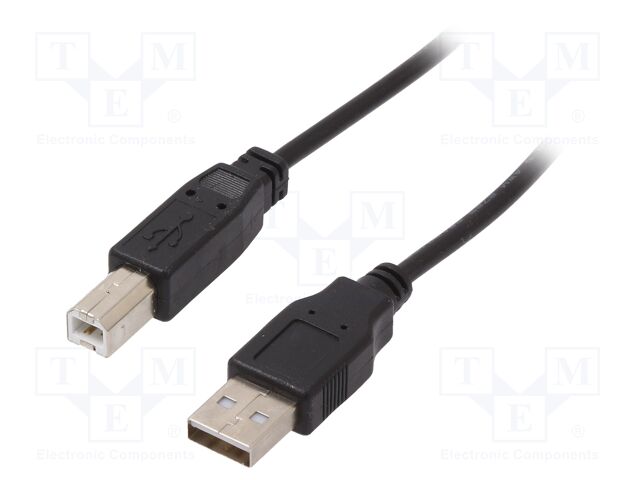

Description: TELEDYNE LECROY - T3DSO1204 - Digitales Oszilloskop, T3DSO1000 Series, 4 Kanäle, 200 MHz, 1 GSPS, 14Mpts, 1.8 ns tariffCode: 90309000 rohsCompliant: YES Lieferumfang des Kits: DSO, 4x passiver 200MHz-Tastkopf, Zertifikat, Kurzanleitung, Netzkabel, USB-Kabel Berechnete Anstiegszeit: 1.8ns hazardous: false rohsPhthalatesCompliant: YES Abtastrate: 1GSPS Aufzeichnungslänge (Speichertiefe): 14Mpts usEccn: 3A992 Netzsteckertyp: - Herstellergewährleistung: 3 Jahre euEccn: NLR Produktpalette: T3DSO1000 Series Bandbreite: 200MHz productTraceability: No Oszilloskopkanäle: 4 Kanäle Oszilloskopanzeige: TFT-LCD-Farbanzeige SVHC: No SVHC (21-Jan-2025) |
auf Bestellung 2 Stücke: Lieferzeit 14-21 Tag (e) |
