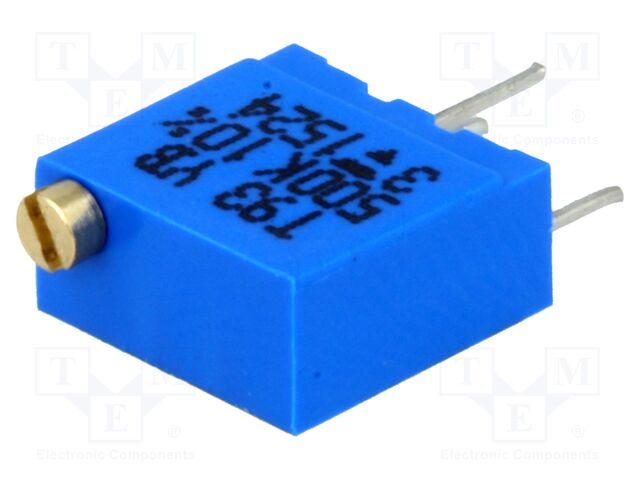

T93YB504KT20 VISHAY
Hersteller: VISHAYCategory: 3/8 inch multiturn THT trimmers
Description: Potentiometer: mounting; multiturn; 500kΩ; 500mW; THT; ±10%; linear
Type of potentiometer: mounting
Kind of potentiometer: multiturn
Resistance: 500kΩ
Power: 0.5W
Tolerance: ±10%
Mounting: THT
Characteristics: linear
Body dimensions: 9.8x9.8x5mm
Track material: cermet
Terminal pitch: 2.5x2.5mm
Max. operating voltage: 250V
Potentiometer series: T93YB
Operating temperature: -55...125°C
Temperature coefficient: 100ppm/°C
Engineering PN: 64Y; 67Y; 3296Y
IP rating: IP67
Potentiometer standard: 3/8"
Number of mechanical turns: 22 ±5
Number of electrical turns: 19 ±2
Torque: 1,5Ncm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 54 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 27+ | 2.72 EUR |
| 33+ | 2.22 EUR |
| 49+ | 1.49 EUR |
| 52+ | 1.4 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details T93YB504KT20 VISHAY
Category: 3/8 inch multiturn THT trimmers, Description: Potentiometer: mounting; multiturn; 500kΩ; 500mW; THT; ±10%; linear, Type of potentiometer: mounting, Kind of potentiometer: multiturn, Resistance: 500kΩ, Power: 0.5W, Tolerance: ±10%, Mounting: THT, Characteristics: linear, Body dimensions: 9.8x9.8x5mm, Track material: cermet, Terminal pitch: 2.5x2.5mm, Max. operating voltage: 250V, Potentiometer series: T93YB, Operating temperature: -55...125°C, Temperature coefficient: 100ppm/°C, Engineering PN: 64Y; 67Y; 3296Y, IP rating: IP67, Potentiometer standard: 3/8", Number of mechanical turns: 22 ±5, Number of electrical turns: 19 ±2, Torque: 1,5Ncm, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote T93YB504KT20 nach Preis ab 1.4 EUR bis 5.54 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
T93YB504KT20 | Hersteller : VISHAY |
Category: 3/8 inch multiturn THT trimmers Description: Potentiometer: mounting; multiturn; 500kΩ; 500mW; THT; ±10%; linear Type of potentiometer: mounting Kind of potentiometer: multiturn Resistance: 500kΩ Power: 0.5W Tolerance: ±10% Mounting: THT Characteristics: linear Body dimensions: 9.8x9.8x5mm Track material: cermet Terminal pitch: 2.5x2.5mm Max. operating voltage: 250V Potentiometer series: T93YB Operating temperature: -55...125°C Temperature coefficient: 100ppm/°C Engineering PN: 64Y; 67Y; 3296Y IP rating: IP67 Potentiometer standard: 3/8" Number of mechanical turns: 22 ±5 Number of electrical turns: 19 ±2 Torque: 1,5Ncm |
auf Bestellung 54 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
T93YB504KT20 | Hersteller : Vishay Sfernice |
Description: TRIMMER 500K OHM 0.5W PC PIN TOP Power (Watts): 0.5W, 1/2W Tolerance: ±10% Packaging: Tube Temperature Coefficient: ±100ppm/°C Adjustment Type: Top Adjustment Size / Dimension: Rectangular - 0.382" x 0.197" Face (9.70mm x 5.00mm) Mounting Type: Through Hole Termination Style: PC Pins Resistive Material: Cermet Part Status: Active Resistance: 500 kOhms Number of Turns: 21 |
auf Bestellung 162 Stücke: Lieferzeit 21-28 Tag (e) |
|
||||||||||||||||
 |
T93YB504KT20 | Hersteller : Vishay / Sfernice |
Trimmer Resistors - Through Hole 3/8" SQ V/ADJ 500K |
auf Bestellung 704 Stücke: Lieferzeit 14-28 Tag (e) |
|
||||||||||||||||
 |
T93YB504KT20 | Hersteller : VISHAY |
Description: VISHAY - T93YB504KT20 - Trimmpotentiometer, Mehrgängig, Cermet, Einstellung oben, 500 kohm, Durchsteckmontage tariffCode: 85334010 Produkthöhe: 9.8mm rohsCompliant: YES Anzahl der Umdrehungen: 23Umdrehung(en) hazardous: false rohsPhthalatesCompliant: YES Nennleistung: 500mW Bahnwiderstand: 500kohm usEccn: EAR99 Betriebstemperatur, min.: -55°C Produktlänge: 9.7mm euEccn: NLR productTraceability: Yes-Date/Lot Code Betriebstemperatur, max.: 155°C Produktbreite: 5mm |
auf Bestellung 774 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
| T93YB504KT20 | Hersteller : Vishay |
Multiturn cermet trimmer; 500kR; 22 turns; THT; 9.8x9.7x5mm; power: 0,5W; tolerance: 10%; 100ppm/°C; r=2.5mm; operating temperature: -55?155°C; IP67 T93YB504KT20 Vishay Trimmer PO T93YB504KT20 Anzahl je Verpackung: 10 Stücke |
auf Bestellung 47 Stücke: Lieferzeit 7-14 Tag (e) |
|
