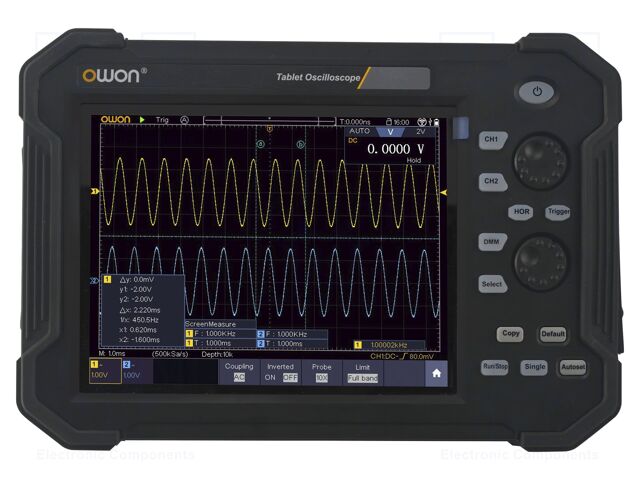

TAO3072 Owon Technology Lilliput Electronics (USA) Inc

Category: Portable Oscilloscopes, Scopemeters, Description: Handheld oscilloscope; 70MHz; 8bit; LCD TFT 8"; Ch: 2; 1Gsps; ≤5ns, Manufacturer series: TAO3000, Power supply: rechargeable battery Li-Ion 7,4V 8000mAh x1, Touchpad: yes, Time base: 1n...1ks/div, Rise time: ≤5ns, Input sensitivity: 1mV/div...10V/div, Dimensions: 270x191x48mm, Number of channels: 2, Vertical resolution: 8bit, Measurement memory: 100, Display resolution: 800x600, Input impedance: 1MΩ/15pF, Memory record length: 40Mpts, Band: 70MHz, Sampling: 1Gsps, Input coupling: AC, DC, GND, Standard equipment: adapter AC; BNC adapter; extension module; mains cable; mounting holder; oscilloscope probe x2; probe adjust; test leads ( 2pcs.); USB micro cable, Measuring instrument features: advenced trigger and bus decoding function; data logger function; mathematical functions: addition, subtraction, division, multiplication and FFT, Trigger modes: automatic; normal; single, Trigger: CAN; falling-edge; I2C; pattern width; pulse; rising-edge; RS232/UART; runt; serial protocol; slope; SPI; timeout; video signal; window, Interface: LAN; USB device; USB Host, Trigger source: CH1; CH2, Connectors for the country: Europe, Type of oscilloscope: handheld oscilloscope, Software: LabVIEW, Kind of display used: LCD TFT 8", Additional functions: multimeter.
