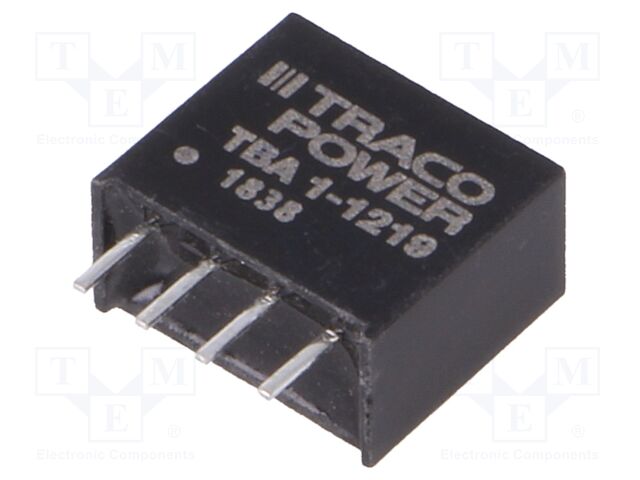

TBA 1-1219 TRACO POWER
Hersteller: TRACO POWER
Category: DC/DC Converters
Description: Converter: DC/DC; 1W; Uin: 10.8÷13.2VDC; Uout: 9VDC; Iout: 110mA
Type of converter: DC/DC
Power: 1W
Input voltage: 10.8...13.2V DC
Output voltage: 9V DC
Output current: 0.11A
Case: SIP4
Mounting: THT
Manufacturer series: TBA 1
Body dimensions: 11.68x9.65x6mm
Efficiency: 79%
Operating temperature: -40...85°C
Switching frequency: 200kHz
Protection: short circuit protection SCP
Insulation voltage: 1.5kV
Number of outputs: 1
| Anzahl | Preis |
|---|---|
| 20+ | 3.63 EUR |
| 21+ | 3.45 EUR |
| 30+ | 3.33 EUR |
| 100+ | 3.3 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TBA 1-1219 TRACO POWER
Description: DC DC CONVERTER 9V 990MW, Voltage - Input (Min): 10.8V, Current - Output (Max): 110mA, Efficiency: 79%, Voltage - Input (Max): 13.2V, Applications: ITE (Commercial), Operating Temperature: -40°C ~ 95°C (With Derating), Type: Isolated Module, Mounting Type: Through Hole, Size / Dimension: 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm), Package / Case: 4-SIP Module, Features: SCP, Packaging: Tube, Voltage - Isolation: 1.5 kV, Number of Outputs: 1, Power (Watts): 990 mW, Part Status: Active, Voltage - Output 1: 9V.
Weitere Produktangebote TBA 1-1219 nach Preis ab 4.14 EUR bis 6.53 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TBA 1-1219 | TRACO Power |
DC/DC Converters - Through Hole 1W DC/DC Converter isolated, unregulated in a PCB Mount Plastic Case |
auf Bestellung 75 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
| TBA 1-1219 | Traco Power |
Description: DC DC CONVERTER 9V 990MW Voltage - Input (Min): 10.8V Current - Output (Max): 110mA Efficiency: 79% Voltage - Input (Max): 13.2V Applications: ITE (Commercial) Operating Temperature: -40°C ~ 95°C (With Derating) Type: Isolated Module Mounting Type: Through Hole Size / Dimension: 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm) Package / Case: 4-SIP Module Features: SCP Packaging: Tube Voltage - Isolation: 1.5 kV Number of Outputs: 1 Power (Watts): 990 mW Part Status: Active Voltage - Output 1: 9V |
auf Bestellung 31 Stücke: Lieferzeit 10-14 Tag (e) |
|
| TBA 1-1219 |
|
Hersteller: TRACO Power
DC/DC Converters - Through Hole 1W DC/DC Converter isolated, unregulated in a PCB Mount Plastic Case
DC/DC Converters - Through Hole 1W DC/DC Converter isolated, unregulated in a PCB Mount Plastic Case
auf Bestellung 75 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 4.98 EUR |
| 10+ | 4.84 EUR |
| 20+ | 4.7 EUR |
| 50+ | 4.44 EUR |
| 100+ | 4.29 EUR |
| 200+ | 4.15 EUR |
| 500+ | 4.14 EUR |
| TBA 1-1219 |
|
Hersteller: Traco Power
Description: DC DC CONVERTER 9V 990MW
Voltage - Input (Min): 10.8V
Current - Output (Max): 110mA
Efficiency: 79%
Voltage - Input (Max): 13.2V
Applications: ITE (Commercial)
Operating Temperature: -40°C ~ 95°C (With Derating)
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm)
Package / Case: 4-SIP Module
Features: SCP
Packaging: Tube
Voltage - Isolation: 1.5 kV
Number of Outputs: 1
Power (Watts): 990 mW
Part Status: Active
Voltage - Output 1: 9V
Description: DC DC CONVERTER 9V 990MW
Voltage - Input (Min): 10.8V
Current - Output (Max): 110mA
Efficiency: 79%
Voltage - Input (Max): 13.2V
Applications: ITE (Commercial)
Operating Temperature: -40°C ~ 95°C (With Derating)
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm)
Package / Case: 4-SIP Module
Features: SCP
Packaging: Tube
Voltage - Isolation: 1.5 kV
Number of Outputs: 1
Power (Watts): 990 mW
Part Status: Active
Voltage - Output 1: 9V
auf Bestellung 31 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 3+ | 6.53 EUR |
| 10+ | 6.36 EUR |
| 25+ | 6.17 EUR |
