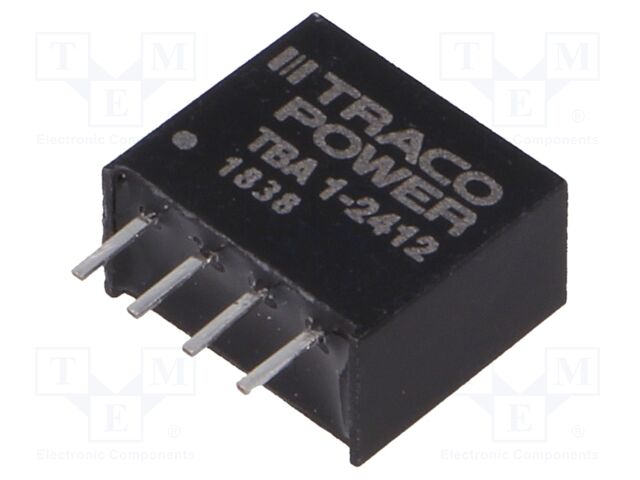

TBA 1-2412 TRACO POWER
Hersteller: TRACO POWER
Category: DC/DC Converters
Description: Converter: DC/DC; 1W; Uin: 21.6÷26.4VDC; Uout: 12VDC; Iout: 80mA
Type of converter: DC/DC
Input voltage: 21.6...26.4V DC
Output voltage: 12V DC
Output current: 80mA
Case: SIP4
Mounting: THT
Manufacturer series: TBA 1
Body dimensions: 11.68x9.65x6mm
Efficiency: 82%
Operating temperature: -40...85°C
Switching frequency: 200kHz
Protection: short circuit protection SCP
Number of outputs: 1
Power: 1W
Insulation voltage: 1.5kV
| Anzahl | Preis |
|---|---|
| 19+ | 3.79 EUR |
| 20+ | 3.59 EUR |
| 30+ | 3.49 EUR |
| 100+ | 3.45 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TBA 1-2412 TRACO POWER
Description: DC DC CONVERTER 12V 960MW, Efficiency: 82%, Voltage - Input (Max): 26.4V, Applications: ITE (Commercial), Operating Temperature: -40°C ~ 95°C (With Derating), Type: Isolated Module, Mounting Type: Through Hole, Size / Dimension: 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm), Package / Case: 4-SIP Module, Features: SCP, Packaging: Tube, Voltage - Isolation: 1.5 kV, Number of Outputs: 1, Power (Watts): 960 mW, Part Status: Active, Voltage - Output 1: 12V, Voltage - Input (Min): 21.6V, Current - Output (Max): 80mA.
Weitere Produktangebote TBA 1-2412 nach Preis ab 4.47 EUR bis 5.63 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TBA 1-2412 | TRACO Power |
DC/DC Converters - Through Hole 1W DC/DC Converter isolated, unregulated in a PCB Mount Plastic Case |
auf Bestellung 2337 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
TBA 1-2412 | Traco Power |
Description: DC DC CONVERTER 12V 960MW Efficiency: 82% Voltage - Input (Max): 26.4V Applications: ITE (Commercial) Operating Temperature: -40°C ~ 95°C (With Derating) Type: Isolated Module Mounting Type: Through Hole Size / Dimension: 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm) Package / Case: 4-SIP Module Features: SCP Packaging: Tube Voltage - Isolation: 1.5 kV Number of Outputs: 1 Power (Watts): 960 mW Part Status: Active Voltage - Output 1: 12V Voltage - Input (Min): 21.6V Current - Output (Max): 80mA |
auf Bestellung 280 Stücke: Lieferzeit 10-14 Tag (e) |
|
| TBA 1-2412 |
|
Hersteller: TRACO Power
DC/DC Converters - Through Hole 1W DC/DC Converter isolated, unregulated in a PCB Mount Plastic Case
DC/DC Converters - Through Hole 1W DC/DC Converter isolated, unregulated in a PCB Mount Plastic Case
auf Bestellung 2337 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 4.98 EUR |
| 10+ | 4.88 EUR |
| 500+ | 4.47 EUR |
| TBA 1-2412 |
|
Hersteller: Traco Power
Description: DC DC CONVERTER 12V 960MW
Efficiency: 82%
Voltage - Input (Max): 26.4V
Applications: ITE (Commercial)
Operating Temperature: -40°C ~ 95°C (With Derating)
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm)
Package / Case: 4-SIP Module
Features: SCP
Packaging: Tube
Voltage - Isolation: 1.5 kV
Number of Outputs: 1
Power (Watts): 960 mW
Part Status: Active
Voltage - Output 1: 12V
Voltage - Input (Min): 21.6V
Current - Output (Max): 80mA
Description: DC DC CONVERTER 12V 960MW
Efficiency: 82%
Voltage - Input (Max): 26.4V
Applications: ITE (Commercial)
Operating Temperature: -40°C ~ 95°C (With Derating)
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm)
Package / Case: 4-SIP Module
Features: SCP
Packaging: Tube
Voltage - Isolation: 1.5 kV
Number of Outputs: 1
Power (Watts): 960 mW
Part Status: Active
Voltage - Output 1: 12V
Voltage - Input (Min): 21.6V
Current - Output (Max): 80mA
auf Bestellung 280 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 4+ | 5.63 EUR |
| 5+ | 5.35 EUR |
| 10+ | 5.24 EUR |
| 30+ | 5.07 EUR |
| 50+ | 4.99 EUR |
| 100+ | 4.89 EUR |
| 250+ | 4.75 EUR |
