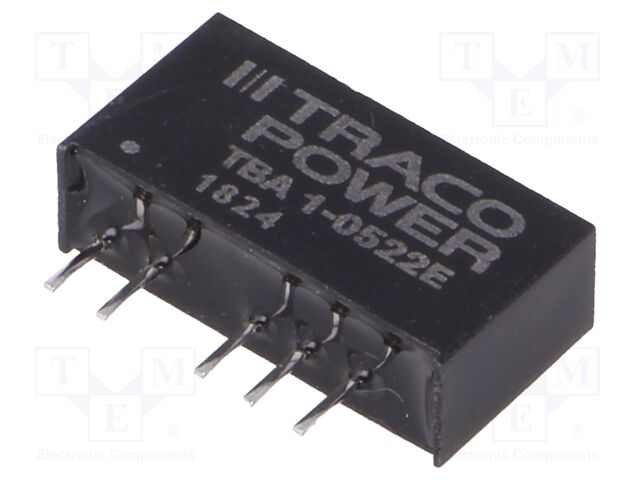

TBA 1-0522E TRACO POWER
Hersteller: TRACO POWERCategory: DC/DC Converters
Description: Converter: DC/DC; 1W; Uin: 4.5÷5.5VDC; Uout: 12VDC; Uout2: -12VDC
Output current: 41mA
Case: SIP7
Operating temperature: -40...85°C
Efficiency: 82%
Body dimensions: 19.5x9.5x6mm
Output voltage: 12V DC
Insulation voltage: 1.5kV
Input voltage: 4.5...5.5V DC
Type of converter: DC/DC
Output voltage 2: -12V DC
Switching frequency: 200kHz
Protection: short circuit protection SCP
Output current 2: 41mA
Manufacturer series: TBA 1E
Power: 1W
Number of outputs: 2
auf Bestellung 34 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 18+ | 3.99 EUR |
| 19+ | 3.88 EUR |
| 30+ | 3.86 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TBA 1-0522E TRACO POWER
Description: DC DC CONVERTER +/-12V 984MW, Packaging: Tube, Features: SCP, Package / Case: 7-SIP Module, 5 Leads, Size / Dimension: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm), Mounting Type: Through Hole, Type: Isolated Module, Operating Temperature: -40°C ~ 95°C (With Derating), Applications: ITE (Commercial), Voltage - Input (Max): 5.5V, Efficiency: 82%, Current - Output (Max): 41mA, 41mA, Voltage - Input (Min): 4.5V, Voltage - Output 1: 12V, Voltage - Output 2: -12V, Part Status: Active, Power (Watts): 984 mW, Number of Outputs: 2, Voltage - Isolation: 1.5 kV.
Weitere Produktangebote TBA 1-0522E nach Preis ab 3.73 EUR bis 6.12 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
TBA 1-0522E | Hersteller : TRACO POWER |
Category: DC/DC Converters Description: Converter: DC/DC; 1W; Uin: 4.5÷5.5VDC; Uout: 12VDC; Uout2: -12VDC Output current: 41mA Case: SIP7 Operating temperature: -40...85°C Efficiency: 82% Body dimensions: 19.5x9.5x6mm Output voltage: 12V DC Insulation voltage: 1.5kV Input voltage: 4.5...5.5V DC Type of converter: DC/DC Output voltage 2: -12V DC Switching frequency: 200kHz Protection: short circuit protection SCP Output current 2: 41mA Manufacturer series: TBA 1E Power: 1W Number of outputs: 2 Anzahl je Verpackung: 1 Stücke |
auf Bestellung 34 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||||||
 |
TBA 1-0522E | Hersteller : TRACO Power |
Isolated DC/DC Converters - Through Hole 1W DC/DC Converter isolated, unregulated in a PCB Mount Plastic Case |
auf Bestellung 149 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
TBA 1-0522E | Hersteller : Traco Power |
Description: DC DC CONVERTER +/-12V 984MW Packaging: Tube Features: SCP Package / Case: 7-SIP Module, 5 Leads Size / Dimension: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 95°C (With Derating) Applications: ITE (Commercial) Voltage - Input (Max): 5.5V Efficiency: 82% Current - Output (Max): 41mA, 41mA Voltage - Input (Min): 4.5V Voltage - Output 1: 12V Voltage - Output 2: -12V Part Status: Active Power (Watts): 984 mW Number of Outputs: 2 Voltage - Isolation: 1.5 kV |
auf Bestellung 90 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
TBA 1-0522E | Hersteller : Traco Power |
Module DC-DC 5VIN 2-OUT -12V/12V 0.041A/0.041A 1W 5-Pin SIP Module |
auf Bestellung 34 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
|
|
TBA 1-0522E | Hersteller : Traco Power |
Module DC-DC 5VIN 2-OUT -12V/12V 0.041A/0.041A 1W 5-Pin SIP Module |
auf Bestellung 10 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
|
|
TBA 1-0522E | Hersteller : Traco Power |
Module DC-DC 5VIN 2-OUT -12V/12V 0.041A/0.041A 1W 5-Pin SIP Module |
auf Bestellung 10 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
| TBA 1-0522E | Hersteller : Traco Power |
Module DC-DC 5VIN 2-OUT 12V/-12V 0.041A/-0.041A 1W |
auf Bestellung 10 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||||||
|
TBA1-0522E Produktcode: 191362
