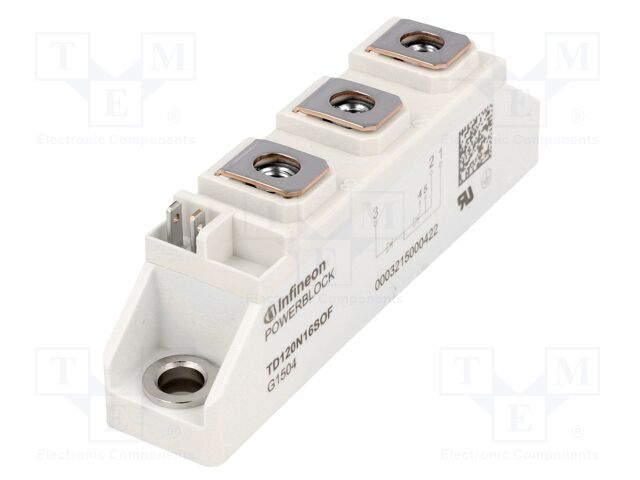

TD120N16SOFHPSA1 INFINEON TECHNOLOGIES

Category: Diode - thyristor modules
Description: Module: diode-thyristor; 1.6kV; 120A; BG-SB20-1; Ufmax: 1.75V
Case: BG-SB20-1
Max. off-state voltage: 1.6kV
Max. load current: 190A
Max. forward voltage: 1.75V
Load current: 120A
Semiconductor structure: double series
Gate current: 100mA
Max. forward impulse current: 2.25kA
Electrical mounting: screw
Mechanical mounting: screw
Type of module: diode-thyristor
Anzahl je Verpackung: 1 Stücke
auf Bestellung 12 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis |
---|---|
3+ | 32.62 EUR |
10+ | 31.83 EUR |
24+ | 31.36 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TD120N16SOFHPSA1 INFINEON TECHNOLOGIES
Description: INFINEON - TD120N16SOFHPSA1 - Thyristormodul, Reihenschaltung, 190A, 1.6kV, tariffCode: 85413000, rohsCompliant: YES, hazardous: false, rohsPhthalatesCompliant: YES, usEccn: EAR99, Durchschnittlicher Durchlassstrom: 119A, euEccn: NLR, RMS-Durchlassstrom: 190A, Zündspannung, max.: 2.5V, Periodische Spitzen-Sperrspannung: 1.6kV, Wiederkehrende Spitzensperrspannung: 1.6kV, SCR-Modul: Reihenschaltung - SCR / Diode, Anzahl der Pins: 5Pin(s), Produktpalette: -, Zündstrom, max.: 100mA, productTraceability: Yes-Date/Lot Code, Thyristormontage: Platte, Bauform - Thyristor: Modul, Betriebstemperatur, max.: 125°C, SVHC: No SVHC (21-Jan-2025).
Weitere Produktangebote TD120N16SOFHPSA1 nach Preis ab 31.83 EUR bis 54.14 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
TD120N16SOFHPSA1 | Hersteller : INFINEON TECHNOLOGIES |
![]() Description: Module: diode-thyristor; 1.6kV; 120A; BG-SB20-1; Ufmax: 1.75V Case: BG-SB20-1 Max. off-state voltage: 1.6kV Max. load current: 190A Max. forward voltage: 1.75V Load current: 120A Semiconductor structure: double series Gate current: 100mA Max. forward impulse current: 2.25kA Electrical mounting: screw Mechanical mounting: screw Type of module: diode-thyristor |
auf Bestellung 12 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
![]() |
TD120N16SOFHPSA1 | Hersteller : Infineon Technologies |
![]() |
auf Bestellung 357 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
|
TD120N16SOFHPSA1 | Hersteller : Infineon Technologies |
![]() Packaging: Tray Package / Case: Module Mounting Type: Chassis Mount Operating Temperature: 130°C (TJ) Structure: Series Connection - SCR/Diode Current - Hold (Ih) (Max): 250 mA Current - Gate Trigger (Igt) (Max): 100 mA Number of SCRs, Diodes: 1 SCR, 1 Diode Current - On State (It (AV)) (Max): 119 A Voltage - Gate Trigger (Vgt) (Max): 2.5 V Current - On State (It (RMS)) (Max): 190 A Voltage - Off State: 1.6 kV |
auf Bestellung 101 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
![]() |
TD120N16SOFHPSA1 | Hersteller : Infineon Technologies |
![]() |
auf Bestellung 12 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||
![]() |
TD120N16SOFHPSA1 | Hersteller : INFINEON |
![]() tariffCode: 85413000 rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: YES usEccn: EAR99 Durchschnittlicher Durchlassstrom: 119A euEccn: NLR RMS-Durchlassstrom: 190A Zündspannung, max.: 2.5V Periodische Spitzen-Sperrspannung: 1.6kV Wiederkehrende Spitzensperrspannung: 1.6kV SCR-Modul: Reihenschaltung - SCR / Diode Anzahl der Pins: 5Pin(s) Produktpalette: - Zündstrom, max.: 100mA productTraceability: Yes-Date/Lot Code Thyristormontage: Platte Bauform - Thyristor: Modul Betriebstemperatur, max.: 125°C SVHC: No SVHC (21-Jan-2025) |
auf Bestellung 1 Stücke: Lieferzeit 14-21 Tag (e) |
