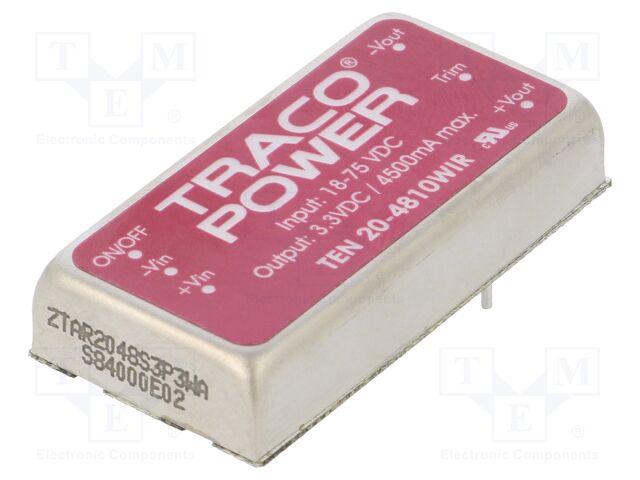

TEN 20-4810WIR TRACO POWER
Hersteller: TRACO POWERCategory: DC/DC Converters
Description: Converter: DC/DC; 20W; Uin: 18÷75VDC; Uout: 3.3VDC; Iout: 4500mA
Type of converter: DC/DC
Power: 20W
Input voltage: 18...75V DC
Output voltage: 3.3V DC
Output current: 4.5A
Case: 2"x1"
Manufacturer series: TEN 20WIR
Body dimensions: 50.8x25.4x10.2mm
Efficiency: 85%
Operating temperature: -40...85°C
Switching frequency: 330kHz
Protection: anti-overload OPP; anti-overvoltage OVP; short circuit protection SCP
Insulation voltage: 2.25kV
Number of outputs: 1
Application: railway industry
Conform to the norm: EN 50155
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details TEN 20-4810WIR TRACO POWER
Category: DC/DC Converters, Description: Converter: DC/DC; 20W; Uin: 18÷75VDC; Uout: 3.3VDC; Iout: 4500mA, Type of converter: DC/DC, Power: 20W, Input voltage: 18...75V DC, Output voltage: 3.3V DC, Output current: 4.5A, Case: 2"x1", Manufacturer series: TEN 20WIR, Body dimensions: 50.8x25.4x10.2mm, Efficiency: 85%, Operating temperature: -40...85°C, Switching frequency: 330kHz, Protection: anti-overload OPP; anti-overvoltage OVP; short circuit protection SCP, Insulation voltage: 2.25kV, Number of outputs: 1, Application: railway industry, Conform to the norm: EN 50155, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote TEN 20-4810WIR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
TEN 20-4810WIR | Hersteller : Traco Power |
Description: DC DC CONVERTER 3.3V 15W Features: Remote On/Off, OCP, OVP, SCP Packaging: Tube Package / Case: 6-DIP Module Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 85°C (With Derating) Applications: ITE (Commercial), Railway Voltage - Input (Max): 75V Efficiency: 85% Current - Output (Max): 4.5A Voltage - Input (Min): 18V Voltage - Output 1: 3.3V Power (Watts): 15 W Number of Outputs: 1 Voltage - Isolation: 2.25 kV |
Produkt ist nicht verfügbar |
|
 |
TEN 20-4810WIR | Hersteller : TRACO Power |
Isolated DC/DC Converters - Through Hole 15W DC/DC Converter isolated, regulated in a PCB Mount Metal Case |
Produkt ist nicht verfügbar |
|
|
|
TEN 20-4810WIR | Hersteller : TRACO POWER |
Category: DC/DC Converters Description: Converter: DC/DC; 20W; Uin: 18÷75VDC; Uout: 3.3VDC; Iout: 4500mA Type of converter: DC/DC Power: 20W Input voltage: 18...75V DC Output voltage: 3.3V DC Output current: 4.5A Case: 2"x1" Manufacturer series: TEN 20WIR Body dimensions: 50.8x25.4x10.2mm Efficiency: 85% Operating temperature: -40...85°C Switching frequency: 330kHz Protection: anti-overload OPP; anti-overvoltage OVP; short circuit protection SCP Insulation voltage: 2.25kV Number of outputs: 1 Application: railway industry Conform to the norm: EN 50155 |
Produkt ist nicht verfügbar |
