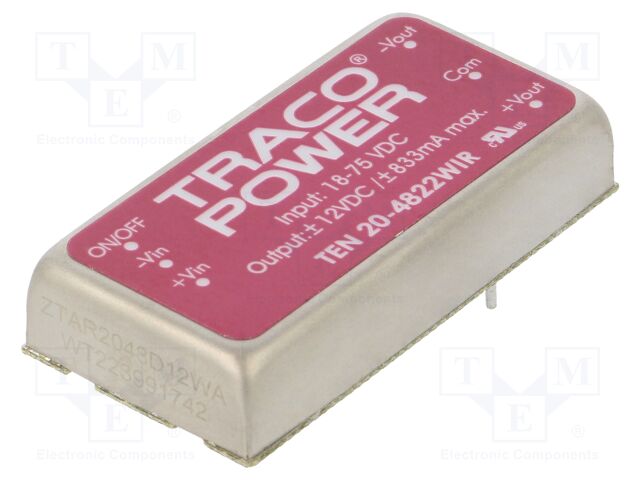

TEN 20-4822WIR TRACO POWER
Hersteller: TRACO POWER
Category: DC/DC Converters
Description: Converter: DC/DC; 20W; Uin: 18÷75VDC; Uout: 12VDC; Uout2: -12VDC
Type of converter: DC/DC
Power: 20W
Input voltage: 18...75V DC
Output voltage: 12V DC
Output voltage 2: -12V DC
Output current: 0.833A
Output current 2: 833mA
Mounting: THT
Manufacturer series: TEN 20WIR
Body dimensions: 50.8x25.4x10.2mm
Efficiency: 88%
Operating temperature: -40...85°C
Switching frequency: 330kHz
Protection: anti-overload OPP; anti-overvoltage OVP; short circuit protection SCP
Insulation voltage: 2.25kV
Number of outputs: 2
Dimensions: 2"x1"
Conform to the norm: EN 50155
Application: railway industry
Produktrezensionen
Produktbewertung abgeben
Technische Details TEN 20-4822WIR TRACO POWER
Category: DC/DC Converters, Description: Converter: DC/DC; 20W; Uin: 18÷75VDC; Uout: 12VDC; Uout2: -12VDC, Type of converter: DC/DC, Power: 20W, Input voltage: 18...75V DC, Output voltage: 12V DC, Output voltage 2: -12V DC, Output current: 0.833A, Output current 2: 833mA, Mounting: THT, Manufacturer series: TEN 20WIR, Body dimensions: 50.8x25.4x10.2mm, Efficiency: 88%, Operating temperature: -40...85°C, Switching frequency: 330kHz, Protection: anti-overload OPP; anti-overvoltage OVP; short circuit protection SCP, Insulation voltage: 2.25kV, Number of outputs: 2, Dimensions: 2"x1", Conform to the norm: EN 50155, Application: railway industry.
Weitere Produktangebote TEN 20-4822WIR nach Preis ab 105.58 EUR bis 134.66 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TEN 20-4822WIR | TRACO Power |
DC/DC Converters - Through Hole 20W DC/DC Converter isolated, regulated in a PCB Mount Metal Case |
auf Bestellung 10 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
TEN 20-4822WIR | Traco Power |
Description: DC DC CONVERTER +/-12V 20W Features: Remote On/Off, OCP, OVP, SCP Packaging: Tube Package / Case: 6-DIP Module Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 85°C (With Derating) Applications: ITE (Commercial), Railway Voltage - Input (Max): 75V Efficiency: 88% Current - Output (Max): 833mA, 833mA Voltage - Input (Min): 18V Voltage - Output 1: 12V Voltage - Output 2: -12V Power (Watts): 20 W Number of Outputs: 2 Voltage - Isolation: 2.25 kV |
auf Bestellung 19 Stücke: Lieferzeit 10-14 Tag (e) |
|
| TEN 20-4822WIR |
|
Hersteller: TRACO Power
DC/DC Converters - Through Hole 20W DC/DC Converter isolated, regulated in a PCB Mount Metal Case
DC/DC Converters - Through Hole 20W DC/DC Converter isolated, regulated in a PCB Mount Metal Case
auf Bestellung 10 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 134.08 EUR |
| 10+ | 117 EUR |
| 20+ | 114.49 EUR |
| 50+ | 112.6 EUR |
| 100+ | 110.77 EUR |
| 200+ | 105.58 EUR |
| TEN 20-4822WIR |
|
Hersteller: Traco Power
Description: DC DC CONVERTER +/-12V 20W
Features: Remote On/Off, OCP, OVP, SCP
Packaging: Tube
Package / Case: 6-DIP Module
Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C (With Derating)
Applications: ITE (Commercial), Railway
Voltage - Input (Max): 75V
Efficiency: 88%
Current - Output (Max): 833mA, 833mA
Voltage - Input (Min): 18V
Voltage - Output 1: 12V
Voltage - Output 2: -12V
Power (Watts): 20 W
Number of Outputs: 2
Voltage - Isolation: 2.25 kV
Description: DC DC CONVERTER +/-12V 20W
Features: Remote On/Off, OCP, OVP, SCP
Packaging: Tube
Package / Case: 6-DIP Module
Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C (With Derating)
Applications: ITE (Commercial), Railway
Voltage - Input (Max): 75V
Efficiency: 88%
Current - Output (Max): 833mA, 833mA
Voltage - Input (Min): 18V
Voltage - Output 1: 12V
Voltage - Output 2: -12V
Power (Watts): 20 W
Number of Outputs: 2
Voltage - Isolation: 2.25 kV
auf Bestellung 19 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 134.66 EUR |
| 5+ | 126.08 EUR |
| 10+ | 117.5 EUR |
