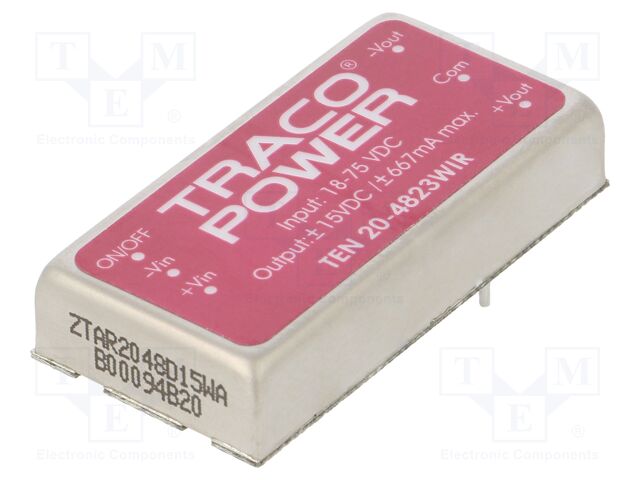

TEN 20-4823WIR TRACO POWER
Hersteller: TRACO POWER
Category: DC/DC Converters
Description: Converter: DC/DC; 20W; Uin: 18÷75VDC; Uout: 15VDC; Uout2: -15VDC
Type of converter: DC/DC
Power: 20W
Input voltage: 18...75V DC
Output voltage: 15V DC
Output voltage 2: -15V DC
Output current: 0.667A
Output current 2: 667mA
Mounting: THT
Manufacturer series: TEN 20WIR
Body dimensions: 50.8x25.4x10.2mm
Efficiency: 89%
Operating temperature: -40...85°C
Switching frequency: 330kHz
Protection: anti-overload OPP; anti-overvoltage OVP; short circuit protection SCP
Insulation voltage: 2.25kV
Number of outputs: 2
Dimensions: 2"x1"
Conform to the norm: EN 50155
Application: railway industry
Produktrezensionen
Produktbewertung abgeben
Technische Details TEN 20-4823WIR TRACO POWER
Category: DC/DC Converters, Description: Converter: DC/DC; 20W; Uin: 18÷75VDC; Uout: 15VDC; Uout2: -15VDC, Type of converter: DC/DC, Power: 20W, Input voltage: 18...75V DC, Output voltage: 15V DC, Output voltage 2: -15V DC, Output current: 0.667A, Output current 2: 667mA, Mounting: THT, Manufacturer series: TEN 20WIR, Body dimensions: 50.8x25.4x10.2mm, Efficiency: 89%, Operating temperature: -40...85°C, Switching frequency: 330kHz, Protection: anti-overload OPP; anti-overvoltage OVP; short circuit protection SCP, Insulation voltage: 2.25kV, Number of outputs: 2, Dimensions: 2"x1", Conform to the norm: EN 50155, Application: railway industry.
Weitere Produktangebote TEN 20-4823WIR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
|---|---|---|---|---|---|
| TEN 20-4823WIR | Traco Power |
DC/DC, 20W, Вхід: 18-75 VDC, Вихід: ±15V/±665А, ізоляція 2250VDC, корпус 2`` x 1``, -40...+86 C DC-DC-перетворювачі на друковану плату в корпусі DIP потужністю від 15-60 Вт Anzahl je Verpackung: 10 Stücke |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH | |
 |
TEN 20-4823WIR | Traco Power |
Description: DC DC CONVERTER +/-15V 20W Applications: ITE (Commercial), Railway Operating Temperature: -40°C ~ 85°C (With Derating) Type: Isolated Module Mounting Type: Through Hole Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) Package / Case: 6-DIP Module Features: Remote On/Off, OCP, OVP, SCP Packaging: Tube Voltage - Isolation: 2.25 kV Number of Outputs: 2 Power (Watts): 20 W Part Status: Active Voltage - Output 2: -15V Voltage - Output 1: 15V Voltage - Input (Min): 18V Current - Output (Max): 667mA, 667mA Efficiency: 89% Voltage - Input (Max): 75V |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 10 Stücke Im Einkaufswagen Stück im Wert von UAH |
 |
TEN 20-4823WIR | TRACO Power |
DC/DC Converters - Through Hole 20W DC/DC Converter isolated, regulated in a PCB Mount Metal Case |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| TEN 20-4823WIR |
|
Hersteller: Traco Power
DC/DC, 20W, Вхід: 18-75 VDC, Вихід: ±15V/±665А, ізоляція 2250VDC, корпус 2`` x 1``, -40...+86 C DC-DC-перетворювачі на друковану плату в корпусі DIP потужністю від 15-60 Вт
Anzahl je Verpackung: 10 Stücke
DC/DC, 20W, Вхід: 18-75 VDC, Вихід: ±15V/±665А, ізоляція 2250VDC, корпус 2`` x 1``, -40...+86 C DC-DC-перетворювачі на друковану плату в корпусі DIP потужністю від 15-60 Вт
Anzahl je Verpackung: 10 Stücke
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
| TEN 20-4823WIR |
|
Hersteller: Traco Power
Description: DC DC CONVERTER +/-15V 20W
Applications: ITE (Commercial), Railway
Operating Temperature: -40°C ~ 85°C (With Derating)
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Package / Case: 6-DIP Module
Features: Remote On/Off, OCP, OVP, SCP
Packaging: Tube
Voltage - Isolation: 2.25 kV
Number of Outputs: 2
Power (Watts): 20 W
Part Status: Active
Voltage - Output 2: -15V
Voltage - Output 1: 15V
Voltage - Input (Min): 18V
Current - Output (Max): 667mA, 667mA
Efficiency: 89%
Voltage - Input (Max): 75V
Description: DC DC CONVERTER +/-15V 20W
Applications: ITE (Commercial), Railway
Operating Temperature: -40°C ~ 85°C (With Derating)
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Package / Case: 6-DIP Module
Features: Remote On/Off, OCP, OVP, SCP
Packaging: Tube
Voltage - Isolation: 2.25 kV
Number of Outputs: 2
Power (Watts): 20 W
Part Status: Active
Voltage - Output 2: -15V
Voltage - Output 1: 15V
Voltage - Input (Min): 18V
Current - Output (Max): 667mA, 667mA
Efficiency: 89%
Voltage - Input (Max): 75V
Produkt ist nicht verfügbar
Mindestbestellmenge: 10 Stücke
Im Einkaufswagen
Stück im Wert von UAH
| TEN 20-4823WIR |
|
Hersteller: TRACO Power
DC/DC Converters - Through Hole 20W DC/DC Converter isolated, regulated in a PCB Mount Metal Case
DC/DC Converters - Through Hole 20W DC/DC Converter isolated, regulated in a PCB Mount Metal Case
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
