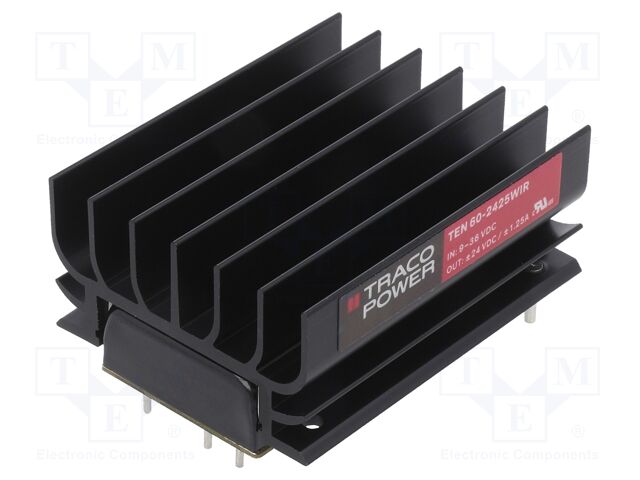

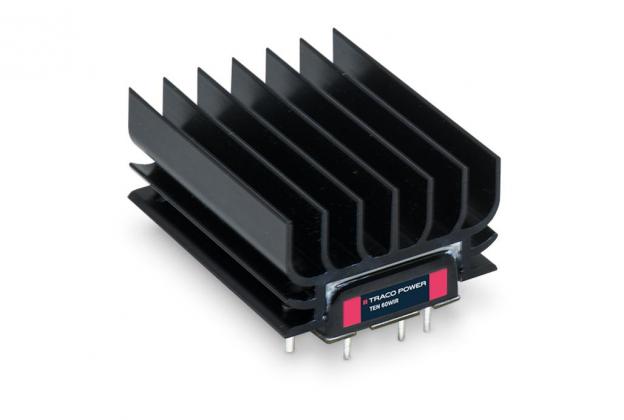

TEN 60-2425WIR TRACO POWER
Hersteller: TRACO POWER
Category: DC/DC Converters
Description: Converter: DC/DC; 60W; Uin: 18÷36VDC; Uout: 24VDC; Uout2: -24VDC
Type of converter: DC/DC
Power: 60W
Input voltage: 18...36V DC
Output voltage: 24V DC
Output current: 1.25A
Mounting: THT
Manufacturer series: TEN 60WIR
Body dimensions: 50.8x40.7x25.4mm
Efficiency: 92%
Operating temperature: -40...90°C
Switching frequency: 250kHz
Protection: voltage drop BOP
Insulation voltage: 3kV
Number of outputs: 2
Application: railway industry
Conform to the norm: EN 50155
Output voltage 2: -24V DC
Output current 2: 1.25A
Dimensions: 2"x1"
Produktrezensionen
Produktbewertung abgeben
Technische Details TEN 60-2425WIR TRACO POWER
Description: DC DC CONVERTER +/-24V 60W, Voltage - Isolation: 3 kV, Number of Outputs: 2, Power (Watts): 60 W, Part Status: Active, Voltage - Output 2: -24V, Voltage - Output 1: 24V, Voltage - Input (Min): 9V, Current - Output (Max): 1.25A, 1.25A, Efficiency: 92%, Voltage - Input (Max): 36V, Applications: ITE (Commercial), Railway, Operating Temperature: -40°C ~ 85°C (With Derating), Type: Isolated Module, Mounting Type: Through Hole, Size / Dimension: 2.00" L x 1.60" W x 1.00" H (50.8mm x 40.7mm x 25.4mm), Package / Case: 8-DIP Module, Features: Adjustable Output, Remote On/Off, Packaging: Box.
Weitere Produktangebote TEN 60-2425WIR nach Preis ab 175.08 EUR bis 225.05 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TEN 60-2425WIR | Traco Power |
Description: DC DC CONVERTER +/-24V 60W Voltage - Isolation: 3 kV Number of Outputs: 2 Power (Watts): 60 W Part Status: Active Voltage - Output 2: -24V Voltage - Output 1: 24V Voltage - Input (Min): 9V Current - Output (Max): 1.25A, 1.25A Efficiency: 92% Voltage - Input (Max): 36V Applications: ITE (Commercial), Railway Operating Temperature: -40°C ~ 85°C (With Derating) Type: Isolated Module Mounting Type: Through Hole Size / Dimension: 2.00" L x 1.60" W x 1.00" H (50.8mm x 40.7mm x 25.4mm) Package / Case: 8-DIP Module Features: Adjustable Output, Remote On/Off Packaging: Box |
auf Bestellung 14 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
TEN 60-2425WIR | TRACO Power |
Isolated DC/DC Converters - Through Hole 9-36Vin +/-24V 1250mA 60W Iso |
auf Bestellung 5 Stücke: Lieferzeit 10-14 Tag (e) |
|
| TEN 60-2425WIR |
|
Hersteller: Traco Power
Description: DC DC CONVERTER +/-24V 60W
Voltage - Isolation: 3 kV
Number of Outputs: 2
Power (Watts): 60 W
Part Status: Active
Voltage - Output 2: -24V
Voltage - Output 1: 24V
Voltage - Input (Min): 9V
Current - Output (Max): 1.25A, 1.25A
Efficiency: 92%
Voltage - Input (Max): 36V
Applications: ITE (Commercial), Railway
Operating Temperature: -40°C ~ 85°C (With Derating)
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 2.00" L x 1.60" W x 1.00" H (50.8mm x 40.7mm x 25.4mm)
Package / Case: 8-DIP Module
Features: Adjustable Output, Remote On/Off
Packaging: Box
Description: DC DC CONVERTER +/-24V 60W
Voltage - Isolation: 3 kV
Number of Outputs: 2
Power (Watts): 60 W
Part Status: Active
Voltage - Output 2: -24V
Voltage - Output 1: 24V
Voltage - Input (Min): 9V
Current - Output (Max): 1.25A, 1.25A
Efficiency: 92%
Voltage - Input (Max): 36V
Applications: ITE (Commercial), Railway
Operating Temperature: -40°C ~ 85°C (With Derating)
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 2.00" L x 1.60" W x 1.00" H (50.8mm x 40.7mm x 25.4mm)
Package / Case: 8-DIP Module
Features: Adjustable Output, Remote On/Off
Packaging: Box
auf Bestellung 14 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 216.09 EUR |
| 10+ | 212.66 EUR |
| TEN 60-2425WIR |
|
Hersteller: TRACO Power
Isolated DC/DC Converters - Through Hole 9-36Vin +/-24V 1250mA 60W Iso
Isolated DC/DC Converters - Through Hole 9-36Vin +/-24V 1250mA 60W Iso
auf Bestellung 5 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 225.05 EUR |
| 10+ | 194.64 EUR |
| 20+ | 192.74 EUR |
| 50+ | 187.65 EUR |
| 100+ | 175.08 EUR |
