Produkte > TRACO POWER > TEN 60-7225WIR

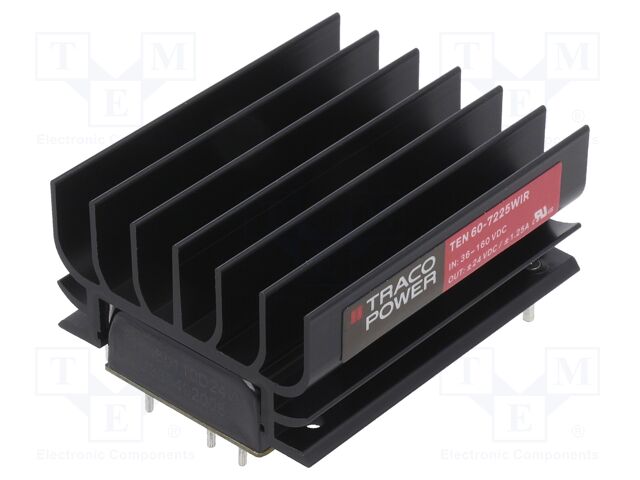

TEN 60-7225WIR

TEN 60-7225WIR TRACO POWER


pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB8A84153E42380C7&compId=ten60wir_datasheet.pdf?ci_sign=e19fec1fadb7b43296bce6d18dc12ac9127a532c Hersteller: TRACO POWER
Category: DC/DC Converters
Description: Converter: DC/DC; 60W; Uin: 36÷160VDC; Uout: 24VDC; Uout2: -24VDC
Application: railway industry
Power: 60W
Output voltage: 24V DC
Output current: 1.25A
Body dimensions: 50.8x40.7x25.4mm
Protection: voltage drop BOP
Operating temperature: -40...90°C
Number of outputs: 2
Efficiency: 91%
Case: 2"x1"
Insulation voltage: 3kV
Conform to the norm: EN 50155
Input voltage: 36...160V DC
Type of converter: DC/DC
Output voltage 2: -24V DC
Switching frequency: 250kHz
Output current 2: 1.25A
Manufacturer series: TEN 60WIR
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+145.76 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details TEN 60-7225WIR TRACO POWER

Category: DC/DC Converters, Description: Converter: DC/DC; 60W; Uin: 36÷160VDC; Uout: 24VDC; Uout2: -24VDC, Application: railway industry, Power: 60W, Output voltage: 24V DC, Output current: 1.25A, Body dimensions: 50.8x40.7x25.4mm, Protection: voltage drop BOP, Operating temperature: -40...90°C, Number of outputs: 2, Efficiency: 91%, Case: 2"x1", Insulation voltage: 3kV, Conform to the norm: EN 50155, Input voltage: 36...160V DC, Type of converter: DC/DC, Output voltage 2: -24V DC, Switching frequency: 250kHz, Output current 2: 1.25A, Manufacturer series: TEN 60WIR, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote TEN 60-7225WIR nach Preis ab 145.76 EUR bis 253.47 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
TEN 60-7225WIR TEN 60-7225WIR Hersteller : TRACO POWER pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB8A84153E42380C7&compId=ten60wir_datasheet.pdf?ci_sign=e19fec1fadb7b43296bce6d18dc12ac9127a532c Category: DC/DC Converters
Description: Converter: DC/DC; 60W; Uin: 36÷160VDC; Uout: 24VDC; Uout2: -24VDC
Application: railway industry
Power: 60W
Output voltage: 24V DC
Output current: 1.25A
Body dimensions: 50.8x40.7x25.4mm
Protection: voltage drop BOP
Operating temperature: -40...90°C
Number of outputs: 2
Efficiency: 91%
Case: 2"x1"
Insulation voltage: 3kV
Conform to the norm: EN 50155
Input voltage: 36...160V DC
Type of converter: DC/DC
Output voltage 2: -24V DC
Switching frequency: 250kHz
Output current 2: 1.25A
Manufacturer series: TEN 60WIR
auf Bestellung 3 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+145.76 EUR
Im Einkaufswagen  Stück im Wert von  UAH
TEN 60-7225WIR TEN 60-7225WIR Hersteller : TRACO Power ten60wir_datasheet-1879696.pdf Isolated DC/DC Converters - Through Hole 36-160Vin +/-24V 1250mA 60W Iso
auf Bestellung 13 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+233.41 EUR
5+232.36 EUR
10+229.68 EUR
30+211.31 EUR
50+206.87 EUR
100+197.58 EUR
Im Einkaufswagen  Stück im Wert von  UAH
TEN 60-7225WIR TEN 60-7225WIR Hersteller : Traco Power ten60wir.pdf Description: DC DC CONVERTER +/-24V 60W
Packaging: Box
Features: Adjustable Output, Remote On/Off
Package / Case: 8-DIP Module
Size / Dimension: 2.00" L x 1.60" W x 1.00" H (50.8mm x 40.7mm x 25.4mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C (With Derating)
Applications: ITE (Commercial), Railway
Voltage - Input (Max): 160V
Efficiency: 91%
Current - Output (Max): 1.25A, 1.25A
Voltage - Input (Min): 36V
Voltage - Output 1: 24V
Voltage - Output 2: -24V
Part Status: Active
Power (Watts): 60 W
Number of Outputs: 2
Voltage - Isolation: 3 kV
auf Bestellung 9 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+250.98 EUR
Im Einkaufswagen  Stück im Wert von  UAH
TEN 60-7225WIR Hersteller : Traco Power ten60wir.pdf Module DC-DC 110VIN 2-OUT 24V/-24V 1.25A/1.25A 60W
auf Bestellung 3 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+253.47 EUR
Im Einkaufswagen  Stück im Wert von  UAH
TEN 60-7225WIR TEN 60-7225WIR Hersteller : Traco Power ten60wir_datasheet.pdf Module DC-DC 110VIN 2-OUT 24V/-24V 1.25A/1.25A 60W 8-Pin
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
