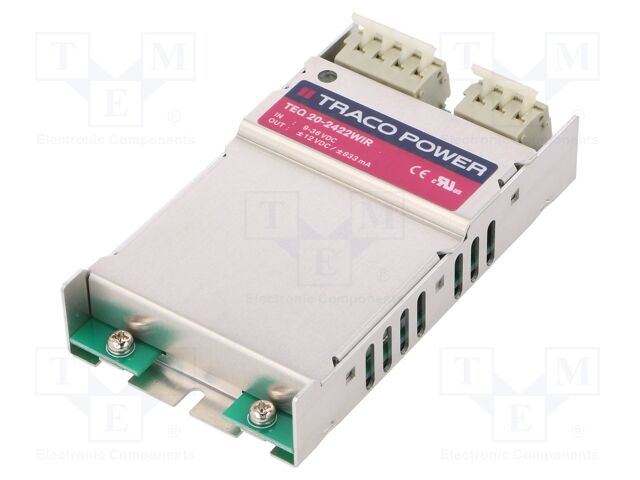

TEQ 20-2422WIR TRACO POWER
Hersteller: TRACO POWERCategory: DC/DC Converters
Description: Converter: DC/DC; 20W; Uin: 9÷36VDC; Uout: 12VDC; Uout2: -12VDC
Power: 20W
Output voltage: 12V DC
Output current: 0.833A
Body dimensions: 103x57.2x26.1mm
Manufacturer series: TEQ 20WIR
Operating temperature: -40...93°C
Protection: anti-overvoltage OVP; overheating OTP; short circuit protection SCP
Efficiency: 87%
Insulation voltage: 2.25kV
Application: railway industry
Input voltage: 9...36V DC
Type of converter: DC/DC
Output voltage 2: -12V DC
Switching frequency: 330kHz
Output current 2: 833mA
Mounting: for building in
Number of outputs: 2
Conform to the norm: EN 50155
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 103.45 EUR |
| 5+ | 102.03 EUR |
| 25+ | 98.46 EUR |
| 100+ | 97.6 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TEQ 20-2422WIR TRACO POWER
Category: DC/DC Converters, Description: Converter: DC/DC; 20W; Uin: 9÷36VDC; Uout: 12VDC; Uout2: -12VDC, Power: 20W, Output voltage: 12V DC, Output current: 0.833A, Body dimensions: 103x57.2x26.1mm, Manufacturer series: TEQ 20WIR, Operating temperature: -40...93°C, Protection: anti-overvoltage OVP; overheating OTP; short circuit protection SCP, Efficiency: 87%, Insulation voltage: 2.25kV, Application: railway industry, Input voltage: 9...36V DC, Type of converter: DC/DC, Output voltage 2: -12V DC, Switching frequency: 330kHz, Output current 2: 833mA, Mounting: for building in, Number of outputs: 2, Conform to the norm: EN 50155, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote TEQ 20-2422WIR nach Preis ab 103.45 EUR bis 242.33 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
TEQ 20-2422WIR | Hersteller : TRACO POWER |
Category: DC/DC Converters Description: Converter: DC/DC; 20W; Uin: 9÷36VDC; Uout: 12VDC; Uout2: -12VDC Power: 20W Output voltage: 12V DC Output current: 0.833A Body dimensions: 103x57.2x26.1mm Manufacturer series: TEQ 20WIR Operating temperature: -40...93°C Protection: anti-overvoltage OVP; overheating OTP; short circuit protection SCP Efficiency: 87% Insulation voltage: 2.25kV Application: railway industry Input voltage: 9...36V DC Type of converter: DC/DC Output voltage 2: -12V DC Switching frequency: 330kHz Output current 2: 833mA Mounting: for building in Number of outputs: 2 Conform to the norm: EN 50155 |
auf Bestellung 2 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
 |
TEQ 20-2422WIR | Hersteller : TRACO Power |
Isolated DC/DC Converters - Chassis Mount 20W 9-36Vin +/-12V 833mA Iso Encap |
auf Bestellung 7 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |

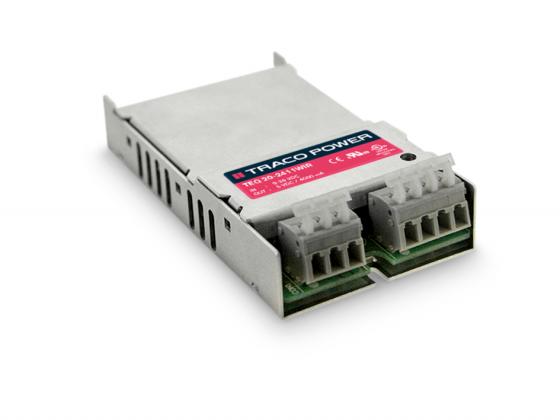

TEQ 20-2422WIR | Hersteller : Traco Power |
Description: DC/DC CONVERTER +/-12V 20W Packaging: Box Power (Watts): 20W Size / Dimension: 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm) Mounting Type: Chassis Mount Type: Enclosed Operating Temperature: -40°C ~ 93°C (With Derating) Applications: ITE (Commercial), Railway Voltage - Input (Max): 36V Approval Agency: CB, CE, cURus Efficiency: 87% Current - Output (Max): 833mA, 833mA Voltage - Input (Min): 9V Voltage - Output 1: 12V Voltage - Output 2: -12V Number of Outputs: 2 Voltage - Isolation: 2.25 kV |
auf Bestellung 4 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
| TEQ 20-2422WIR | Hersteller : Traco Power |
20 Watt DC/DC Module, Railway, 4-1 Input, Chassis Mount, Rugged design, increased shock and vibration resistance, with EMI Filter, Encapsulated, High Power block |
Produkt ist nicht verfügbar |
