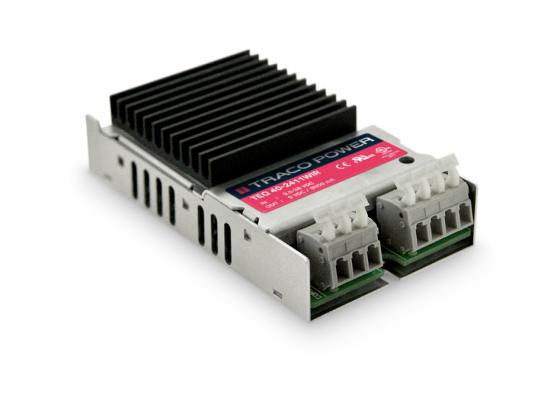

TEQ 40-7225WIR TRACO POWER
Hersteller: TRACO POWER
Category: DC/DC Converters
Description: Converter: DC/DC; 40W; Uin: 43÷160VDC; Uout: 24VDC; Uout2: -24VDC
Application: railway industry
Power: 40W
Output voltage: 24V DC
Output current: 0.83A
Body dimensions: 103x57.2x26.1mm
Manufacturer series: TEQ 40WIR
Protection: anti-overvoltage OVP; overheating OTP; short circuit protection SCP
Operating temperature: -40...93°C
Number of outputs: 2
Efficiency: 90%
Input voltage: 43...160V DC
Insulation voltage: 3kV
Switching frequency: 275kHz
Type of converter: DC/DC
Conform to the norm: EN 50155
Mounting: for building in
Output voltage 2: -24V DC
Output current 2: 0.83A
Produktrezensionen
Produktbewertung abgeben
Technische Details TEQ 40-7225WIR TRACO POWER
Category: DC/DC Converters, Description: Converter: DC/DC; 40W; Uin: 43÷160VDC; Uout: 24VDC; Uout2: -24VDC, Application: railway industry, Power: 40W, Output voltage: 24V DC, Output current: 0.83A, Body dimensions: 103x57.2x26.1mm, Manufacturer series: TEQ 40WIR, Protection: anti-overvoltage OVP; overheating OTP; short circuit protection SCP, Operating temperature: -40...93°C, Number of outputs: 2, Efficiency: 90%, Input voltage: 43...160V DC, Insulation voltage: 3kV, Switching frequency: 275kHz, Type of converter: DC/DC, Conform to the norm: EN 50155, Mounting: for building in, Output voltage 2: -24V DC, Output current 2: 0.83A.
Weitere Produktangebote TEQ 40-7225WIR nach Preis ab 392.93 EUR bis 392.93 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||
|---|---|---|---|---|---|---|---|
| TEQ 40-7225WIR | Traco Power |
Description: DC/DC CONVERTER +/-24V 40W Power (Watts): 40W Packaging: Box Size / Dimension: 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm) Mounting Type: Chassis Mount Type: Enclosed Operating Temperature: -40°C ~ 92°C (With Derating) Applications: ITE (Commercial), Railway Voltage - Input (Max): 160V Approval Agency: CB, CE, cURus Efficiency: 90% Current - Output (Max): 830mA, 830mA Voltage - Input (Min): 43V Voltage - Output 1: 24V Voltage - Output 2: -24V Part Status: Active Number of Outputs: 2 Voltage - Isolation: 3 kV |
auf Bestellung 8 Stücke: Lieferzeit 10-14 Tag (e) |
|
| TEQ 40-7225WIR |
|
Hersteller: Traco Power
Description: DC/DC CONVERTER +/-24V 40W
Power (Watts): 40W
Packaging: Box
Size / Dimension: 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm)
Mounting Type: Chassis Mount
Type: Enclosed
Operating Temperature: -40°C ~ 92°C (With Derating)
Applications: ITE (Commercial), Railway
Voltage - Input (Max): 160V
Approval Agency: CB, CE, cURus
Efficiency: 90%
Current - Output (Max): 830mA, 830mA
Voltage - Input (Min): 43V
Voltage - Output 1: 24V
Voltage - Output 2: -24V
Part Status: Active
Number of Outputs: 2
Voltage - Isolation: 3 kV
Description: DC/DC CONVERTER +/-24V 40W
Power (Watts): 40W
Packaging: Box
Size / Dimension: 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm)
Mounting Type: Chassis Mount
Type: Enclosed
Operating Temperature: -40°C ~ 92°C (With Derating)
Applications: ITE (Commercial), Railway
Voltage - Input (Max): 160V
Approval Agency: CB, CE, cURus
Efficiency: 90%
Current - Output (Max): 830mA, 830mA
Voltage - Input (Min): 43V
Voltage - Output 1: 24V
Voltage - Output 2: -24V
Part Status: Active
Number of Outputs: 2
Voltage - Isolation: 3 kV
auf Bestellung 8 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 392.93 EUR |
