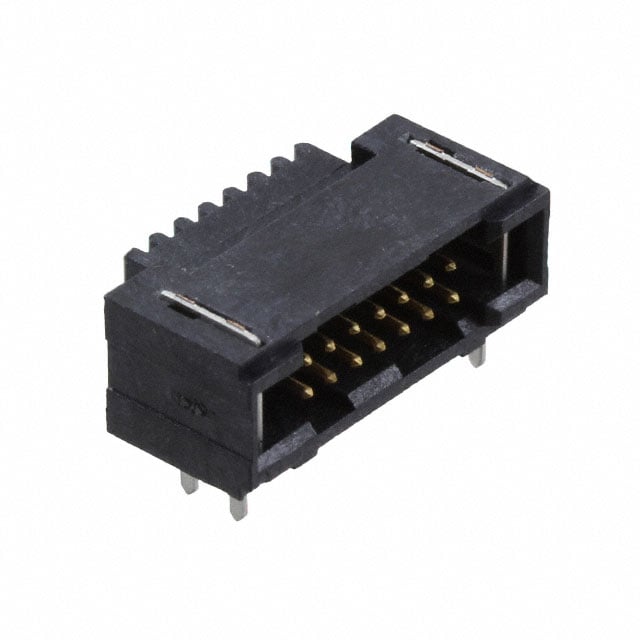

TFM-107-02-L-DH-TR Samtec Inc.
Hersteller: Samtec Inc.
Description: CONN HEADER SMD R/A 14POS 1.27MM
Packaging: Tape & Reel (TR)
Connector Type: Header
Voltage Rating: 250VAC
Current Rating (Amps): 3.2A per Contact
Mounting Type: Surface Mount, Right Angle
Number of Positions: 14
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.225" (5.72mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.150" (3.81mm)
| Anzahl | Preis |
|---|---|
| 275+ | 3.18 EUR |
| 550+ | 2.91 EUR |
| 1375+ | 2.65 EUR |
| 2750+ | 2.4 EUR |
| 6875+ | 2.28 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TFM-107-02-L-DH-TR Samtec Inc.
Description: CONN HEADER SMD R/A 14POS 1.27MM, Packaging: Tape & Reel (TR), Connector Type: Header, Voltage Rating: 250VAC, Current Rating (Amps): 3.2A per Contact, Mounting Type: Surface Mount, Right Angle, Number of Positions: 14, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.225" (5.72mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.150" (3.81mm).
Weitere Produktangebote TFM-107-02-L-DH-TR nach Preis ab 2.75 EUR bis 4.1 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TFM-107-02-L-DH-TR | Samtec |
Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips |
auf Bestellung 5166 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
|
|
TFM-107-02-L-DH-TR | Samtec Inc. |
Description: CONN HEADER SMD R/A 14POS 1.27MM Packaging: Cut Tape (CT) Connector Type: Header Voltage Rating: 250VAC Current Rating (Amps): 3.2A per Contact Mounting Type: Surface Mount, Right Angle Number of Positions: 14 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.225" (5.72mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.150" (3.81mm) |
auf Bestellung 13906 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
TFM-107-02-L-DH-TR | SAMTEC |
Description: SAMTEC - TFM-107-02-L-DH-TR - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 14 Kontakt(e) tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze isCanonical: Y usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 14Kontakt(e) euEccn: NLR Steckverbindersysteme: Board-to-Board, Wire-to-Board Steckverbinder: PCB-Stiftleiste productTraceability: No Kontaktanschluss: Oberflächenmontage, abgewinkelt Anzahl der Reihen: 2Reihe(n) Rastermaß: 1.27mm SVHC: No SVHC (04-Feb-2026) |
auf Bestellung 60 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| TFM-107-02-L-DH-TR |
|
Hersteller: Samtec
Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips
Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips
auf Bestellung 5166 Stücke:
Lieferzeit 10-14 Tag (e)| Anzahl | Preis |
|---|---|
| 1+ | 4.01 EUR |
| 25+ | 3.75 EUR |
| 50+ | 3.43 EUR |
| 100+ | 3.19 EUR |
| 275+ | 2.9 EUR |
| 825+ | 2.75 EUR |
| TFM-107-02-L-DH-TR |
|
Hersteller: Samtec Inc.
Description: CONN HEADER SMD R/A 14POS 1.27MM
Packaging: Cut Tape (CT)
Connector Type: Header
Voltage Rating: 250VAC
Current Rating (Amps): 3.2A per Contact
Mounting Type: Surface Mount, Right Angle
Number of Positions: 14
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.225" (5.72mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.150" (3.81mm)
Description: CONN HEADER SMD R/A 14POS 1.27MM
Packaging: Cut Tape (CT)
Connector Type: Header
Voltage Rating: 250VAC
Current Rating (Amps): 3.2A per Contact
Mounting Type: Surface Mount, Right Angle
Number of Positions: 14
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.225" (5.72mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.150" (3.81mm)
auf Bestellung 13906 Stücke:
Lieferzeit 10-14 Tag (e)| Anzahl | Preis |
|---|---|
| 5+ | 4.1 EUR |
| 25+ | 3.76 EUR |
| 50+ | 3.44 EUR |
| 100+ | 3.28 EUR |
| TFM-107-02-L-DH-TR |
|
Hersteller: SAMTEC
Description: SAMTEC - TFM-107-02-L-DH-TR - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 14 Kontakt(e)
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 14Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Steckverbinder: PCB-Stiftleiste
productTraceability: No
Kontaktanschluss: Oberflächenmontage, abgewinkelt
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 1.27mm
SVHC: No SVHC (04-Feb-2026)
Description: SAMTEC - TFM-107-02-L-DH-TR - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 14 Kontakt(e)
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 14Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Steckverbinder: PCB-Stiftleiste
productTraceability: No
Kontaktanschluss: Oberflächenmontage, abgewinkelt
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 1.27mm
SVHC: No SVHC (04-Feb-2026)
auf Bestellung 60 Stücke:
Lieferzeit 14-21 Tag (e)Im Einkaufswagen Stück im Wert von UAH
