Produkte > SAMTEC INC. > TFM-110-02-S-D-A-P-TR

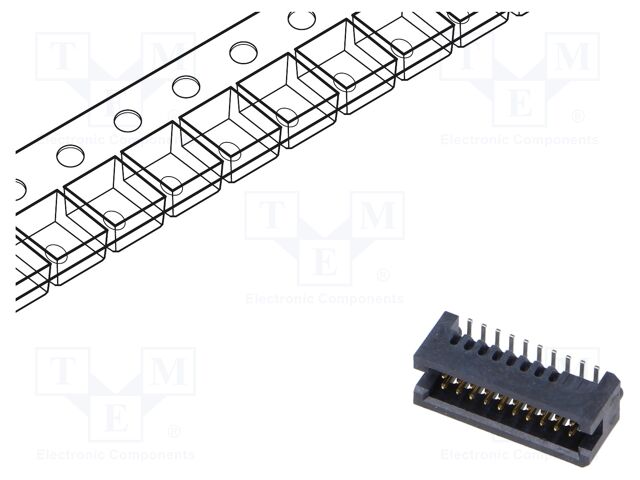

TFM-110-02-S-D-A-P-TR

TFM-110-02-S-D-A-P-TR Samtec Inc.

tfm-1xx-xx-x-dh-xx-mkt.pdf Hersteller: Samtec Inc.
Description: CONN HEADER SMD 20POS 1.27MM
Features: Board Guide, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Header
Voltage Rating: 275VAC
Current Rating (Amps): 2.9A per Contact
Mounting Type: Surface Mount
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.131" (3.33mm)
auf Bestellung 12100 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
550+5.75 EUR
Mindestbestellmenge: 550
Produktrezensionen
Produktbewertung abgeben

Technische Details TFM-110-02-S-D-A-P-TR Samtec Inc.

Description: CONN HEADER SMD 20POS 1.27MM, Features: Board Guide, Pick and Place, Packaging: Tape & Reel (TR), Connector Type: Header, Voltage Rating: 275VAC, Current Rating (Amps): 2.9A per Contact, Mounting Type: Surface Mount, Number of Positions: 20, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.220" (5.60mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.131" (3.33mm).

Weitere Produktangebote TFM-110-02-S-D-A-P-TR nach Preis ab 5.1 EUR bis 9.59 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis ohne MwSt
TFM-110-02-S-D-A-P-TR TFM-110-02-S-D-A-P-TR Hersteller : Samtec Inc. tfm-1xx-xx-x-dh-xx-mkt.pdf Description: CONN HEADER SMD 20POS 1.27MM
Features: Board Guide, Pick and Place
Packaging: Cut Tape (CT)
Connector Type: Header
Voltage Rating: 275VAC
Current Rating (Amps): 2.9A per Contact
Mounting Type: Surface Mount
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.131" (3.33mm)
auf Bestellung 12550 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
3+6.56 EUR
25+ 6.01 EUR
50+ 5.75 EUR
Mindestbestellmenge: 3
TFM-110-02-S-D-A-P-TR TFM-110-02-S-D-A-P-TR Hersteller : Samtec tfm.pdf Conn Shrouded Header (4 Sides) HDR 20 POS 1.27mm Solder ST Top Entry SMD TIGER EYE™ T/R
auf Bestellung 375 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis ohne MwSt
19+8.24 EUR
25+ 7.15 EUR
50+ 6.21 EUR
100+ 5.41 EUR
250+ 5.1 EUR
Mindestbestellmenge: 19
TFM-110-02-S-D-A-P-TR TFM-110-02-S-D-A-P-TR Hersteller : Samtec tfm-2854663.pdf Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips, .050" Pitch
auf Bestellung 600 Stücke:
Lieferzeit 14-28 Tag (e)
Anzahl Preis ohne MwSt
6+9.59 EUR
25+ 8.81 EUR
50+ 8.37 EUR
100+ 7.54 EUR
550+ 7.07 EUR
1100+ 6.58 EUR
4950+ 6.53 EUR
Mindestbestellmenge: 6
TFM-110-02-S-D-A-P-TR TFM-110-02-S-D-A-P-TR Hersteller : Samtec tfm.pdf Conn Shrouded Header (4 Sides) HDR 20 POS 1.27mm Solder ST Top Entry SMD TIGER EYE™ T/R
Produkt ist nicht verfügbar
TFM-110-02-S-D-A-P-TR TFM-110-02-S-D-A-P-TR Hersteller : Samtec tfm.pdf Conn Shrouded Header (4 Sides) HDR 20 POS 1.27mm Solder ST Top Entry SMD TIGER EYE™ T/R
Produkt ist nicht verfügbar
TFM-110-02-S-D-A-P-TR TFM-110-02-S-D-A-P-TR Hersteller : SAMTEC tfml.pdf Description: SAMTEC - TFM-110-02-S-D-A-P-TR - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 20 Kontakt(e)
tariffCode: 85366930
productTraceability: No
Kontaktüberzug: Vergoldete Kontakte
Kontaktanschluss: Oberflachenmontage
rohsCompliant: YES
Rastermaß: 1.27mm
Anzahl der Kontakte: 20Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Anzahl der Reihen: 2Reihe(n)
Kontaktmaterial: Phosphorbronze
Steckverbinderkragen: Mit Kragen
hazardous: false
rohsPhthalatesCompliant: YES
usEccn: EAR99
SVHC: No SVHC (14-Jun-2023)
Produkt ist nicht verfügbar
