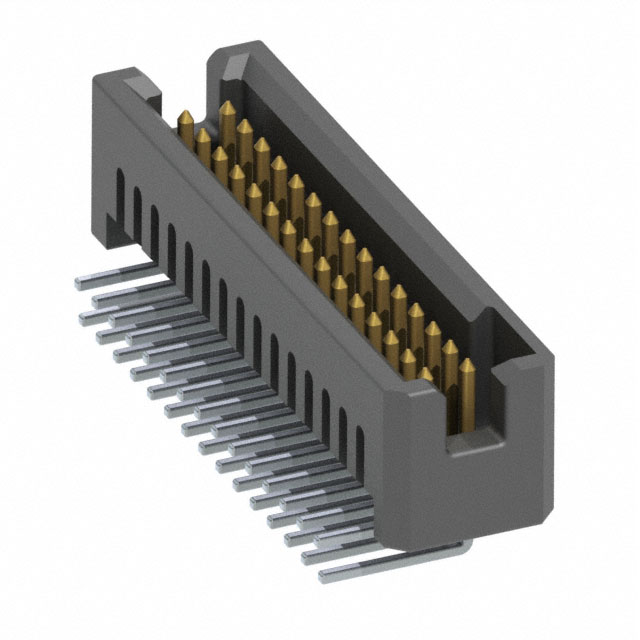

TFM-115-01-L-D-RA Samtec
Hersteller: Samtec
Conn Shrouded Header (4 Sides) HDR 30 POS 1.27mm Solder RA Side Entry Thru-Hole TIGER EYE™ Tube
| Anzahl | Privatkunde |
|---|---|
| 27+ | 6.78 EUR |
| 29+ | 6.01 EUR |
| 50+ | 5.28 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
14-21 Tag (e)
Mindestmenge:
27 Stücke
Produktrezensionen
Produktbewertung abgeben
Technische Details TFM-115-01-L-D-RA Samtec
Description: CONN HEADER R/A 30POS 1.27MM, Packaging: Tube, Connector Type: Header, Voltage Rating: 275VAC, Current Rating (Amps): 3.2A per Contact, Mounting Type: Through Hole, Right Angle, Number of Positions: 30, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.075" (1.91mm), Insulation Height: 0.225" (5.72mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.142" (3.61mm).
Weitere Produktangebote TFM-115-01-L-D-RA nach Preis ab 4.39 EUR bis 7.94 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
TFM-115-01-L-D-RA | Samtec |
Conn Shrouded Header (4 Sides) HDR 30 POS 1.27mm Solder RA Side Entry Thru-Hole TIGER EYE™ Tube |
auf Bestellung 4926 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
 |
TFM-115-01-L-D-RA | Samtec |
Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips |
auf Bestellung 3800 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
TFM-115-01-L-D-RA | Samtec Inc. |
Description: CONN HEADER R/A 30POS 1.27MM Packaging: Tube Connector Type: Header Voltage Rating: 275VAC Current Rating (Amps): 3.2A per Contact Mounting Type: Through Hole, Right Angle Number of Positions: 30 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 15.0µin (0.38µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.075" (1.91mm) Insulation Height: 0.225" (5.72mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.142" (3.61mm) |
auf Bestellung 4855 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
|
|
TFM-115-01-L-D-RA | Samtec |
Conn Shrouded Header (4 Sides) HDR 30 POS 1.27mm Solder RA Side Entry Thru-Hole TIGER EYE™ Tube |
auf Bestellung 25 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
 |
TFM-115-01-L-D-RA | SAMTEC |
Category: Board-to-board connectors Description: Connector: PCB to PCB; socket; male; PIN: 30; TFM; angled; 3.7A; THT Type of connector: PCB to PCB Connector: socket Kind of connector: male Number of pins: 30 Manufacturer series: TFM Spatial orientation: angled Current rating: 3.7A Electrical mounting: THT Mechanical mounting: on PCBs Contacts pitch: 1.27mm Contact plating: gold-plated Mechanical durability: 10000 cycles |
auf Bestellung 18 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH | ||||||||||||||
 |
TFM-115-01-L-D-RA | SAMTEC |
Description: SAMTEC - TFM-115-01-L-D-RA - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 30 Kontakt(e) tariffCode: 85366930 euEccn: NLR rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze isCanonical: Y Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 30Kontakt(e) SVHC: No SVHC (04-Feb-2026) Steckverbindersysteme: Board-to-Board, Wire-to-Board Steckverbinder: PCB-Stiftleiste Produktpalette: Tiger Eye TFM productTraceability: No Kontaktanschluss: Durchsteckmontage, abgewinkelt usEccn: EAR99 Anzahl der Reihen: 2Reihe(n) Rastermaß: 1.27mm |
auf Bestellung 11 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| TFM-115-01-L-D-RA |
|
Hersteller: Samtec
Conn Shrouded Header (4 Sides) HDR 30 POS 1.27mm Solder RA Side Entry Thru-Hole TIGER EYE™ Tube
Conn Shrouded Header (4 Sides) HDR 30 POS 1.27mm Solder RA Side Entry Thru-Hole TIGER EYE™ Tube
auf Bestellung 4926 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 27+ | 6.78 EUR |
| 29+ | 6.14 EUR |
| 50+ | 5.49 EUR |
| TFM-115-01-L-D-RA |
|
Hersteller: Samtec
Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips
Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips
auf Bestellung 3800 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 6.87 EUR |
| 25+ | 6.28 EUR |
| 50+ | 5.76 EUR |
| 100+ | 5.32 EUR |
| 500+ | 5.19 EUR |
| TFM-115-01-L-D-RA |
|
Hersteller: Samtec Inc.
Description: CONN HEADER R/A 30POS 1.27MM
Packaging: Tube
Connector Type: Header
Voltage Rating: 275VAC
Current Rating (Amps): 3.2A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 30
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.075" (1.91mm)
Insulation Height: 0.225" (5.72mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.142" (3.61mm)
Description: CONN HEADER R/A 30POS 1.27MM
Packaging: Tube
Connector Type: Header
Voltage Rating: 275VAC
Current Rating (Amps): 3.2A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 30
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.075" (1.91mm)
Insulation Height: 0.225" (5.72mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.142" (3.61mm)
auf Bestellung 4855 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 3+ | 7.6 EUR |
| 25+ | 6.99 EUR |
| 50+ | 6.39 EUR |
| 100+ | 5.9 EUR |
| 500+ | 5.37 EUR |
| 1000+ | 4.88 EUR |
| 2500+ | 4.39 EUR |
| TFM-115-01-L-D-RA |
|
Hersteller: Samtec
Conn Shrouded Header (4 Sides) HDR 30 POS 1.27mm Solder RA Side Entry Thru-Hole TIGER EYE™ Tube
Conn Shrouded Header (4 Sides) HDR 30 POS 1.27mm Solder RA Side Entry Thru-Hole TIGER EYE™ Tube
auf Bestellung 25 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 25+ | 7.94 EUR |
| TFM-115-01-L-D-RA |
|
Hersteller: SAMTEC
Category: Board-to-board connectors
Description: Connector: PCB to PCB; socket; male; PIN: 30; TFM; angled; 3.7A; THT
Type of connector: PCB to PCB
Connector: socket
Kind of connector: male
Number of pins: 30
Manufacturer series: TFM
Spatial orientation: angled
Current rating: 3.7A
Electrical mounting: THT
Mechanical mounting: on PCBs
Contacts pitch: 1.27mm
Contact plating: gold-plated
Mechanical durability: 10000 cycles
Category: Board-to-board connectors
Description: Connector: PCB to PCB; socket; male; PIN: 30; TFM; angled; 3.7A; THT
Type of connector: PCB to PCB
Connector: socket
Kind of connector: male
Number of pins: 30
Manufacturer series: TFM
Spatial orientation: angled
Current rating: 3.7A
Electrical mounting: THT
Mechanical mounting: on PCBs
Contacts pitch: 1.27mm
Contact plating: gold-plated
Mechanical durability: 10000 cycles
auf Bestellung 18 Stücke:
Lieferzeit 14-21 Tag (e)
| TFM-115-01-L-D-RA |
|
Hersteller: SAMTEC
Description: SAMTEC - TFM-115-01-L-D-RA - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 30 Kontakt(e)
tariffCode: 85366930
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 30Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: Tiger Eye TFM
productTraceability: No
Kontaktanschluss: Durchsteckmontage, abgewinkelt
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 1.27mm
Description: SAMTEC - TFM-115-01-L-D-RA - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 30 Kontakt(e)
tariffCode: 85366930
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 30Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: Tiger Eye TFM
productTraceability: No
Kontaktanschluss: Durchsteckmontage, abgewinkelt
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 1.27mm
auf Bestellung 11 Stücke:
Lieferzeit 14-21 Tag (e)
